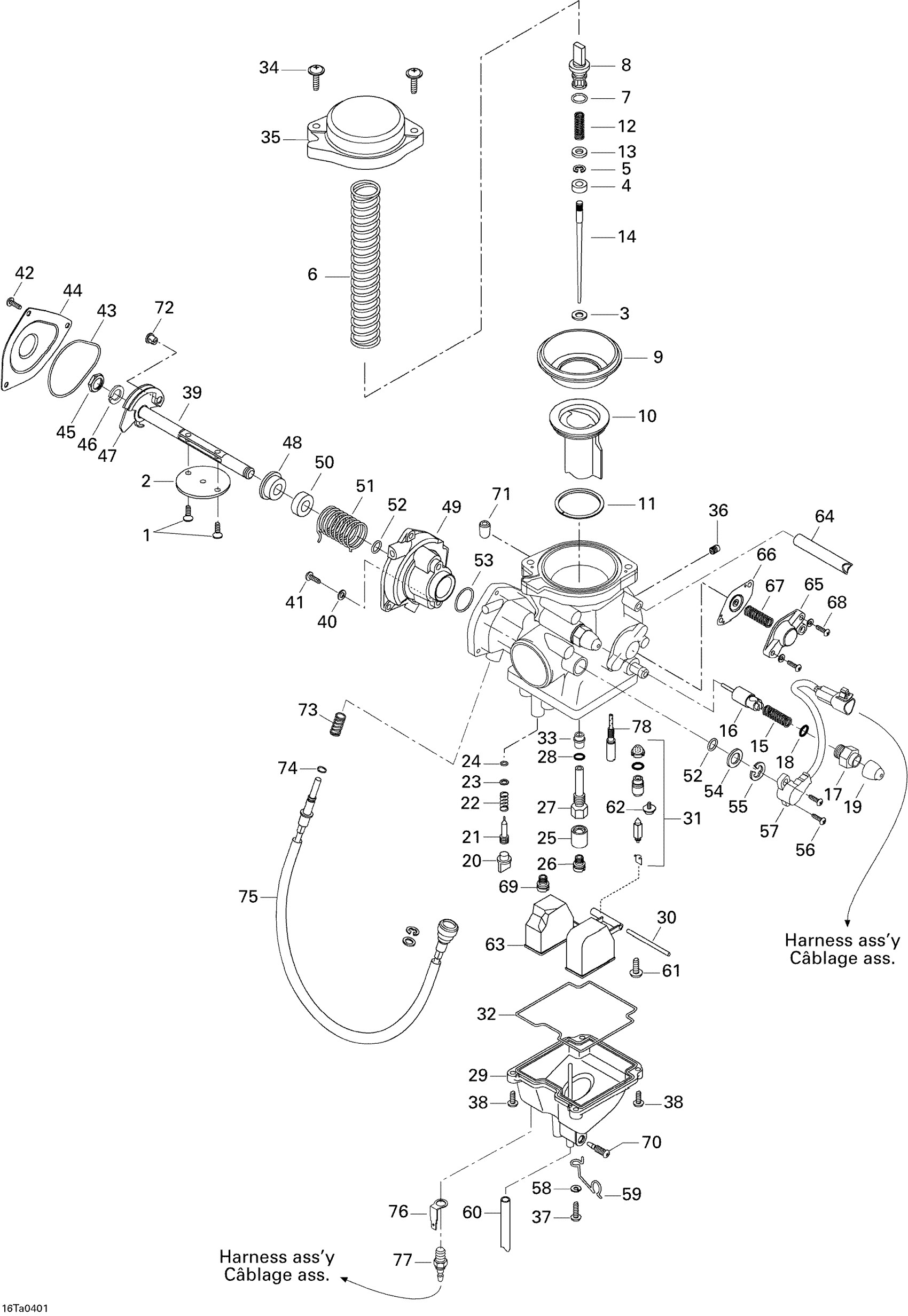

Can-Am Traxter Max Std & Max XT, 2004 02- Carburetor Diagram

#

Description
Price

Carburetor BSR33-28 | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

707200158

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

WASHER - Call your local BRP dealership

707200064

Unavailable

4

RING - Call your local BRP dealership

707200065

Unavailable

5

E-Ring

404152200

$4.14

6

Spring

707200066

Unavailable

7

O-RING - Call your local BRP dealership

270500144

Unavailable

8

HOLDER - Call your local BRP dealership

707200067

Unavailable

9

DIAPHRAGM - Call your local BRP dealership

707200068

Unavailable

10

Piston Valve

707200069

Unavailable

11

Ring

707200070

Unavailable

12

SPRING - Call your local BRP dealership

707200071

Unavailable

13

WASHER - Call your local BRP dealership

707200072

Unavailable

14

Needle J8-5Fiy03-52

707200167

Unavailable

15

SPRING - Call your local BRP dealership

707200144

Unavailable

16

Plunger Ass'y

707200170

Unavailable

17

Holder Guide

707200009

Unavailable

18

O-Ring

404140200

Unavailable

19

CAP - Call your local BRP dealership

707200010

Unavailable

20

CAP - Call your local BRP dealership

707200004

Unavailable

21

ADJUSTER - Call your local BRP dealership

707200077

Unavailable

22

Spring

707200078

Unavailable

23

WASHER - Call your local BRP dealership

707200018

Unavailable

24

O-RING - Call your local BRP dealership

404139900

Unavailable

25

RING - Call your local BRP dealership

707200079

Unavailable

26

MAIN JET 140.0 - Call your local BRP dealership

270500251

Unavailable

27

Jet Holder

707200080

Unavailable

28

O-RING - Call your local BRP dealership

270500119

Unavailable

29

Float Body Ass'y

707200081

Unavailable

30

Pin

404123400

Unavailable

31

Needle Valve 1.0

707200082

$32.99

32

O-Ring

707200083

$17.57

33

Needle Jet

707200084

Unavailable

34

SCREW - Call your local BRP dealership

707200085

Unavailable

35

DIAPHRAGM COVER - Call your local BRP dealership

707200086

Unavailable

36

Pilot Jet 60.0

707200087

Unavailable

37

Screw

404138700

$4.14

38

Screw

707200153

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

SCREW - Call your local BRP dealership

707200091

Unavailable

43

O-RING - Call your local BRP dealership

707200092

Unavailable

44

COVER - Call your local BRP dealership

707200093

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Ring

707200154

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Screw

707200155

Unavailable

57

Sensor Ass'y

707200156

Unavailable

58

Washer

707200101

Unavailable

59

Clip

707200102

Unavailable

60

Hose

707200041

Unavailable

61

SCREW - Call your local BRP dealership

404138600

Unavailable

62

SCREW - Call your local BRP dealership

404161861

$3.89

63

FLOAT ASS?Y - Call your local BRP dealership

707200103

Unavailable

64

Hose

707200104

Unavailable

65

Cover Ass’y

707200105

Unavailable

66

DIAPHRAGM ASS?Y - Call your local BRP dealership

707200106

Unavailable

67

Richer Spring

707200160

Unavailable

68

SCREW - Call your local BRP dealership

404901400

Unavailable

69

Main Jet 50.0

707200152

Unavailable

70

SCREW - Call your local BRP dealership

707200024

Unavailable

71

CAP - Call your local BRP dealership

404154900

Unavailable

72

CABLE GUIDE - Call your local BRP dealership

707200058

Unavailable

73

Spring

404101700

$4.14

74

WASHER - Call your local BRP dealership

707200141

Unavailable

75

ADJUSTER CABLE - Call your local BRP dealership

707200146

Unavailable

76

TERMINAL - Call your local BRP dealership

707200164

Unavailable

77

HEATER ELEMENT - Call your local BRP dealership

707200163

Unavailable

78

Pilot Jet 35.0

707200168

Unavailable
