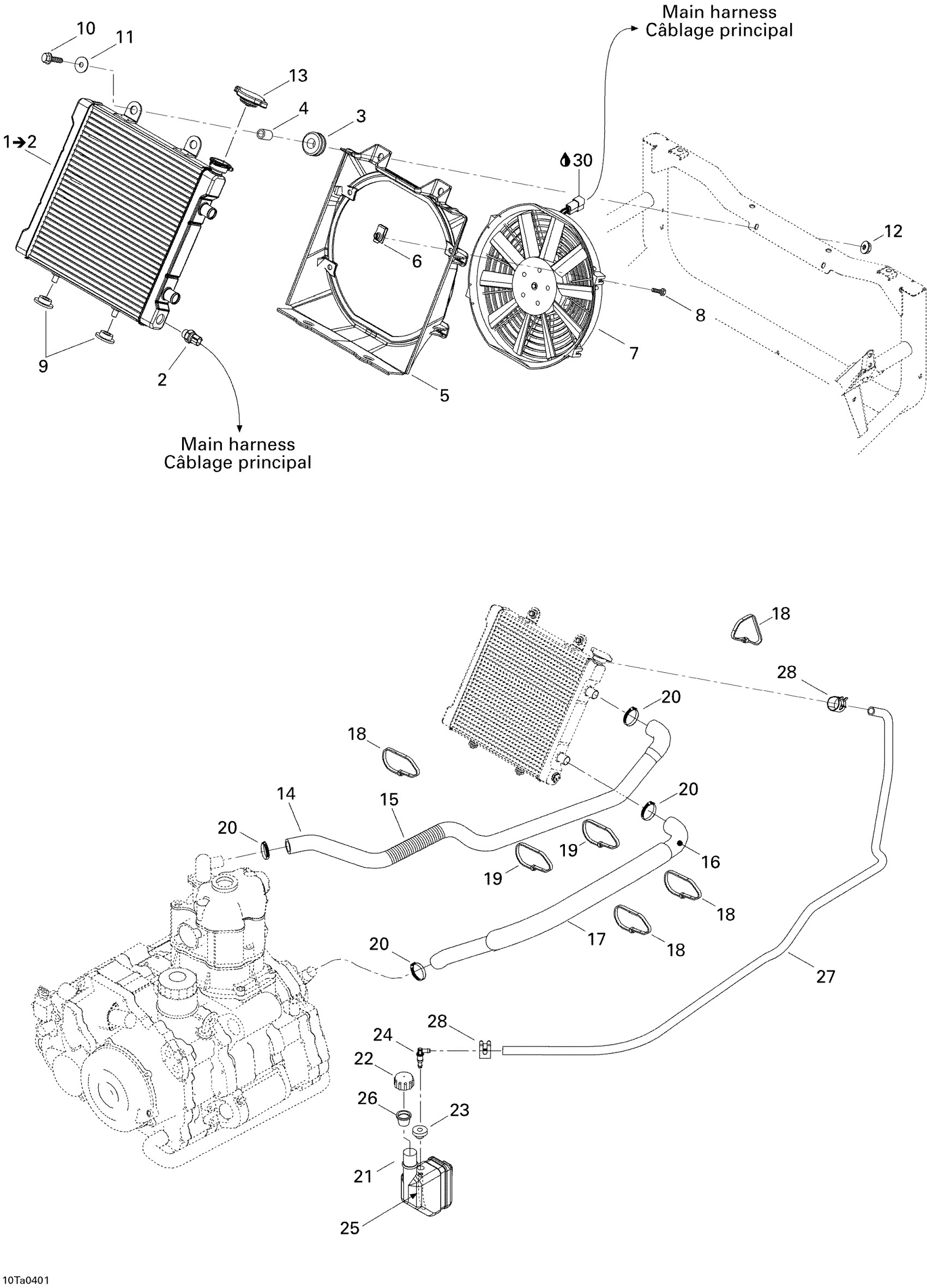

Can-Am Traxter Max Std & Max XT, 2004 01- Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200109

Unavailable

2

Temperature Sensor

715900095

$70.99

3

Grommet

709000582

$4.69

4

Bushing

293900019

$7.73

5

OUTER SHROUD - Call your local BRP dealership

709200111

Unavailable

6

Panel Nut M6 X 1.0

250100198

$2.11

7

FAN ASS'Y - Call your local BRP dealership | Includes 6 to 8

709200112

Unavailable

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

9

Grommet

705003932

$2.89

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

11

Flat Washer

250200082

$0.42

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Radiator Pressure Cap

709200207

$25.49

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200060

Unavailable

15

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

16

OUTLET HOSE - Call your local BRP dealership

709200043

Unavailable

17

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

18

Tie-Rap 180 mm

414115200

$0.11

19

Tie Wrap 368 mm

293750008

$1.04

20

Norma Spring Clamp

293650109

$4.12

21

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

22

TANK CAP - Call your local BRP dealership

709200009

Unavailable

23

Grommet

709200285

$9.69

24

Elbow Male Connector

414580600

$4.23

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

28

Spring Clamp

414554800

$0.88

29

Grommet

709000582

$4.69

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
