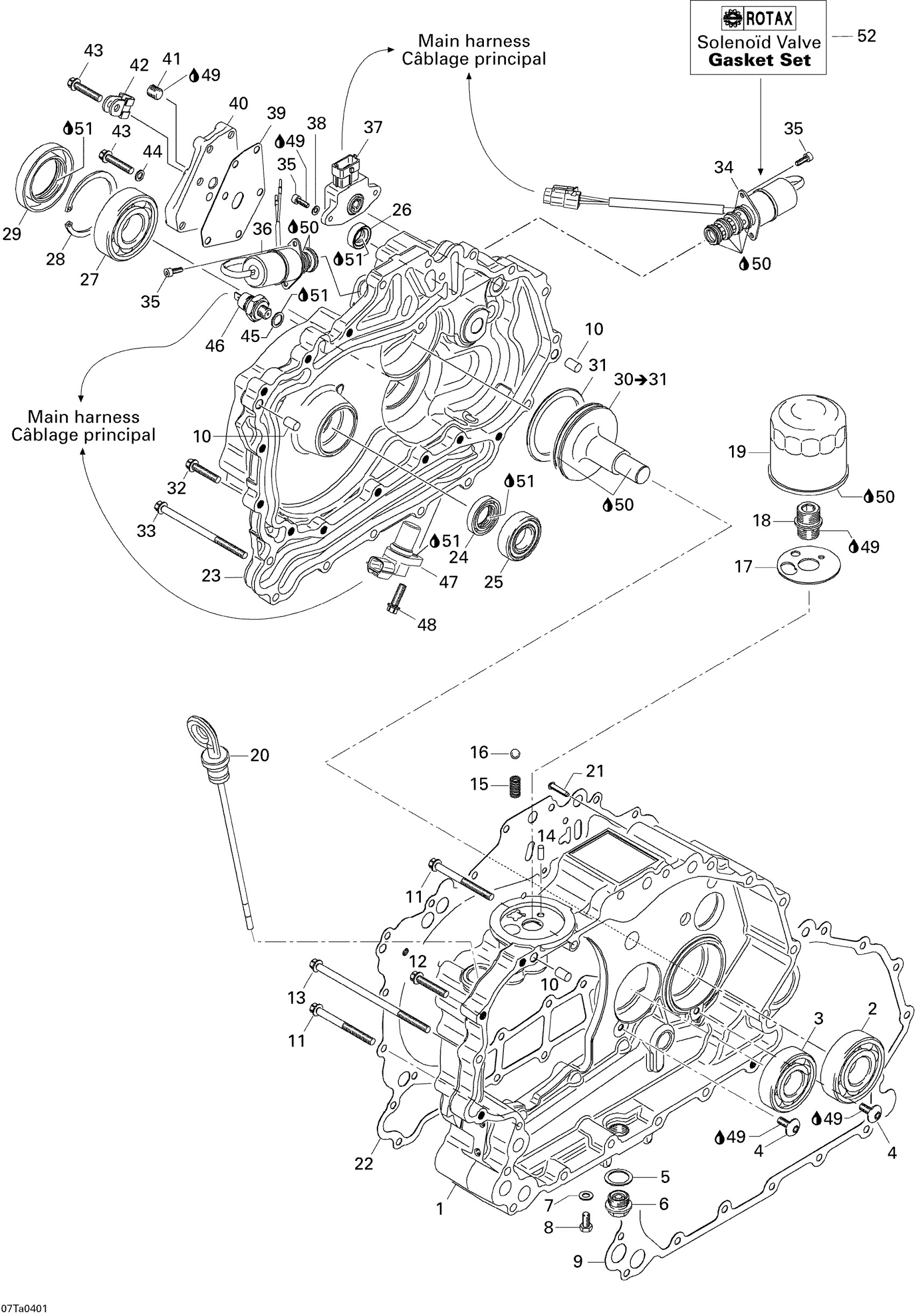

Can-Am Traxter Max Std & Max XT, 2004 01- Clutch Housing And Cover Diagram

#

Description
Price

1

Clutch Housing

420211921

Unavailable

2

Ball Bearing

420932822

$30.49

3

BALL BEARING 63/22 - Call your local BRP dealership

420632200

Unavailable

4

SCREW M6 X 13 - Call your local BRP dealership

420241531

Unavailable

5

Crush Washer

420552280

$3.70

6

Drain Plug M18 X 1.5

420840278

$23.99

7

Sealing Washer

404146600

$2.97

8

Hex. Flange Screw M6 X 16

420241751

Unavailable

9

GASKET, CLUTCH HOUSING - Call your local BRP dealership

420650582

Unavailable

10

Center Pin 8 X 12

420632010

$4.01

11

Hex. Flange Screw M6 X 70

420940576

Unavailable

12

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

420941126

Unavailable

13

Hex. Flange Screw M6 X 130

420640371

Unavailable

14

NEEDLE PIN - Call your local BRP dealership

420232710

Unavailable

15

Spring

420238050

Unavailable

16

BALL - Call your local BRP dealership

420232370

Unavailable

17

OIL FILTER WASHER - Call your local BRP dealership

420627370

Unavailable

18

Oil Filter Nipple

420924420

Unavailable

19

Filtre Huile * Filter Oil

420256623

$13.77

20

OIL DIPSTICK - Call your local BRP dealership

420256610

Unavailable

21

Groove Pin M4 X 20

420229170

Unavailable

22

GASKET, CLUTCH COVER - Call your local BRP dealership

420650592

Unavailable

23

Clutch Cover

420211811

Unavailable

24

Oil Seal

420930392

$15.81

25

Ball Bearing 6304

420232190

Unavailable

26

Oil Seal

420250455

$17.38

27

Ball Bearing

420932822

$30.49

28

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

29

Oil Seal

420650682

$19.49

30

DISENGAGING PISTON - Call your local BRP dealership | Includes 30 to 31

420257056

Unavailable

31

K-GROOVED RING - Call your local BRP dealership

420650550

Unavailable

32

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

33

Hex. Flange Screw M6 X 100

420640361

Unavailable

34

Solenoïd Valve

420256550

Unavailable

35

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

36

Pressure Valve

420256560

Unavailable

37

POTENTIOMETER, SUB TRANSMISSION - Call your local BRP dealership

420265600

Unavailable

38

Flat Washer 4

420244072

$1.01

39

GASKET - Call your local BRP dealership

420650620

Unavailable

40

Oil Duct Cover

420211935

Unavailable

41

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

42

Open Clamp

414176000

$1.99

43

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

44

Seal Washer

420230415

$1.79

45

Oil Seal

420230150

$2.85

46

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable

47

Speed Sensor

420265723

$109.99

48

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

49

Loctite 243, 10 ml

293800060

$21.49

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Grease, Super Lube

293550030

$28.99

52

SOLENOID VALVE GASKET SET - Call your local BRP dealership

420296375

Unavailable
