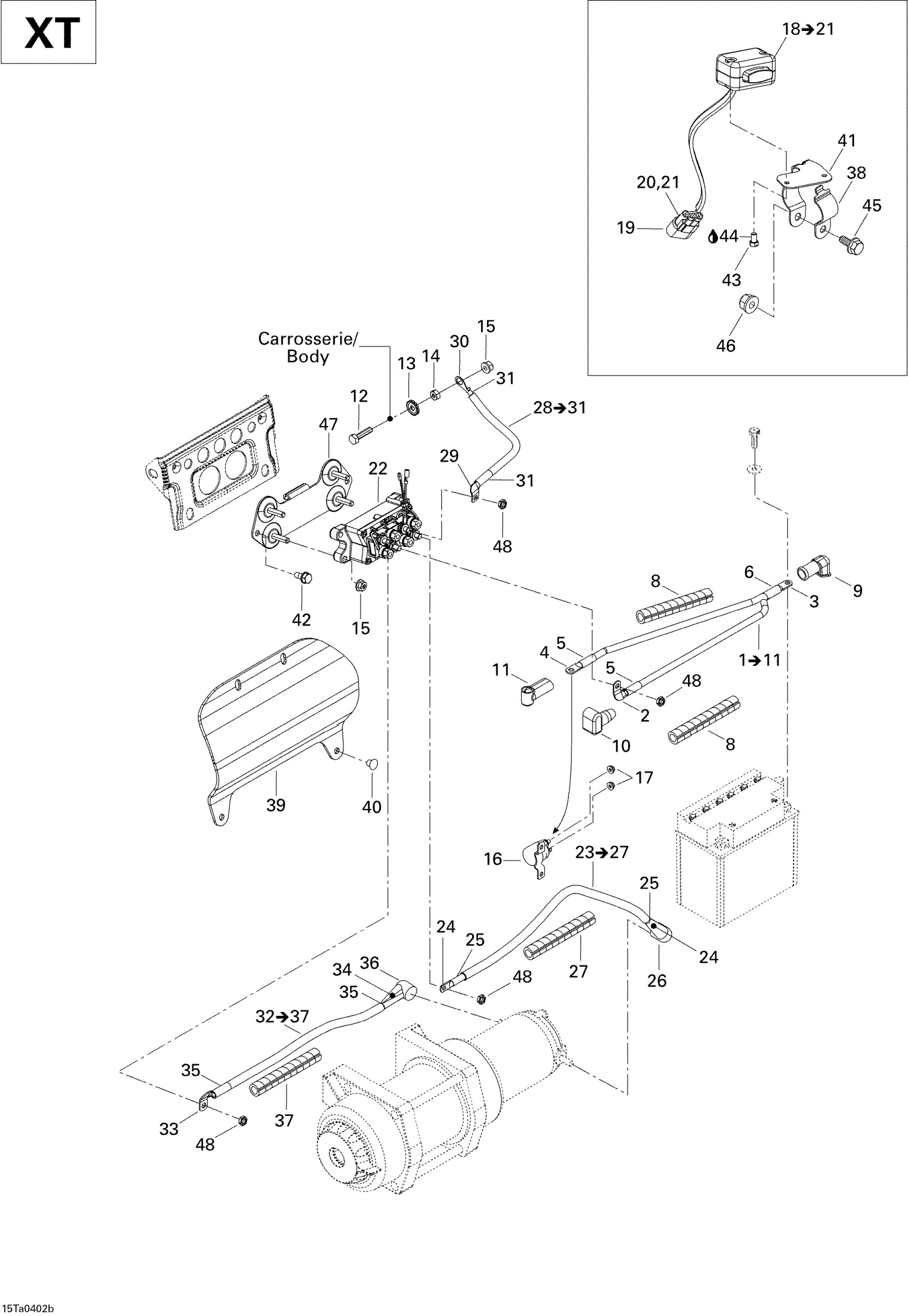

Can-Am Traxter Auto Std & XT, 2004 10- Electrical Accessories (XT) Diagram

#

Description
Price

1

Battery Starter Relay Cable Ass'y | Includes 1 to 10

710000442

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$78.99

6

Shrink Tubing | XT Models

275500578

Unavailable

7

Coding Tape, Red

710000488

Unavailable

8

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

9

Protector Cap | STD Models

710001829

$9.95

10

Protector Cap | STD Models

710000523

Unavailable

11

Protector Cap

710000527

Unavailable

12

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

13

External Serrated Lock Washer 6 mm

234461608

$1.15

14

Hex. Nut M6

232061414

$0.53

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Starter Relay

515176011

$62.49

17

Elastic Stop Nut M6

232561414

$0.55

18

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

19

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

20

Male Terminal | XT Models

278000222

$3.19

21

Wire Seal

278001065

$7.69

22

Winch Solenoid | XT Models

710001000

$121.99

23

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

24

Flat Open Barel 6.6 mm

710000479

Unavailable

25

Was 710000483 Heat Shrink Tubing

219704447

$78.99

26

Protector Cap

710000494

Unavailable

27

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

28

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

29

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

30

Flat Open Barel 6.6 mm

710000479

Unavailable

31

Was 710000483 Heat Shrink Tubing

219704447

$78.99

32

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

33

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

34

Flat Open Barel 6.6 mm

710000479

Unavailable

35

Was 710000483 Heat Shrink Tubing

219704447

$78.99

36

Protector Cap

710000494

Unavailable

37

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

38

Collar

710000566

Unavailable

39

Protector Pad

710000511

Unavailable

40

Black, Dart

293730011

$0.99

41

Support, Black

710000564

Unavailable

42

Hex. Forming Screw M6 X 10

210261050

$1.69

43

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

44

Loctite 243, 10 ml

293800060

$21.49

45

Hex. Flange Screw M6 X 16

207661654

$2.11

46

Hex. Flange Elastic Nut M6

233261494

$1.58

47

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

Unavailable

48

Elastic Stop Nut M6

232561414

$0.55
