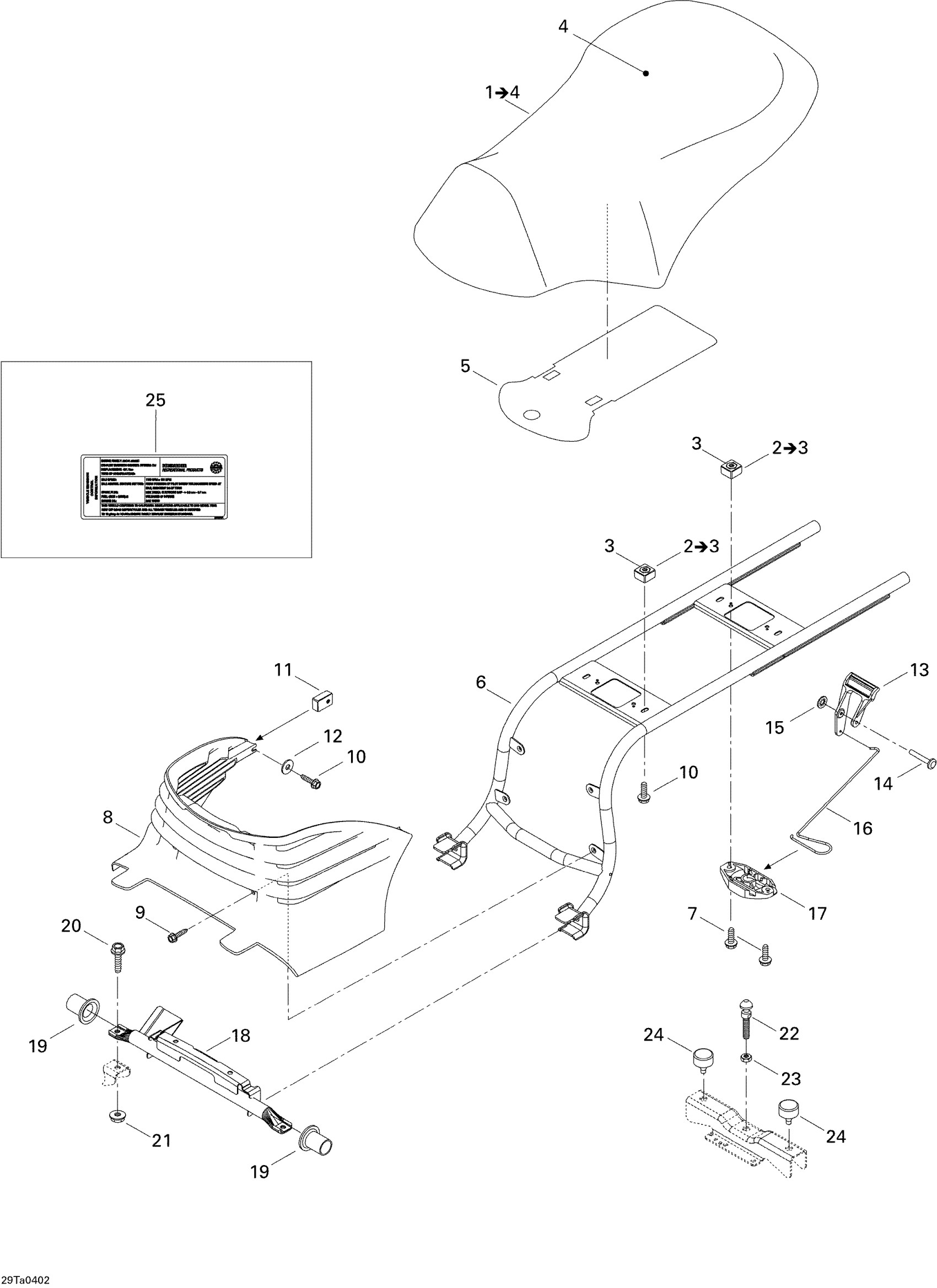

Can-Am Traxter Auto Std & XT, 2004 09- Seat Diagram

#

Description
Price

1

Seat Ass'y | INCLUDES ITEMS 1 TO 4

708000232

Unavailable

2

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

3

Elastic Stop Nut M6

232561414

$0.55

4

Seat Cover

708000233

Unavailable

5

Reflective Sheet

708000160

Unavailable

6

Seat Support, Black

708000003

Unavailable

7

Hex. Flange Screw M6 X 25

207662544

$0.64

8

Engine Cover

705000879

Unavailable

9

Hex. Forming Screw M6 X 10

210261050

$1.69

10

Hex. Flange Screw M6 X 16

207661644

$0.74

11

Nut Housing M6

708000042

Unavailable

12

Flat Washer

224061201

$1.37

13

Lever Latch

708000010

Unavailable

14

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

15

Push Nut

389804300

$0.53

16

SPRING - Call your local BRP dealership

708000015

Unavailable

17

Latch Base

708000034

Unavailable

18

Seat Pivot, Black

708000044

Unavailable

19

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

20

Hex. Flange Screw M8 X 20

207682044

$1.15

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

23

Hex. Jam Nut M10

232100600

$2.22

24

Rubber Stopper

708000758

$12.99

25

Emission Label

704900625

Unavailable
