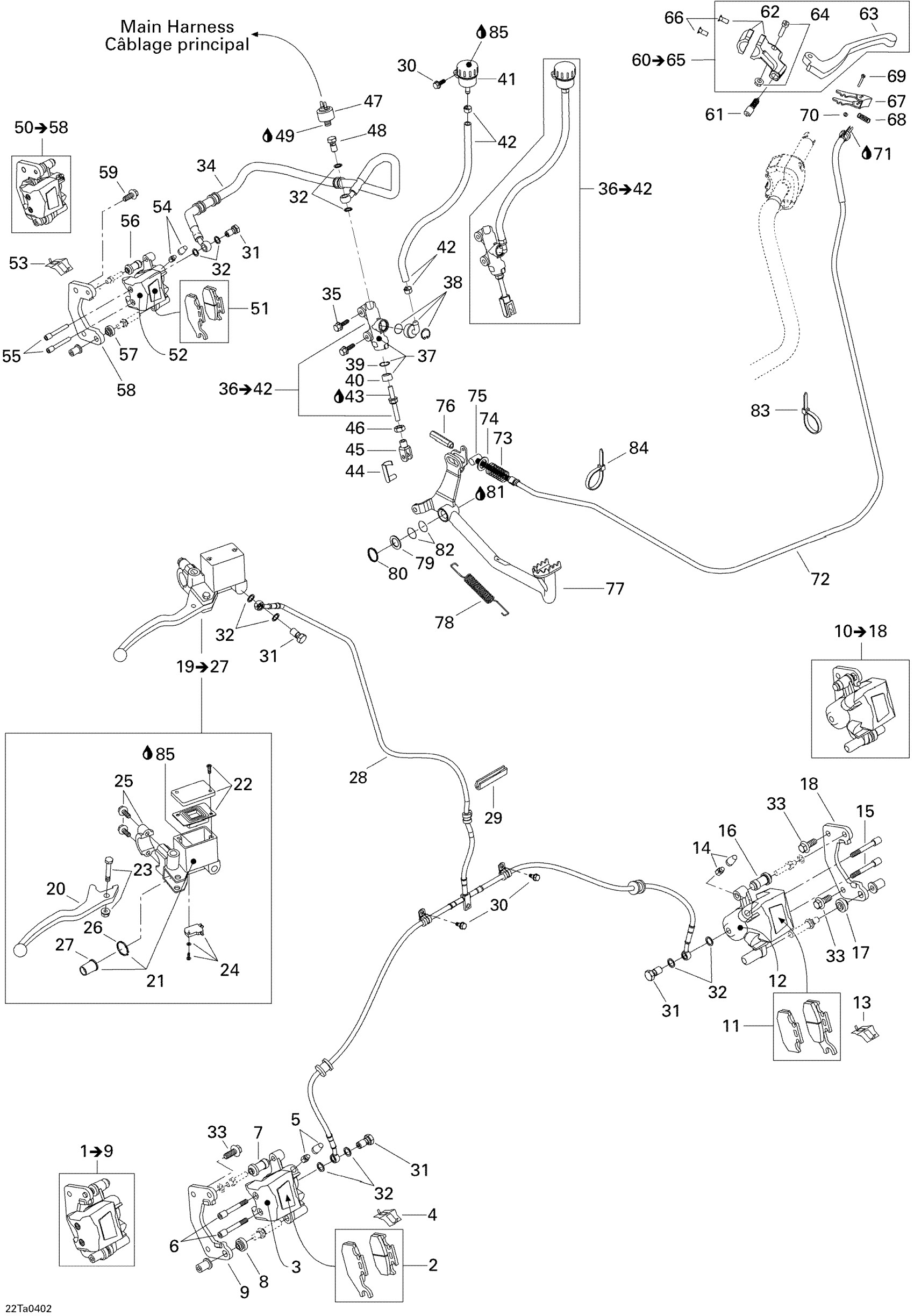

Can-Am Traxter Auto Std & XT, 2004 06- Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Lining Support

705600149

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Lining Support

705600149

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

21

PISTON KIT - Call your local BRP dealership

705600152

Unavailable

22

Cap Set

705600084

$24.99

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600148

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

Brake Hose

705600290

$184.99

29

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

30

Hex. Flange Screw M6 X 16

210261650

$1.67

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

32

Washer

414920600

$1.90

33

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.29

34

Rear Brake Flexible Hose

705600291

Unavailable

Rear Brake Flexible Hose

705600291

Unavailable

35

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

36

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

37

Piston Set

705600063

Unavailable

38

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

39

Circlip

705600068

Unavailable

40

Compression Boot

705600090

Unavailable

41

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

42

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Pin Kit

219702305

$34.99

45

Yoke

705600100

Unavailable

46

Hex. Nut M8

232081414

$0.72

47

Interrupteur *Brake Switch

710001345

$36.99

48

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

49

Was 293800013 Loctite 56765

219704454

$65.99

50

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

51

Brake Pad Kit

705600150

$51.99

52

Piston Set

705600078

$38.99

53

Spring

705600079

$15.81

54

Bleeding Screw

705600080

$16.87

55

Pin Set (2)

705600081

$20.49

56

Compression Boot

705600082

$10.06

57

Compression Boot

705600083

$10.06

58

Lining Support

705600149

Unavailable

59

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

60

Brake Handle | Includes 61 To 66

705600011

Unavailable

61

Cable Screw

250000030

Unavailable

62

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

63

LEVER - Call your local BRP dealership

705600186

Unavailable

64

Pivot Kit

705600187

Unavailable

65

Lever Lock Kit

705600188

Unavailable

66

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

67

LOCK LEVER - Call your local BRP dealership

705600387

Unavailable

68

SPRING - Call your local BRP dealership

705600225

Unavailable

69

Screw M3 X 22

208032291

Unavailable

70

Elastic Stop Nut M3

232531423

$0.55

71

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

72

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

73

SPRING - Call your local BRP dealership

705600144

Unavailable

74

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

75

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

76

NUT - Call your local BRP dealership

705600388

Unavailable

77

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

Unavailable

78

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

79

WASHER - Call your local BRP dealership

503107800

Unavailable

80

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

81

Synthetic Grease, 400 G

293550010

Unavailable

82

O-RING - Call your local BRP dealership

293300053

Unavailable

83

Tie-Rap 180 mm

414115200

$0.11

84

Tie Wrap 368 mm

293750008

$1.04

85

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99
