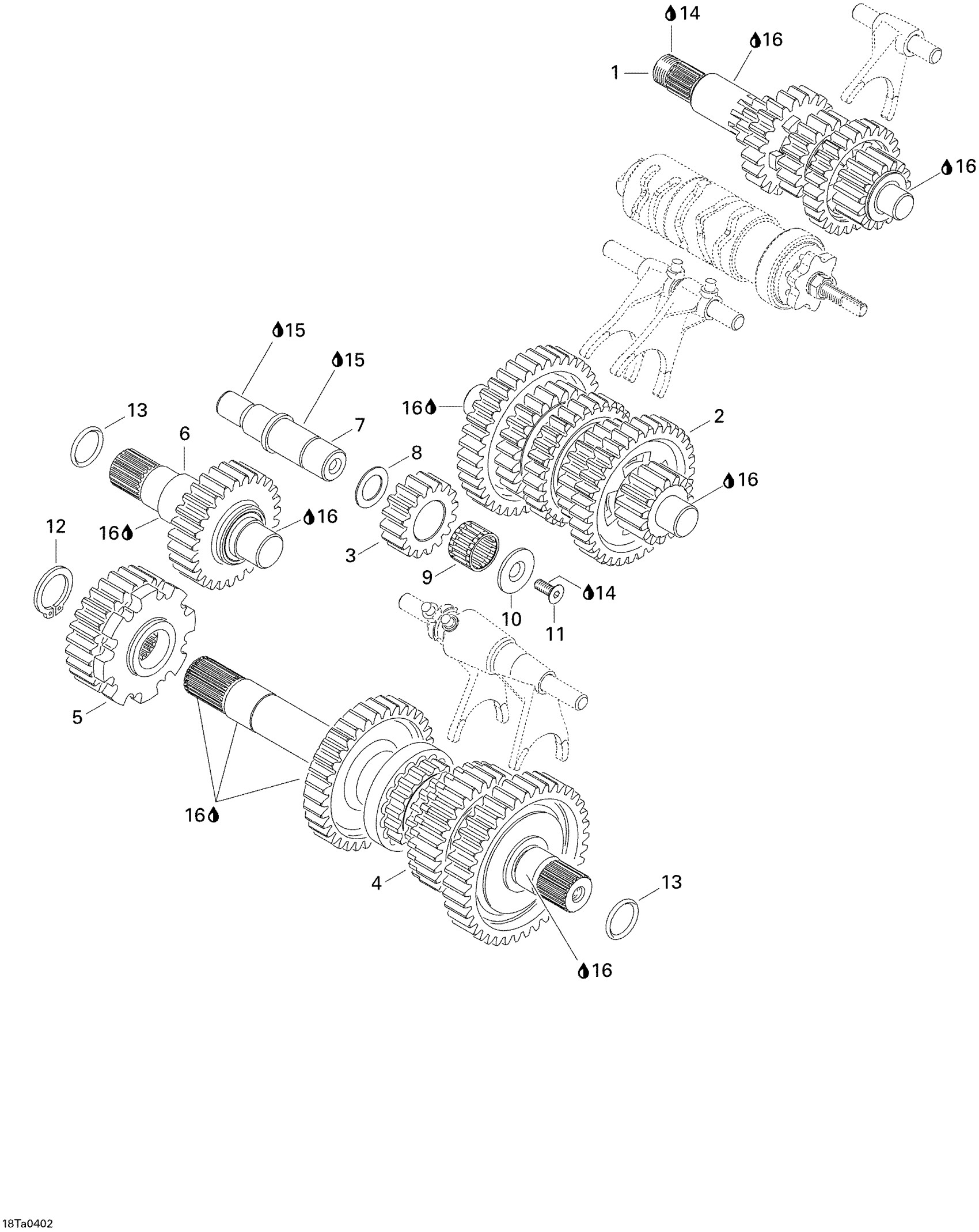

Can-Am Traxter Auto Std & XT, 2004 05- Transmission Diagram

#

Description
Price

1

Countershaft

420220487

Unavailable

2

Main Shaft Ass'y

420220509

Unavailable

3

Sliding Gear

420634890

Unavailable

4

Rear Output Shaft

420220497

Unavailable

5

OUTPUT GEAR 28 TEETH - Call your local BRP dealership

420634925

Unavailable

6

Front Output Shaft

420220522

Unavailable

7

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420220570

Unavailable

8

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

9

NEEDLE CAGE - Call your local BRP dealership

420632230

Unavailable

10

STOP WASHER - Call your local BRP dealership

420244270

Unavailable

11

Screw M6 X 20

420941436

$3.17

12

CIRCLIP - Call your local BRP dealership

420945870

Unavailable

13

O-Ring

420430373

$3.17

14

Loctite 243, 10 ml

293800060

$21.49

15

Molykote G-N, 50 g

420297433

$26.99

16

Petamo Grease, GHY133N, 400 g

420899271

$67.99
