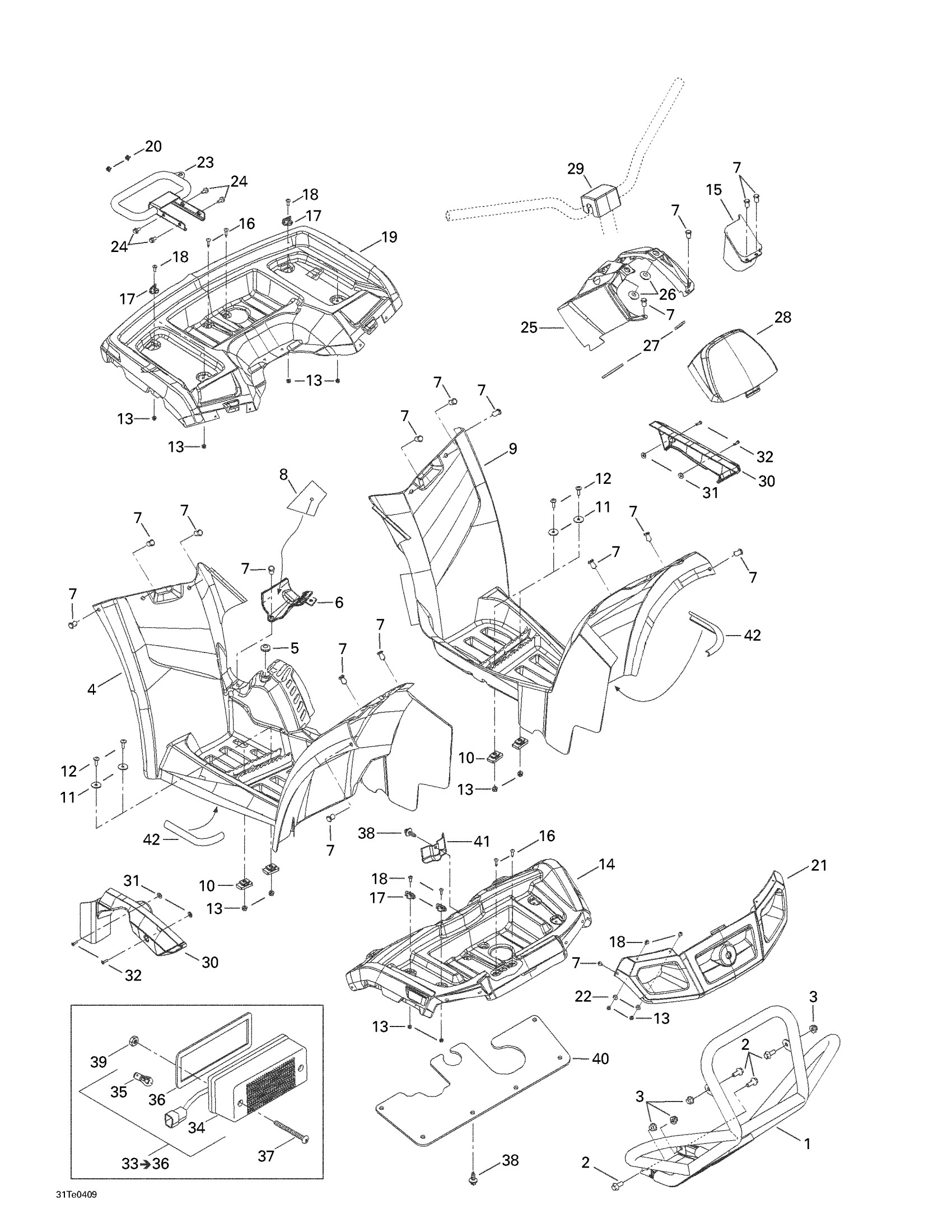

Can-Am Rally 175, 2004 09- Body And Accessories Diagram

#

Description
Price

1

Front Bumper

705000346

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

RH Foot-Well, Laurentian Green B-241

705000899

Unavailable

Viper Red, RH Foot-Well

705000515

Unavailable

RH Foot-Well, Yellow B-190

705000516

Unavailable

5

Grommet

293720062

$5.39

6

Chain Cover

705000410

Unavailable

7

Tuflok Plastic Rivet

293150230

$1.47

8

Reflective Sheet

705000563

Unavailable

9

LH Foot-Well, Laurentian Green B-241

705000900

Unavailable

Viper Red, LH Foot-Well

705000521

Unavailable

LH Foot-Well, Yellow B-190

705000522

Unavailable

10

Rubber Stopper

705000407

Unavailable

11

Washer M6

250200029

$2.50

12

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Front Fender- Luggage Rack, green(b-204

705000867

Unavailable

15

Cup

705000451

Unavailable

16

Torx Screw M6 X 25 | XT Models

250000728

$4.44

17

HOOK - Call your local BRP dealership

705000560

Unavailable

18

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

19

Rear Fender, green, b-204)

705000351

Unavailable

20

Jack Nut M5

250100035

$6.99

21

Viper Red, Front Fascia

705000868

Unavailable

Front Fascia, Yellow B-190

705000869

Unavailable

Front Fascia, Laurentian Green B-241

705000901

Unavailable

22

Flat Washer

224060201

$1.26

23

Rear Bumper

705000353

Unavailable

24

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

25

Dash Board, Laurentian Green B-241

705000902

Unavailable

Viper Red, Dash Board

705000527

Unavailable

Dash Board, Yellow B-190

705000528

Unavailable

26

Oval Washer

705005156

$4.97

27

Windshield Latch

570023800

$4.49

28

Console Cover, Laurentian Green B-241

705000903

Unavailable

Viper Red, Console Cover

705000530

Unavailable

Console Cover, Yellow B-190

705000531

Unavailable

29

COVER - Call your local BRP dealership

705000371

Unavailable

30

RH Cover

705000564

Unavailable

LH Cover

705000565

Unavailable

31

Spacer

293900049

Unavailable

32

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

33

Tail Light Housing

710000102

Unavailable

34

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

35

Bulb

520000758

$9.10

36

GASKET - Call your local BRP dealership

710000129

Unavailable

37

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

38

Black, Dart

293730011

$0.99

39

Hex. Flange Elastic Nut M5

233251414

$1.04

40

Deflector

705000632

Unavailable

41

Deflector

705000883

Unavailable

42

Gasket, Neoprene 2000Mm Long

219704476

$15.36
