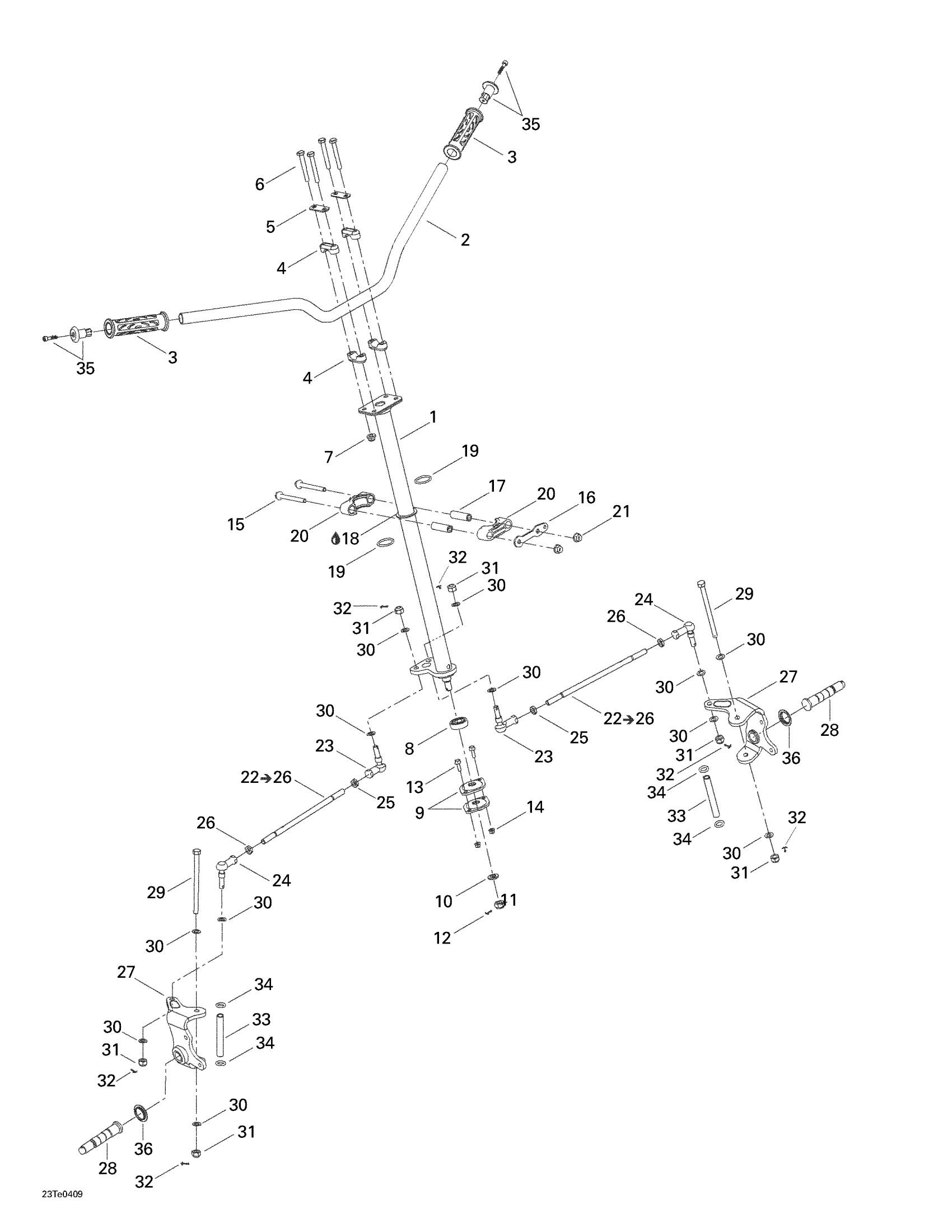

Can-Am Rally 175, 2004 07- Steering System Diagram

MAIN TUBE - Call your local BRP dealership

709400231

Unavailable

Handle Bar

709400105

Unavailable

Handle Grip

709400493

$14.83

Steering Support

709400919

$22.49

Stiffner

709400509

$4.69

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

Ball Bearing

709400439

$19.49

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

Flat Washer 12 mm

234021410

$0.72

Hex. Flange Elastic Nut M12

250000047

$1.90

Cotter Pin

211400017

$0.33

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M8 X 70

207687044

$7.41

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

BUSHING - Call your local BRP dealership

709400072

Unavailable

Synthetic Grease, 400 G

293550010

Unavailable

O-Ring

293300068

$7.65

Half Bushing

709400471

$14.30

Hex. Flange Elastic Nut M8

233281414

$1.47

Tie Rod Ass’y | Includes 22 - 26.

709400147

Unavailable

RH Ball Joint

709400148

Unavailable

LH Ball Joint

709400149

Unavailable

RH Threaded Hex. Jam Nut M10

732610010

$0.74

LH Threaded Hex. Jam Nut M10

250100016

$0.74

LH Knuckle

709400108

Unavailable

RH Knuckle

709400109

Unavailable

WHEEL AXLE - Call your local BRP dealership

709400135

Unavailable

AXLE SCREW M10 X 145 - Call your local BRP dealership

709400150

Unavailable

Washer

503175800

$3.28

Elastic Flange Nut M10

232501416

$1.48

Cotter Pin

211400013

$0.37

Pivot Bushing

709400110

Unavailable

O-RING - Call your local BRP dealership

414549700

Unavailable

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

WEAR RING - Call your local BRP dealership

705400056

Unavailable
