05- Pulleys

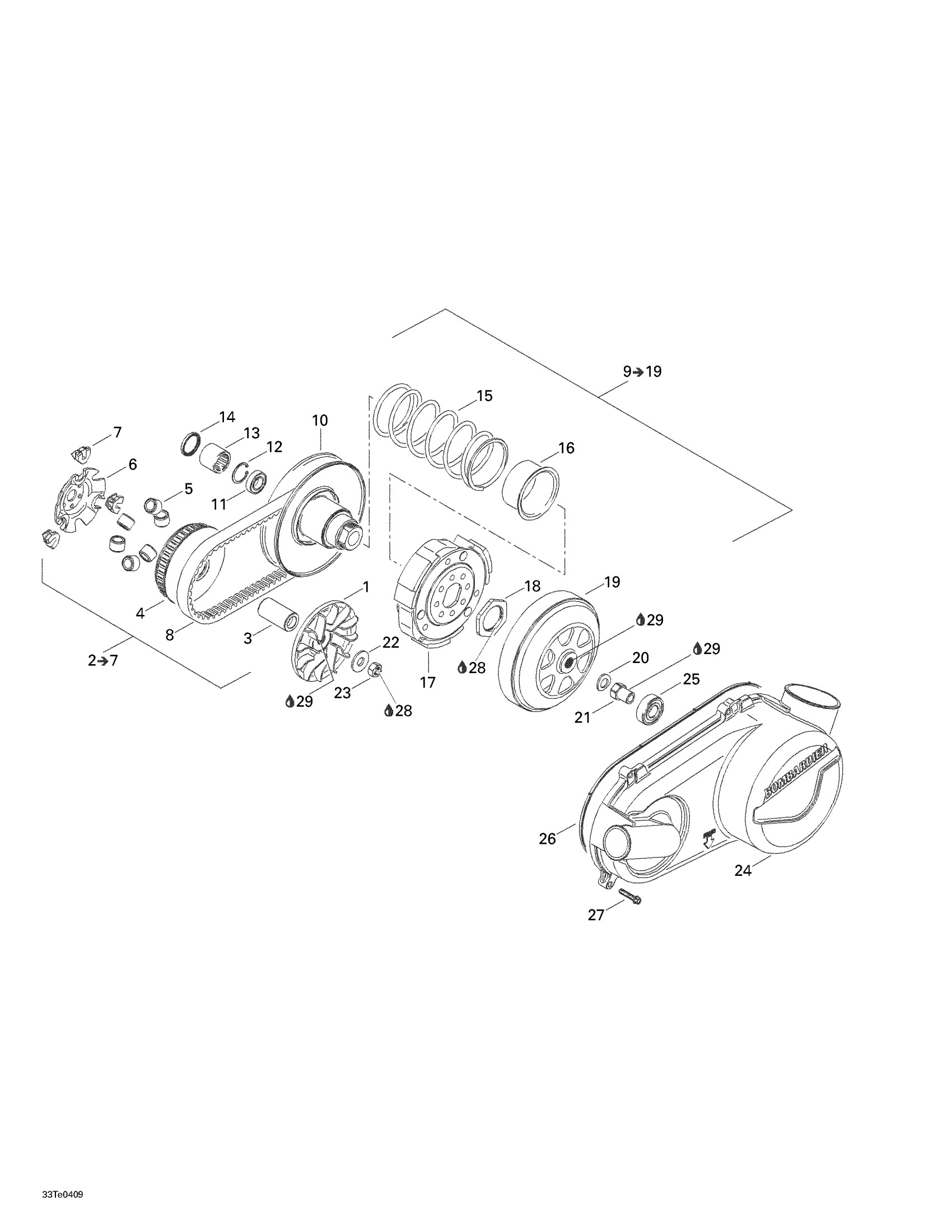

Can-Am Rally 175, 2004 05- Pulleys Diagram
#
Description
Price
1
Fixed Pulley
420280092
Unavailable
2
CVT DRIVE UNIT ASS?Y - Call your local BRP dealership | Includes 2 To 7
420296785
Unavailable
3
Spacer
420233779
Unavailable
4
Primary Drive Pulley
420280117
Unavailable
5
ROLLER KIT - Call your local BRP dealership
420281310
Unavailable
6
Ramp Plate
420259657
Unavailable
7
SLIDE PIECE, 3 PIECES - Call your local BRP dealership
420281320
Unavailable
8
BELT-V - Call your local BRP dealership
A23100179000
Unavailable
9
CVT Driven Unit Ass’y | Includes 9 To 19
420684010
Unavailable
10
CVT DRIVEN UNIT - Call your local BRP dealership
420684011
Unavailable
11
BALL BEARING - Call your local BRP dealership
420632420
Unavailable
12
RETAINING RING - Call your local BRP dealership
420945615
Unavailable
13
Sprag Clutch
420659400
Unavailable
14
OIL SEAL - Call your local BRP dealership
420631090
Unavailable
15
SPRING - Call your local BRP dealership
420239402
Unavailable
16
Spring Seat
420627172
Unavailable
17
CLUTCH ASS?Y - Call your local BRP dealership
420659252
Unavailable
18
HEX. NUT M10 - Call your local BRP dealership
420242040
Unavailable
19
CLUTCH DRUM - Call your local BRP dealership
420259664
Unavailable
20
LOCK WASHER - Call your local BRP dealership
420945754
Unavailable
21
NUT M12 - Call your local BRP dealership
420242230
Unavailable
23
HEX. NUT M12 - Call your local BRP dealership
420242515
Unavailable
24
TRANSMISSION COVER - Call your local BRP dealership
420610380
Unavailable
26
Rubber Gasket
420630160
Unavailable
27
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership
420241941
Unavailable
29
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
