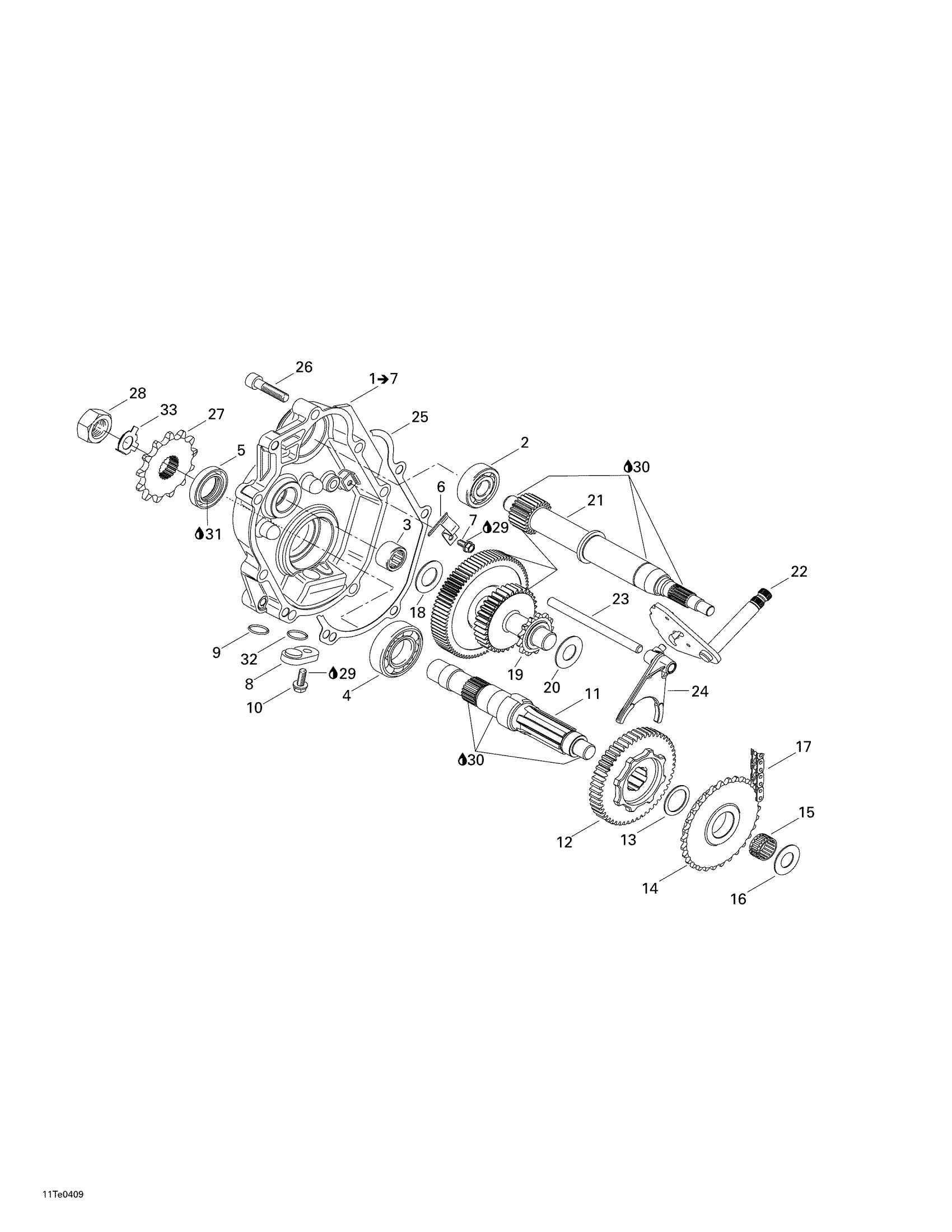

Can-Am Rally 175, 2004 05- Gear Shift Diagram

#

Description
Price

1

Gear Box Cover Ass’y | Includes 1 - 7.

420610361

Unavailable

2

Bearing_Ball - Call your local BRP dealership

420232293

Unavailable

3

Needle Bushing

420632960

Unavailable

4

BALL BEARING - Call your local BRP dealership

420232768

Unavailable

5

OIL SEAL - Call your local BRP dealership

420230395

Unavailable

6

SPRING - Call your local BRP dealership

420238265

Unavailable

7

Taptite Screw M5 x 12

420941935

$1.59

8

COVER - Call your local BRP dealership

420627805

Unavailable

9

O-RING - Call your local BRP dealership

420630600

Unavailable

10

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

11

Driven Shaft

420220930

Unavailable

12

SHIFT GEAR 51T - Call your local BRP dealership

420635250

Unavailable

13

THRUST WASHER - Call your local BRP dealership

420927470

Unavailable

14

SPROCKET 30T - Call your local BRP dealership

420236550

Unavailable

15

NEEDLE BEARING - Call your local BRP dealership

420232520

Unavailable

16

Thrust Washer

420927055

Unavailable

17

Chain

420898070

Unavailable

18

Thrust Washer

420627810

Unavailable

19

Intermediate Shaft

420220945

Unavailable

20

THRUST WASHER - Call your local BRP dealership

420227725

Unavailable

21

DRIVE PULLEY SHAFT 24T - Call your local BRP dealership

420220920

Unavailable

22

SHIFT SHAFT ASS?Y - Call your local BRP dealership

420220955

Unavailable

23

GUIDE PIN - Call your local BRP dealership

420258780

Unavailable

24

SHIFT FORK - Call your local BRP dealership

420257210

Unavailable

25

GASKET - Call your local BRP dealership

420630141

Unavailable

26

Allen Screw M8 X 40

420840682

$3.91

27

SPROCKET, 13 TEETH - Call your local BRP dealership

420236980

Unavailable

28

Ecrou Hex.M20 *Nut-Hex.M20

420242656

$17.54

29

Loctite 243, 10 ml

293800060

$21.49

30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

31

Grease, Super Lube

293550030

$28.99

32

O’Ring

420430600

Unavailable

33

Tab Washer

707000215

Unavailable
