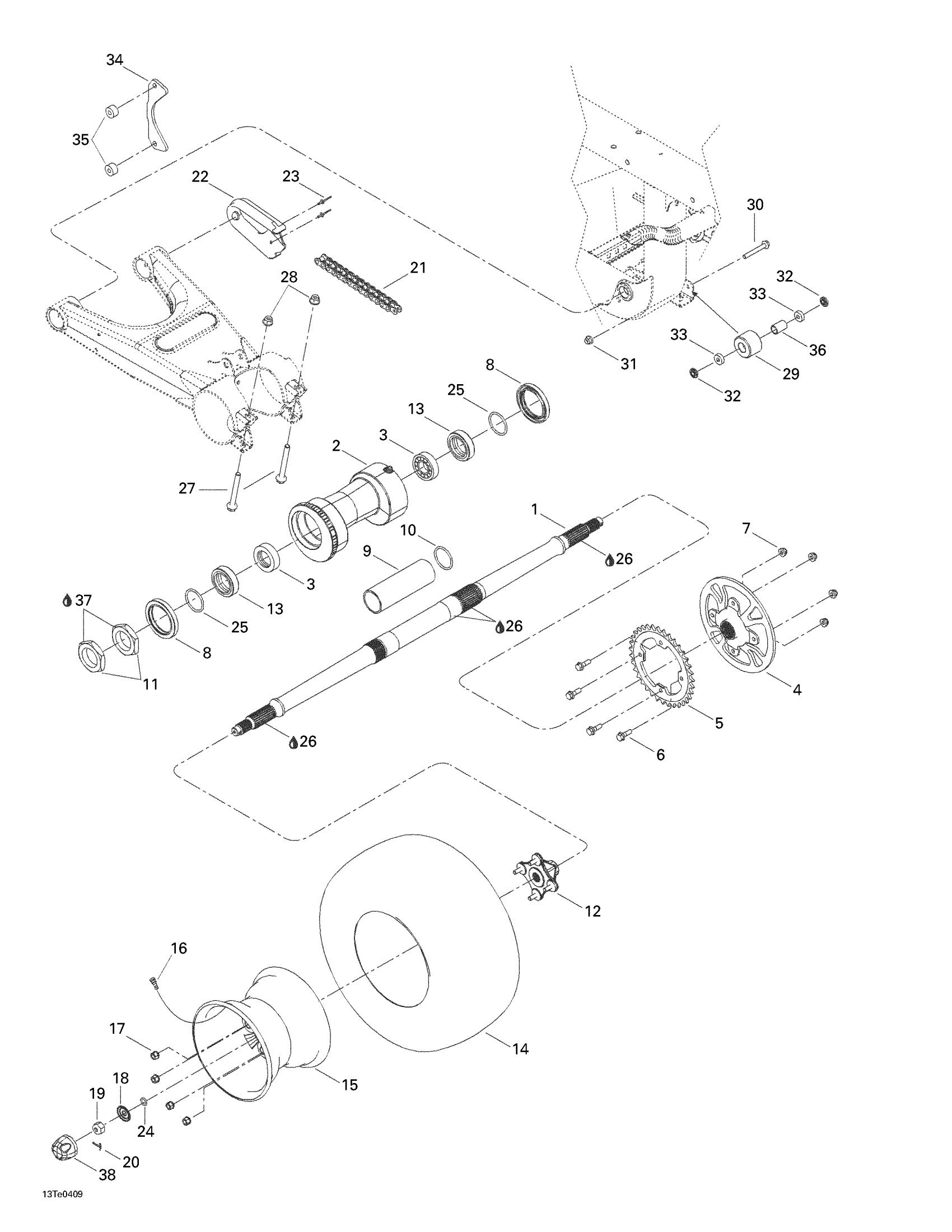

Can-Am Rally 175, 2004 05- Drive System, Rear Diagram

#

Description
Price

1

Rear Axle

705500220

Unavailable

2

CHAIN TIGHTENER - Call your local BRP dealership

705500277

Unavailable

3

Ball Bearing

705500275

Unavailable

4

WELDED HUB - Call your local BRP dealership

705500217

Unavailable

5

Sprocket, 35 Teeth

705500219

Unavailable

6

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

7

Hex. Elastic Flange Nut M8

233281416

$1.48

8

Joint Etanche *Oil Seal

293250222

$20.49

9

SPACER - Call your local BRP dealership

705500291

Unavailable

10

RETAINER RING - Call your local BRP dealership

705500292

Unavailable

11

Locking Nut

705500293

Unavailable

12

Wheel Hub Ass’y

705500341

Unavailable

13

Wearing Ring

705500412

Unavailable

14

Rear Tire

705500294

Unavailable

15

Rear Rim

705500295

Unavailable

16

Rim Valve With Cap

705400193

$8.69

17

Steel Wheel Nut

250100042

$3.98

18

FORMED WASHER - Call your local BRP dealership

705500481

Unavailable

19

Elastic Stop Nut M18

232591414

$4.39

20

Cotter Pin

250400036

$2.11

21

CHAIN - Call your local BRP dealership

705500274

Unavailable

22

SHOE SLIDER - Call your local BRP dealership

A40533179000

Unavailable

23

Pop Rivet 3/16"

293150103

$0.55

24

O-RING - Call your local BRP dealership

293300082

Unavailable

25

O-RING - Call your local BRP dealership

293300089

Unavailable

26

Graisse *Grease

293550062

$15.99

27

Hex. Flange Screw M10 X 60

207609044

Unavailable

28

Hex. Flange Elastic Nut M10

233201414

$1.58

29

CHAIN ROLLER - Call your local BRP dealership

705500368

Unavailable

30

Hex. Flange Screw M8 x 60

207686044

$3.07

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

SPACER - Call your local BRP dealership

705500398

Unavailable

33

BALL BEARING - Call your local BRP dealership

293350039

Unavailable

34

Chain Guide

705500425

Unavailable

35

Spacer

705500426

Unavailable

36

Spacer

705500397

Unavailable

37

Loctite 277, 10 ml

293800073

Unavailable

38

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable
