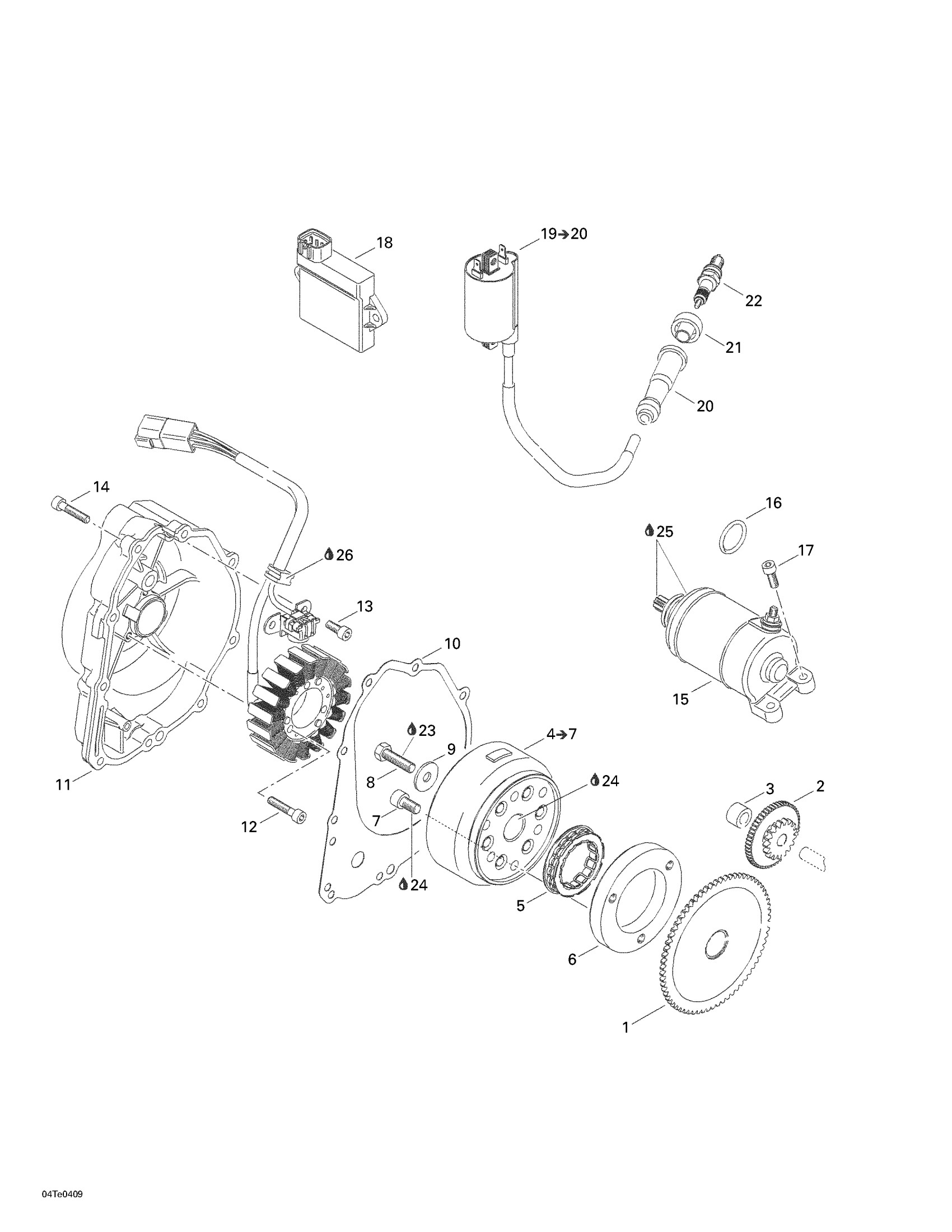

Can-Am Rally 175, 2004 03- Magneto Diagram

#

Description
Price

1

FREE WHEEL GEAR, 67 TEETH - Call your local BRP dealership

420635150

Unavailable

2

IDLE GEAR 54/17T - Call your local BRP dealership

420634460

Unavailable

3

DISTANCE SLEEVE - Call your local BRP dealership

420247930

Unavailable

4

AC GENERATOR - Call your local BRP dealership | Includes 4 - 7.

420295558

Unavailable

5

SPRAG CLUTCH - Call your local BRP dealership

420259495

Unavailable

6

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259480

Unavailable

7

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

8

SCREW M8 X 30 - Call your local BRP dealership

420940485

Unavailable

9

Plain Washer

420227937

$13.24

10

GASKET - Call your local BRP dealership

420650195

Unavailable

11

Ignition Cover

420610650

Unavailable

12

Socket Head Screw M6 X 30

205063044

$1.69

13

Socket Head Screw M6 x 16

420241237

$2.22

14

Socket Head Screw M6 X 30

205063044

$1.69

15

ELECTRIC STARTER - Call your local BRP dealership

420296390

Unavailable

15

BRUSH KIT (NOT SHOWN) - Call your local BRP dealership

420266300

Unavailable

16

O-Ring

420250140

$8.57

17

Socket Head Screw M6 X 20

205062044

$1.26

18

ELECTRONIC BOX - Call your local BRP dealership

420265634

Unavailable

19

Ignition Coil Ass’y

420265418

Unavailable

20

SPARK PLUG CONNECTOR CAP - Call your local BRP dealership

420265242

Unavailable

21

RUBBER GROMMET - Call your local BRP dealership

420660430

Unavailable

22

Spark Plug

219703176

$10.59

23

Loctite 243, 10 ml

293800060

$21.49

24

Sealant Loctite 648

219703000

$45.99

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

$36.99
