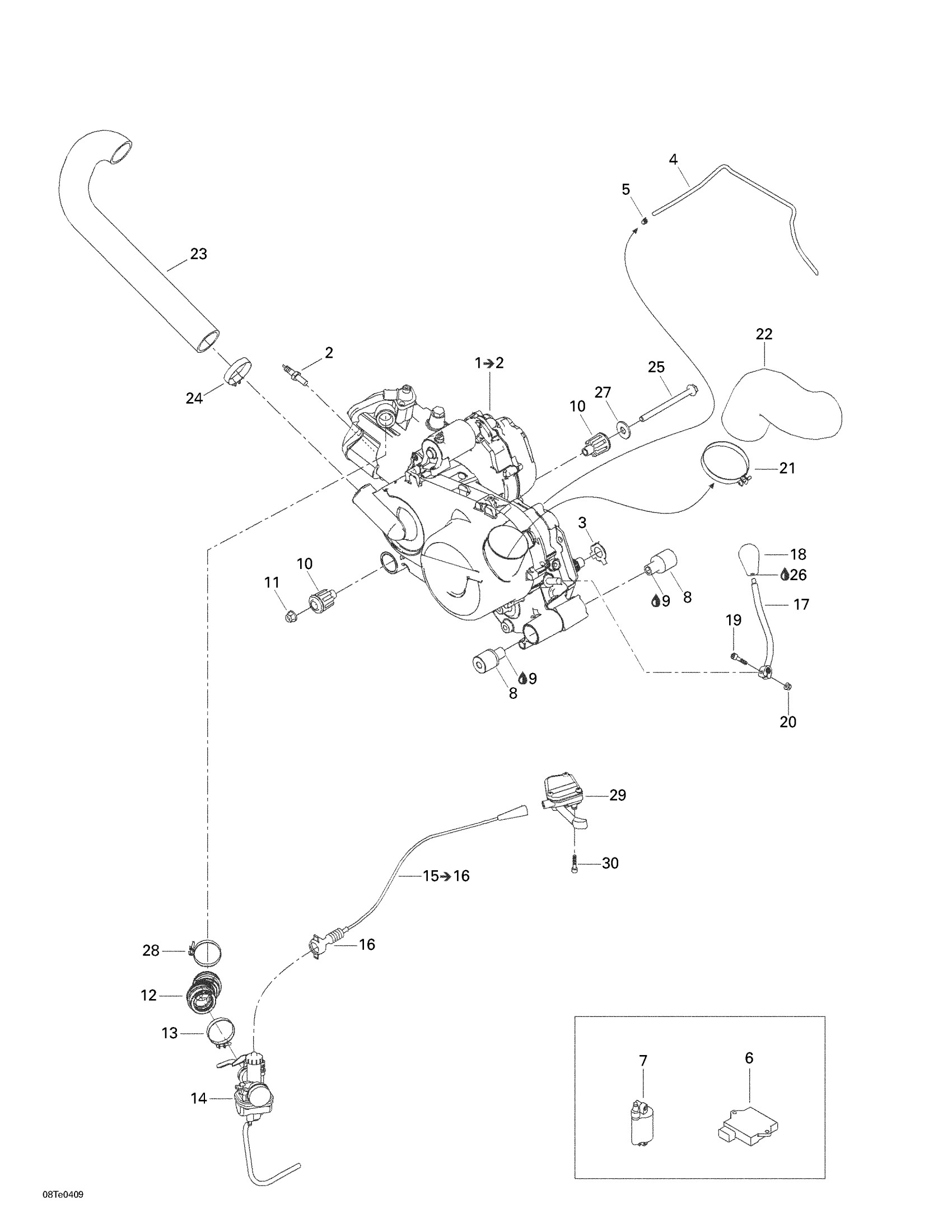

Can-Am Rally 175, 2004 01- Engine Diagram

#

Description
Price

1

Engine 175 CC | Includes 1 - 2.

707000193

Unavailable

2

Spark Plug

219703176

$10.59

3

Tab Washer

707000215

Unavailable

4

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

5

Spring Clamp

414554800

$0.88

6

ELECTRONIC BOX - Call your local BRP dealership

420265634

Unavailable

7

Ignition Coil Ass’y

420265418

Unavailable

8

Rear Bushing

707000237

Unavailable

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

Front Bushing

707000244

Unavailable

11

Hex. Flange Elastic Nut M10

233201436

$2.11

12

Carburetor Adaptor

707000195

Unavailable

13

GEMI CLAMP - Call your local BRP dealership

293650151

Unavailable

14

Carburetor

707200169

Unavailable

15

Throttle Cable

707000318

Unavailable

16

Plug

293000101

Unavailable

17

Shifter Lever

707000198

Unavailable

18

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

19

Socket Head Screw M6 x 30

205063087

Unavailable

20

Hex. Nut M6

232061487

Unavailable

21

Gemi Clamp

293650152

$15.49

22

EXHAUST - Call your local BRP dealership

707000202

Unavailable

23

Air Intake

707000203

Unavailable

24

GEMI CLAMP - Call your local BRP dealership

293650153

Unavailable

25

Hex. Flange Screw M10 x 130

230503046

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Washer

707000291

Unavailable

28

HOSE CLAMP - Call your local BRP dealership

A9451648000

Unavailable

29

THROTTLE HANDLE - Call your local BRP dealership

709400142

Unavailable

30

SOCKET HEAD SCREW M5 X 20 - Call your local BRP dealership | DS 650 X

205452046

Unavailable
