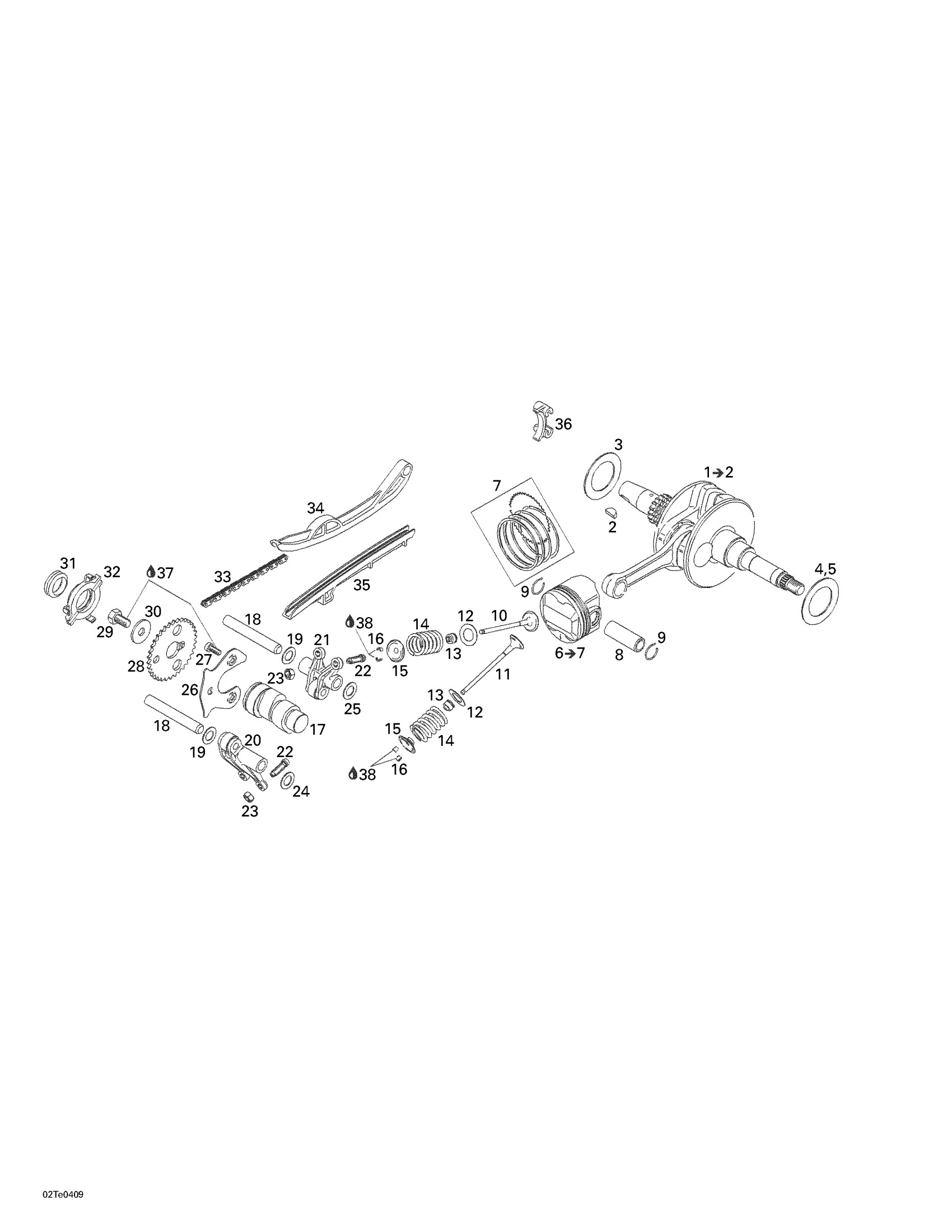

Can-Am Rally 175, 2004 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 To 2

420296420

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.38

3

THRUST WASHER - Call your local BRP dealership

420627110

Unavailable

4

Thrust Washer

420627111

Unavailable

5

THRUST WASHER - Call your local BRP dealership

420627112

Unavailable

6

Piston Ass’y | Includes 6 To 7

420296700

Unavailable

7

PISTON RING SET - Call your local BRP dealership

420296704

Unavailable

8

PISTON PIN - Call your local BRP dealership

420216210

Unavailable

9

CIRCLIP PISTON - Call your local BRP dealership

420245805

Unavailable

10

Inlet Valve 20 mm

420253880

Unavailable

11

Exhaust Valve 18 mm

420253892

Unavailable

12

THRUST WASHER - Call your local BRP dealership

420227451

Unavailable

13

SEAL VALVE - Call your local BRP dealership

420650120

Unavailable

14

VALVE SPRING - Call your local BRP dealership

420239360

Unavailable

15

Valve Spring Retainer

420253902

Unavailable

16

Valve Cotter

420253840

Unavailable

17

CAMSHAFT - Call your local BRP dealership

420220315

Unavailable

18

PIN - Call your local BRP dealership

420229410

Unavailable

19

THRUST WASHER - Call your local BRP dealership

420627100

Unavailable

20

ROCKET ARM EXHAUST - Call your local BRP dealership

420253878

Unavailable

21

Rocket Arm Inlet

420253868

Unavailable

22

Adjustment Screw M6 X 0.75

420241337

$5.07

23

Hex Nut M6

420242913

$0.53

24

THRUST WASHER - Call your local BRP dealership

420627100

Unavailable

25

Thrust Washer

420827590

$4.01

26

Retaining Plate

420251040

Unavailable

27

Socket Screw M5 x 12

420241841

Unavailable

28

Timing Gear 34T

420634380

Unavailable

29

Hex. Screw M8 x 16

207181644

$1.15

30

Plain Washer

420227937

$13.24

31

V-Ring 20S FPM Blow By Valve

420630125

$11.63

32

COVER - Call your local BRP dealership

420660180

Unavailable

33

CAMSHAFT CHAIN - Call your local BRP dealership

420297932

Unavailable

34

Chain Tension Guide

420236270

Unavailable

35

CHAIN GUIDE - Call your local BRP dealership

420236280

Unavailable

36

Chain Guide

420236351

$14.81

37

Loctite 243, 10 ml

293800060

$21.49

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
