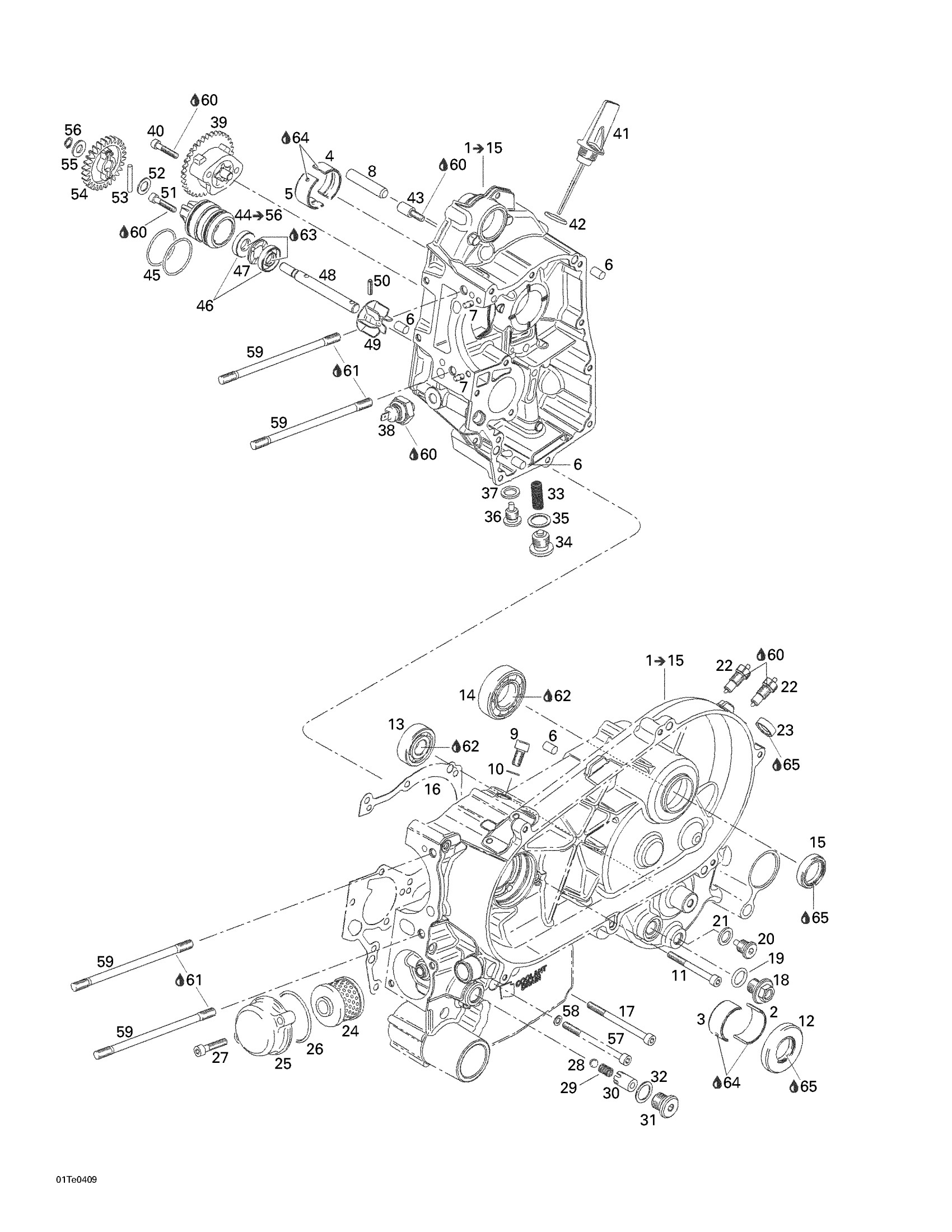

Can-Am Rally 175, 2004 01- Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 15.

420296691

Unavailable

2

PLAIN BEARING - Call your local BRP dealership

420233710

Unavailable

3

Bushing_Half - Call your local BRP dealership

420233712

Unavailable

4

PLAIN BEARING - Call your local BRP dealership

420233715

Unavailable

5

Plain Bearing

420233717

Unavailable

6

Center Pin 8 X 12

420632010

$4.01

7

Drive Pin 5 X 10

420929650

$1.68

8

Location Pin 10 M6x50

420229302

$3.17

9

Socket Head Screw M8 X 16

205081660

Unavailable

10

Sealing Ring

420950141

$2.00

11

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

Unavailable

12

Oil Seal

420831178

$35.99

13

Bearing_Ball - Call your local BRP dealership

420232293

Unavailable

14

BALL BEARING - Call your local BRP dealership

420232768

Unavailable

15

OIL SEAL - Call your local BRP dealership

420250950

Unavailable

16

CRANKCASE GASKET - Call your local BRP dealership

420650745

Unavailable

17

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

Unavailable

18

Plug Screw M14 X 1.5

420241662

$15.81

19

O-Ring

420650350

$12.11

20

Plug screw

420841924

$14.28

21

Copper Washer

420250640

$0.98

22

Position Switch

420241856

$35.99

23

OIL SEAL - Call your local BRP dealership

420250992

Unavailable

24

OIL FILTER - Call your local BRP dealership

715500367

Unavailable

25

Oil Filter Cover

420211500

Unavailable

26

O-Ring

420430920

$2.75

27

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

28

Ball 8.5 mm

420432680

$5.50

29

SPRING, COMPRESSION - Call your local BRP dealership

420239280

Unavailable

30

PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership

420256483

Unavailable

31

Plug Screw M16 X 1.5

420240234

$14.28

32

O-Ring

420430622

$4.44

33

Oil Sieve

420256490

Unavailable

34

Plug Screw M16 X 1.5

420240235

Unavailable

35

O-Ring

420430622

$4.44

36

Magnetic Drain Plug M12

420241787

$17.99

37

Copper Washer

420250640

$0.98

38

OIL PRESSURE SWITCH M10 X 1 - Call your local BRP dealership

420956166

Unavailable

39

OIL PUMP ASS'Y - Call your local BRP dealership

420295630

Unavailable

40

TAPTITE SCREW M5 X 25 - Call your local BRP dealership

420241275

Unavailable

41

OIL DIPSTICK - Call your local BRP dealership

420256465

Unavailable

42

O-Ring

420230890

$5.39

43

SCREW M6 - Call your local BRP dealership

420240940

Unavailable

44

WATER PUMP ASS'Y - Call your local BRP dealership

420293419

Unavailable

45

O-RING - Call your local BRP dealership

420430900

Unavailable

46

Oil Seal

420230195

$15.36

47

DISTANCE SHIM - Call your local BRP dealership

420260710

Unavailable

48

Water Pump Shaft

420220355

Unavailable

49

WATER IMPELLER - Call your local BRP dealership

420222482

Unavailable

50

Spring Pin

420229280

$5.29

51

TAPTITE SCREW M5 X 25 - Call your local BRP dealership

420241275

Unavailable

52

Thrust Washer

420827590

$4.01

53

Needle Pin

420232431

$4.39

54

WATER PUMP GEAR, 28 TEETH - Call your local BRP dealership

420634430

Unavailable

55

Flat Washer

420827405

$1.69

56

Retaining Ring

420245570

$6.67

57

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

Unavailable

58

Seal Washer

420230415

$1.79

59

STUD M8 X 151 - Call your local BRP dealership

420640240

Unavailable

60

Loctite 243, 10 ml

293800060

$21.49

61

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

62

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

63

Dow Corning 111, 150 g

413707000

$59.99

64

Molykote G-N, 50 g

420297433

$26.99

65

Grease, Super Lube

293550030

$28.99
