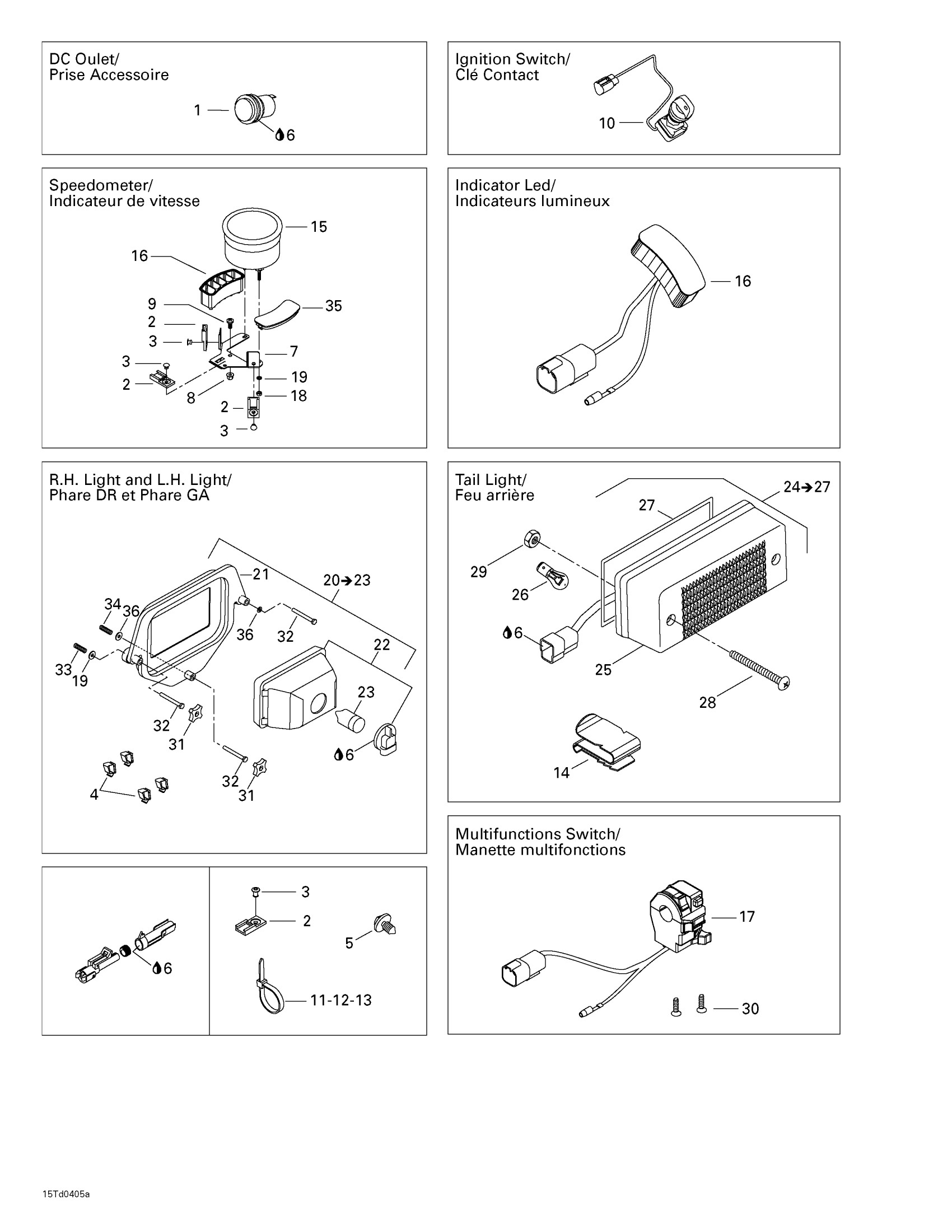

Can-Am Quest XT, 2004 10- Electrical Accessories Diagram

#

Description
Price

1

Outlet Power Kit, 12 Volts

861507200

$36.99

2

Clip

270000141

$11.49

3

Pop Rivet 3/16"

390402400

$0.35

4

Clip

414227300

$1.67

5

Mount Dart

293730040

$1.04

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Housing Support, Black

710000159

Unavailable

8

Elastic Stop Nut M5

232551414

$0.87

9

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

10

Ignition Switch Ass'y | Includes 17 to 21

710000192

Unavailable

10

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

10

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

11

Tie Wrap 368 mm

293750008

$1.04

12

Tie Wrap 142 mm

293750002

$1.25

13

Tie-Rap 180 mm

414115200

$0.11

14

CLIP - Call your local BRP dealership

409014200

Unavailable

15

Speedometer

710000524

Unavailable

16

RH Warning Light

710000407

Unavailable

17

Multi-Function Switch | Includes 19 to 21

710000404

Unavailable

18

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

19

Flat Washer 4 mm

234040600

$0.55

20

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 31 to 34

710000174

Unavailable

21

LAMP SUPPORT - Call your local BRP dealership

705000283

Unavailable

22

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

23

BULB - Call your local BRP dealership

710000176

Unavailable

24

Tail Light Housing

710000102

Unavailable

25

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

26

Bulb

520000758

$9.10

27

GASKET - Call your local BRP dealership

710000129

Unavailable

28

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

29

Hex. Flange Elastic Nut M5

233251414

$1.04

30

Socket Head Screw M5 X 35

205053588

$1.90

31

Handle

572106600

$10.33

32

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

33

SPRING - Call your local BRP dealership

710000285

Unavailable

34

Spring

517168600

$7.39

35

LIGHT COVER - Call your local BRP dealership

709400102

Unavailable

36

Flat Washer 4 mm, Stainless

234042600

$1.15
