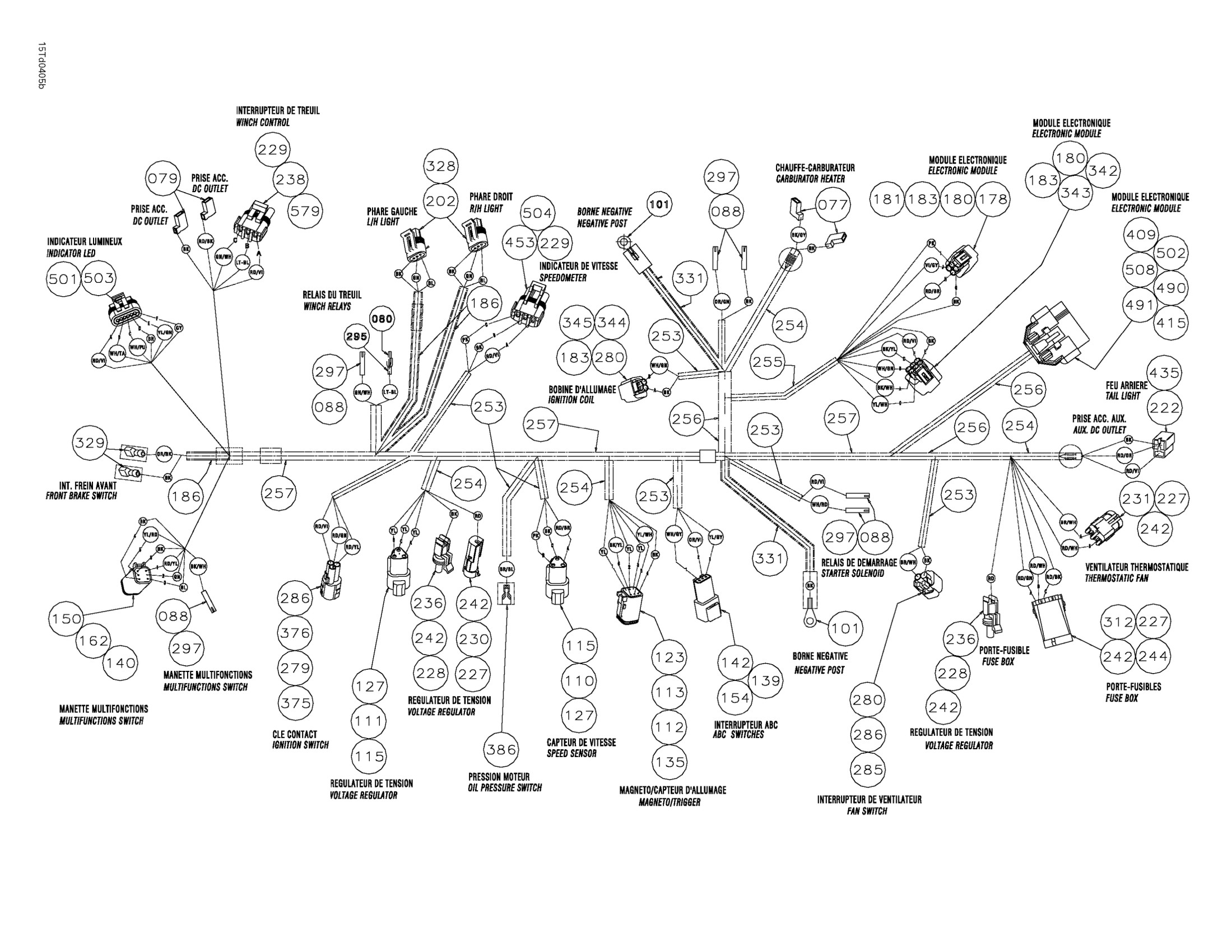

Can-Am Quest STD, 2004 10- Main Harness Diagram

#

Description
Price

77

Harness Ass'y | Includes 77 - 579.

710000445

Unavailable

77

Female Terminal

409010300

$4.39

79

Female Terminal

710000038

$4.55

80

Male Terminal

278000230

$4.39

88

Female Terminal | DS 650 X

278001009

$3.19

101

Open Barrel Terminal

278001392

$4.79

110

Male Terminal

278000631

$4.39

111

Male Terminal

515175823

$4.55

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

115

Male Housing

278002378

$13.99

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

127

Male Lock, 3 Circuits

409207600

$3.19

139

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

140

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

150

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

162

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

178

Lock, 4 Circuits

710000187

Unavailable

180

FEMALE TERMINAL - Call your local BRP dealership

278001638

Unavailable

181

Housing Tab, 4 Circuits

710000188

Unavailable

183

WIRE SEAL - Call your local BRP dealership

710000189

Unavailable

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

202

Female Terminal

278001114

$3.19

222

Female Housing

409204300

Unavailable

227

Male Terminal

409004300

$5.61

228

Female Terminal

409007300

$0.45

229

Female Terminal

278000223

$3.19

230

Female Housing, 1 Circuit

278000161

$9.59

231

Female Housing, 2 Circuits

278000217

$9.59

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

244

Wire Seal

278000216

$3.19

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

279

Male Terminal

409011300

$5.93

280

Female Terminal

409012100

$4.55

285

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

286

Seal

409012300

$4.54

295

Insulated Sheath

278001008

$3.28

297

Insulated Sheath

278001007

$3.58

312

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

328

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

329

Female Terminal

710000082

$7.69

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

342

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000190

Unavailable

343

LOCK, 6 CIRCUITS - Call your local BRP dealership

710000191

Unavailable

344

FEMELLE HOUSING, 2 CIRCUITS - Call your local BRP dealership

278001637

Unavailable

345

SECONDARY LOCK - Call your local BRP dealership

278001640

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.39

375

Male Terminal

710000218

Unavailable

376

HOUSING-TAB - Call your local BRP dealership

710000219

Unavailable

386

Female Terminal

710000255

Unavailable

409

Plug

515175812

$2.19

415

Female Terminal

515175806

$0.99

422

Not Available As Spare Part - Friction Washer

Unavailable

435

Not Available As Spare Part - Friction Washer

Unavailable

453

Female Terminal Housing, 3 Circuits

710000347

Unavailable

490

SEAL WIRE - Call your local BRP dealership

710000394

Unavailable

491

FEMALE HOUSING - Call your local BRP dealership

710000395

Unavailable

501

FEMALE TERMINAL - Call your local BRP dealership

710000412

Unavailable

502

HOUSING - Call your local BRP dealership

710000413

Unavailable

503

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000414

Unavailable

504

Wire Seal

278001065

$7.69

579

Wire Seal

710000504

$4.39
