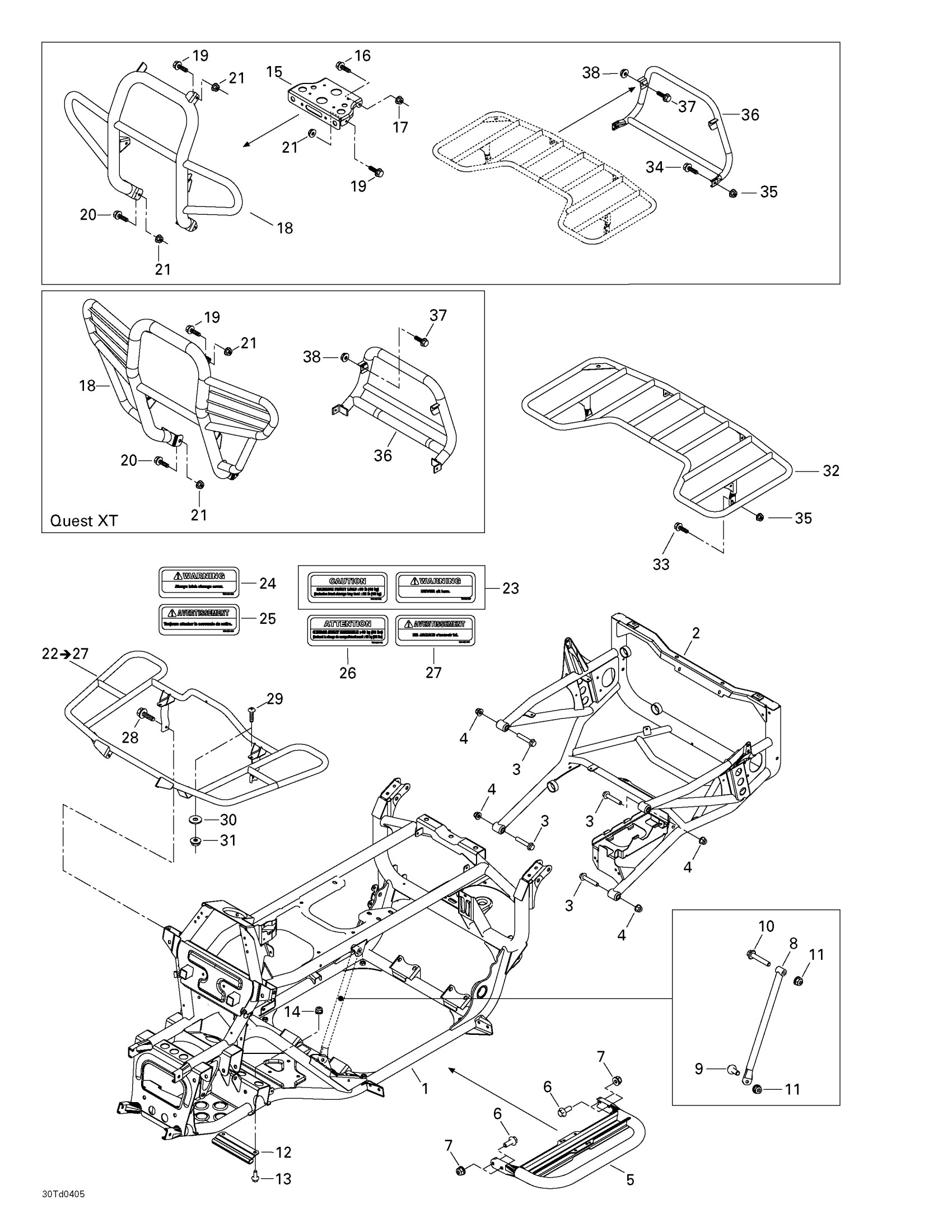

Can-Am Quest STD, 2004 09- Frame And Luggage Racks Diagram

#

Description
Price

1

Frame, Black

705200718

Unavailable

2

Frame Extension, Black

705200546

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

$3.38

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Footrest, Black

705000610

Unavailable

6

Hex. Flange Screw M8 X 20

207682044

$1.15

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

RH Removable Brace

705200404

Unavailable

LH Removable Brace

705200405

Unavailable

9

Hex. Flange Screw M8 X 25

207682544

$1.35

10

Hex. Flange Screw M8 X 50

207685044

$1.69

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Bracket, Black

705200575

Unavailable

13

Hex. Flange Screw M6 X 16

207661644

$0.74

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

16

Hex. Flange Screw M8 X 20

207682044

$1.15

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

19

Hex. Flange Screw M8 X 20

207682044

$1.15

20

Hex. Flange Screw M8 X 25

207682544

$1.35

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Front Luggage Rack Kit (Black) | Includes 22 - 27.

703500350

Unavailable

23

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

24

Warning Label, Tray Cover

704900038

Unavailable

25

Warning Label (French) | (Front Trunk Cover)

704900039

Unavailable

26

Caution Decal, Maximum Load | French Version

704900016

Unavailable

27

WARNING LABEL (FRENCH) - Call your local BRP dealership | (Do Not Sit)

704900018

Unavailable

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

29

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

30

Flat Washer

224060201

$1.26

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Rear luggage rack

705000784

Unavailable

33

Hex. Flange Screw M8 X 20

207682044

$1.15

34

Hex. Flange Screw M8 X 50

207685044

$1.69

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Rear bumper | STD Quest Std.

705000793

Unavailable

Rear Bumper, Black | XT

705000799

Unavailable

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

Rear bumper (silver)

705000210

Unavailable

37

Hex. Flange Screw M8 X 20

207682046

$1.90

38

Hex. Elastic Flange Nut M8

233281416

$1.48
