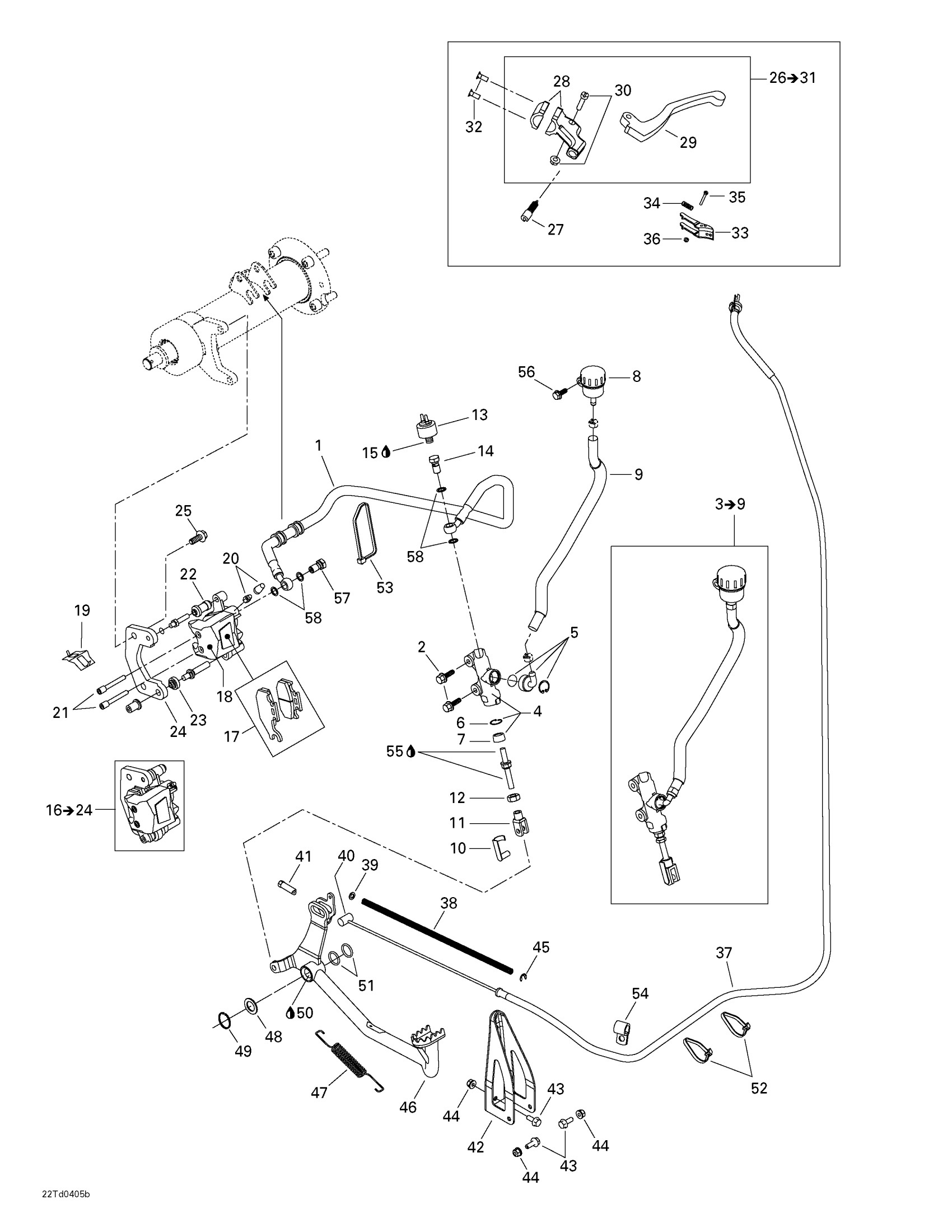

Can-Am Quest STD, 2004 06- Hydraulic Rear Brake Diagram

#

Description
Price

1

Rear Brake Flexible Hose

705600291

Unavailable

2

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

3

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

4

Piston Set

705600063

Unavailable

5

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

6

Circlip

705600068

Unavailable

7

Compression Boot

705600090

Unavailable

8

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

9

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

10

Pin Kit

219702305

$34.99

11

Yoke

705600100

Unavailable

12

Hex. Nut M8

232081414

$0.72

13

Interrupteur *Brake Switch

710001345

$36.99

14

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

15

Was 293800013 Loctite 56765

219704454

$65.99

16

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

17

Brake Pad Kit

705600150

$51.99

18

Piston Set

705600078

$38.99

19

Spring

705600079

$15.81

20

Bleeding Screw

705600080

$16.87

21

Pin Set (2)

705600081

$20.49

22

Compression Boot

705600082

$10.06

23

Compression Boot

705600083

$10.06

24

Lining Support

705600149

Unavailable

25

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

26

Brake Handle | Includes 61 to 66

705600269

Unavailable

27

Cable Screw

250000030

Unavailable

28

CLAMP KIT - Call your local BRP dealership

705600270

Unavailable

29

LEVER - Call your local BRP dealership

705600186

Unavailable

30

Pivot Kit

705600187

Unavailable

31

Lever Lock Kit

705600188

Unavailable

32

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

33

LOCK LEVER - Call your local BRP dealership

705600387

Unavailable

34

SPRING - Call your local BRP dealership

705600225

Unavailable

35

Screw M3 X 22

208032291

Unavailable

36

Elastic Stop Nut M3

232531423

$0.55

37

REAR BRAKE CABLE - Call your local BRP dealership

705600124

Unavailable

38

Spring

705600173

Unavailable

39

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

40

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

41

NUT - Call your local BRP dealership

705600388

Unavailable

42

Cable Support

705600191

Unavailable

43

Hex. Flange Screw M6 X 16

207661644

$0.74

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

Circlip

705600272

$9.23

46

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

Unavailable

47

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

48

WASHER - Call your local BRP dealership

503107800

Unavailable

49

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

50

Synthetic Grease, 400 G

293550010

Unavailable

51

O-RING - Call your local BRP dealership

293300053

Unavailable

52

Tie-Rap 180 mm

414115200

$0.11

53

Tie Wrap 368 mm

293750008

$1.04

54

CLIP - Call your local BRP dealership

414351600

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Hex. Flange Screw M6 X 16

210261650

$1.67

57

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

58

Washer

414920600

$1.90
