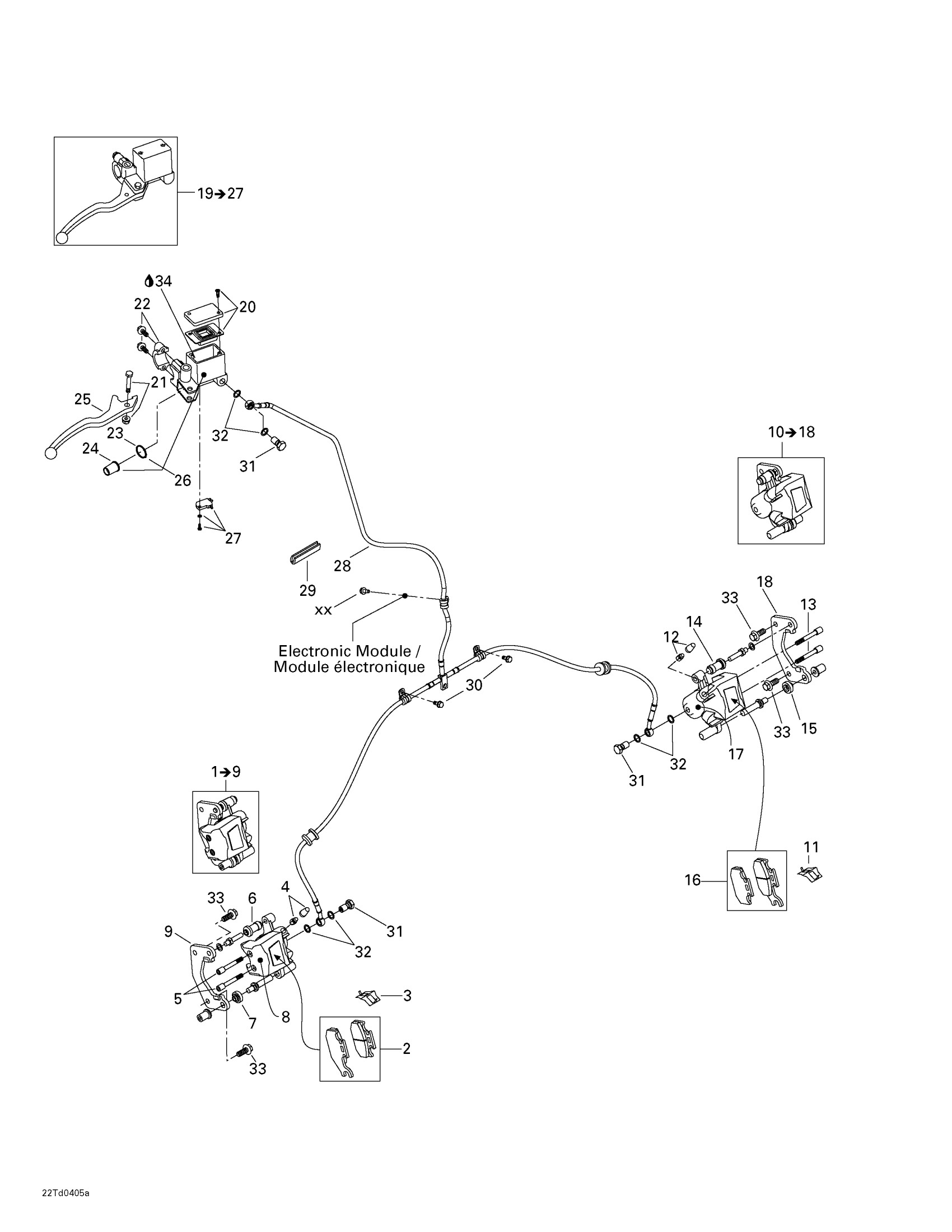

Can-Am Quest STD, 2004 06- Hydraulic Front Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 To 9

705600118

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Spring

705600079

$15.81

4

Bleeding Screw

705600080

$16.87

5

Pin Set (2)

705600081

$20.49

6

Compression Boot

705600082

$10.06

7

Compression Boot

705600083

$10.06

8

Piston Set

705600078

$38.99

9

Lining Support

705600149

Unavailable

10

LH Caliper | Includes 10 To 18

705600119

Unavailable

11

Spring

705600079

$15.81

12

Bleeding Screw

705600080

$16.87

13

Pin Set (2)

705600081

$20.49

14

Compression Boot

705600082

$10.06

15

Compression Boot

705600083

$10.06

16

Brake Pad Kit

705600014

$51.99

17

Piston Set

705600078

$38.99

18

Lining Support

705600149

Unavailable

19

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

20

Cap Set

705600084

$24.99

21

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

22

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

23

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

24

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

25

LEVER ARM - Call your local BRP dealership

705600164

Unavailable

26

PISTON KIT - Call your local BRP dealership

705600152

Unavailable

27

SWITCH KIT - Call your local BRP dealership

705600148

Unavailable

28

Brake Hose

705600290

$184.99

29

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

30

Hex. Flange Screw M6 X 16

210261650

$1.67

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

32

Washer

414920600

$1.90

33

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.29

34

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99
