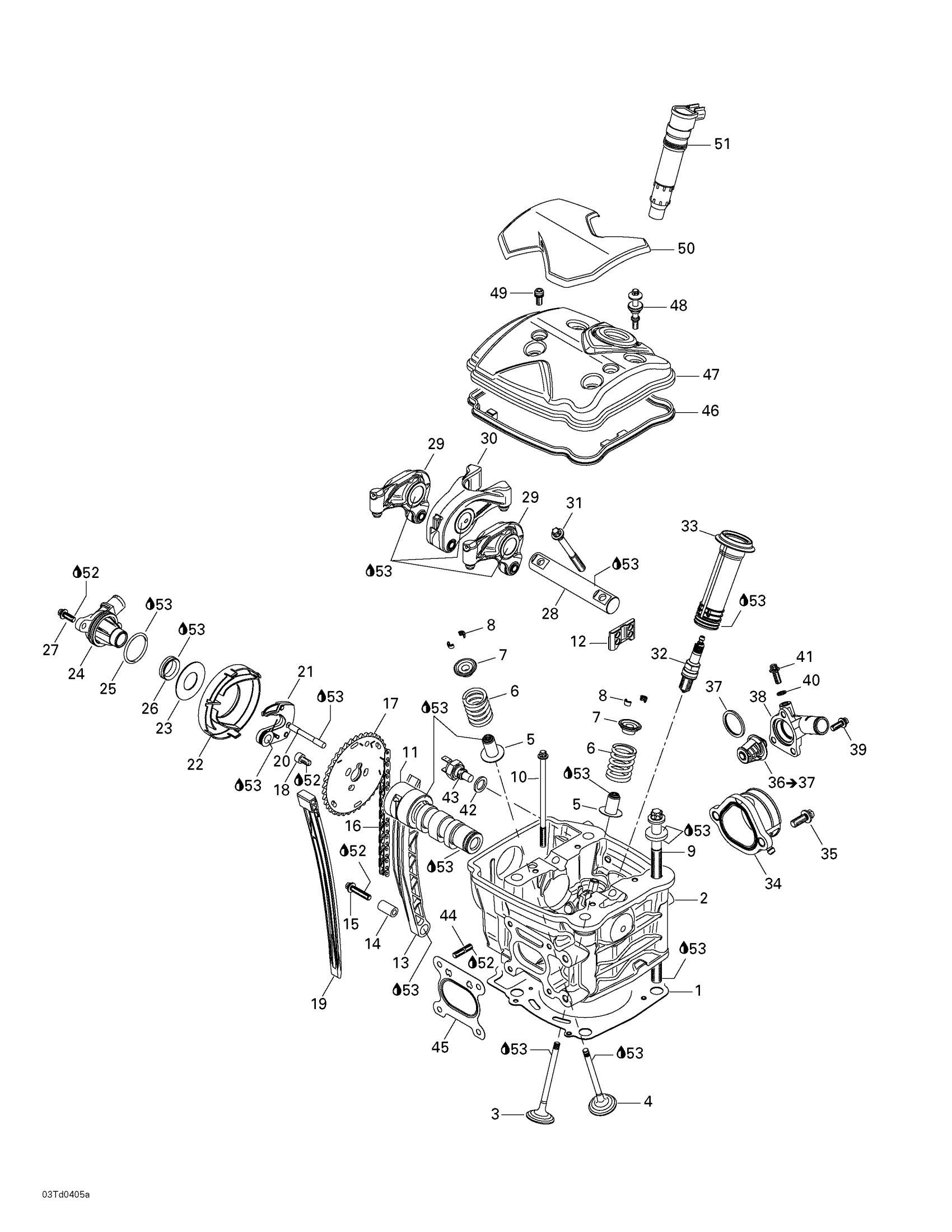

Can-Am Quest STD, 2004 01- Cylinder Head Diagram

#

Description
Price

1

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

2

CYLINDER HEAD ASS'Y - Call your local BRP dealership

420613477

Unavailable

3

Intake Valve 38MM

420253163

$41.49

4

Exhaust Valve 31 mm

420254027

$88.99

5

Valve Steam Seal

420630202

$7.90

6

Valve Spring

420238180

$15.89

7

Valve Spring Retainer

420254283

$8.57

8

Valve Cotter

420253645

$7.41

9

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

10

Torx Flange Screw M6 X 105

420440612

$7.41

11

CAMSHAFT - Call your local BRP dealership | Traxter 650 CVT

420220774

Unavailable

CAMSHAFT - Call your local BRP dealership | Traxter 500 CVT

420220775

Unavailable

12

Camshaft Guide

420851694

$31.99

13

Chain Tension Guide

420236541

$15.89

14

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

15

Torx Flange Screw M6 X 35

420440274

$1.01

16

Camshaft Chain

420297957

$100.49

17

Timing Gear, 38 Teeth

420254309

$69.99

18

Allen Screw M6 X 12

420840032

$4.44

19

Chain Guide

420236501

$14.28

20

DEKO SHAFT - Call your local BRP dealership

420220792

Unavailable

21

Centrifugal Weight

420231061

Unavailable

22

Cover

420660037

$23.49

23

Thrust Washer

420627494

$7.41

24

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

25

O-RING - Call your local BRP dealership

420950872

Unavailable

26

V-Ring 20S FPM Blow By Valve

420630125

$11.63

27

Hex. Flange Screw M6 X 16

420241751

Unavailable

28

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

29

Rocker Arm, Exhaust

420254329

$137.49

30

Rocker Arm, Inner

420254316

$179.99

31

Torx Screw M8 X 72

420641080

$5.29

32

Spark Plug, NGK DCP-R8E

715900637

$6.35

33

Spark Plug Pipe

420851754

$27.49

34

Rubber Flange

420267270

$84.99

35

Torx Flange Screw M8 X 25

420440372

$4.12

36

Thermostat | Includes 53 to 54

420222495

$38.99

37

Thermostat Gasket

420650300

$8.57

38

Thermostat Cover

420222660

Unavailable

39

Torx Flange Screw M6 X 16

420440162

$3.17

40

Sealing Washer

404146600

$2.97

41

Torx Flange Screw M6 X 16

420440162

$3.17

42

Copper Washer

420250640

$0.98

43

Temperature Switch

420897938

$78.49

44

Stud M6 X 16

420240010

Unavailable

45

GASKET - Call your local BRP dealership

420950680

Unavailable

46

Sealing Ring

420630071

$19.99

47

Valve Cover

420610185

Unavailable

48

Hex Screw M6 X 30

420440568

$8.58

49

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

50

Valve Cover

420660200

Unavailable

51

IGNITION COIL - Call your local BRP dealership

420664025

Unavailable

52

Loctite 243, 10 ml

293800060

$21.49

53

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
