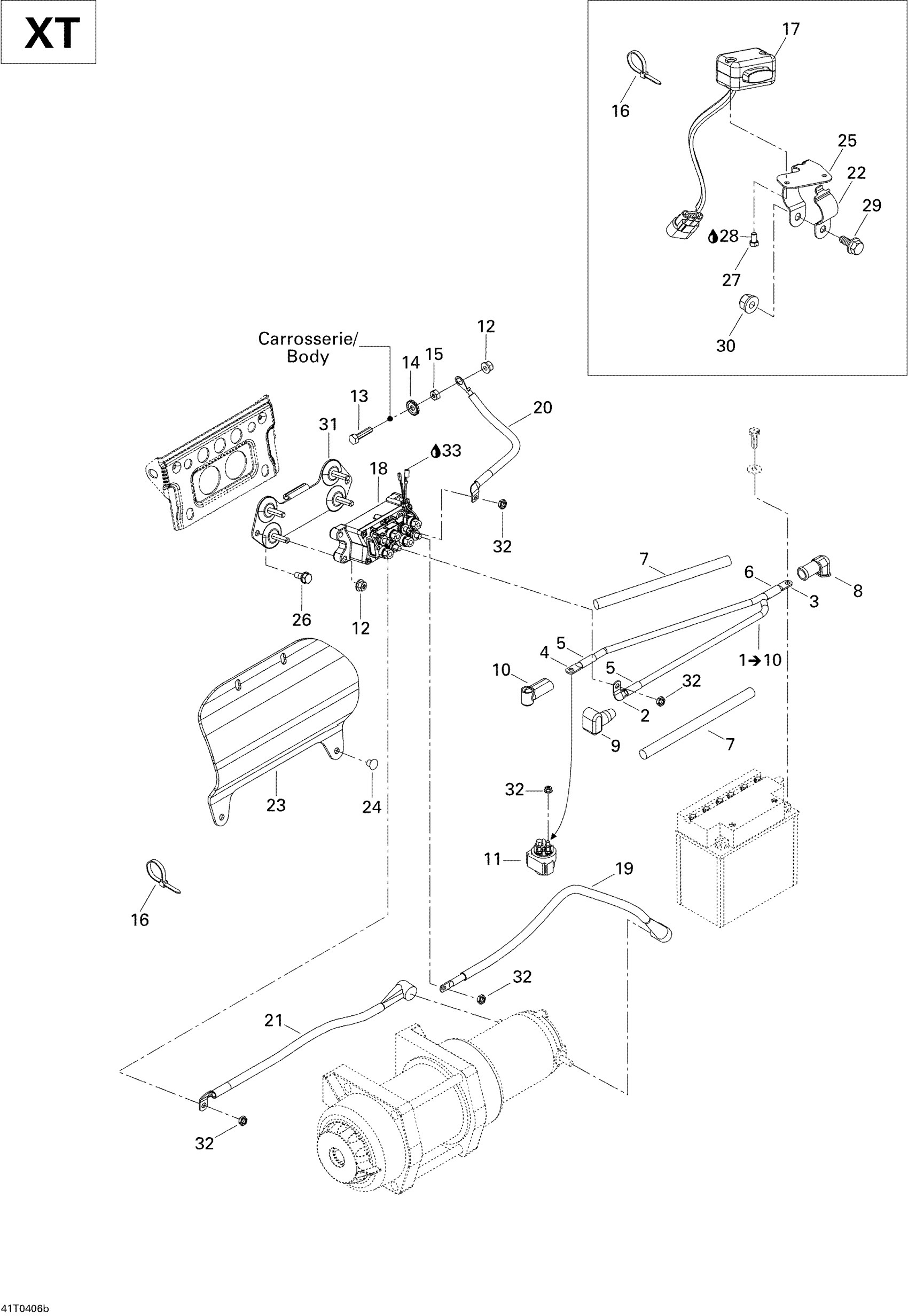

Can-Am Quest MAX, 2004 10- Electrical Accessories XT Diagram

#

Description
Price

1

Battery Cable | Includes Items 1 to 10

710000464

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$78.99

6

Shrink Tubing | XT Models

275500578

Unavailable

7

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

8

Protector Cap

710000495

$10.99

9

Protector Cap | STD Models

710000523

Unavailable

10

Protector Cap

710000527

Unavailable

11

Starter Relay

710000344

$126.99

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

14

External Serrated Lock Washer 6 mm

234461608

$1.15

15

Hex. Nut M6

232061414

$0.53

16

Tie Wrap 368 mm

293750008

$1.04

16

Tie Wrap 142 mm

293750002

$1.25

16

Tie-Rap 180 mm

414115200

$0.11

17

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

18

Winch Solenoid | XT Models

710001000

$121.99

19

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

20

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

21

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

22

Collar

710000566

Unavailable

23

Protector Pad

710000511

Unavailable

24

Black, Dart

293730011

$0.99

25

Support, Black

710000564

Unavailable

26

Hex. Forming Screw M6 X 10

210261050

$1.69

27

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

28

Loctite 243, 10 ml

293800060

$21.49

29

Hex. Flange Screw M6 X 16

207661654

$2.11

30

Hex. Flange Elastic Nut M6

233261494

$1.58

31

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

Unavailable

32

Elastic Stop Nut M6

232561414

$0.55
