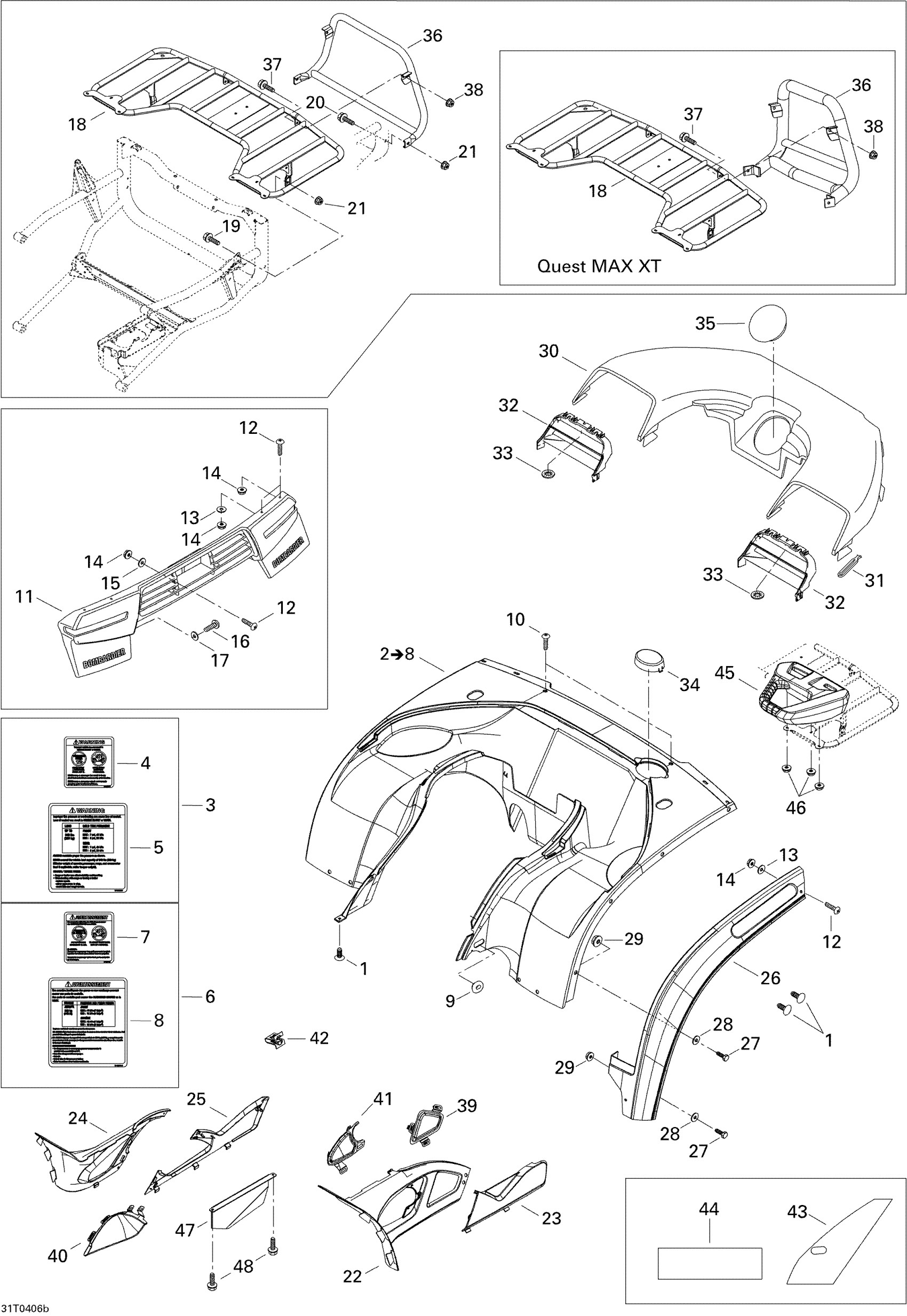

Can-Am Quest MAX, 2004 09- Body And accessories, Rear View Diagram

#

Description
Price

1

Black, Dart

293730011

$0.99

2

Rear Fender Kit, Viper Red | includes Items 2 to 8

703500403

Unavailable

3

Warning Label Ass'y, English | includes Items 3 to 5

704900751

Unavailable

4

Warning Label, English | (Passenger under 12 years old)

704900634

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Warning Label, French

704900437

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Oblong Grommet

705003668

$5.79

10

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

11

Rear Fascia, Slate Gray

705000709

Unavailable

12

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

13

Flat Washer

224060201

$1.26

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Flat Washer

224060201

$1.26

16

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

17

Flat Washer

224061121

$0.53

18

Luggage Rack, Black

705000874

Unavailable

19

Hex. Flange Screw M8 X 20

207682044

$1.15

20

Hex. Flange Screw M8 X 50

207685044

$1.69

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

LH Upper Panel, Viper Red

705000934

Unavailable

23

LH Lower Panel, Viper Red

705000942

Unavailable

24

RH Upper Panel, Viper Red | Includes 27 To 29

703500404

Unavailable

25

RH Lower Panel, Viper Red

705000946

Unavailable

26

LH Rear Mudguard

705001117

Unavailable

26

RH Rear Mudguard

705001118

Unavailable

27

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

28

Flat Washer

224060201

$1.26

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Fender Cover, Viper Red | Red

705000576

Unavailable

31

Windshield Latch

570023800

$4.49

32

LH Grill, Black

705000180

Unavailable

32

RH Grill, Black

705000181

Unavailable

33

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

34

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

35

CAP - Call your local BRP dealership

705000207

Unavailable

36

Rear Bumper, Black | XT

705000799

Unavailable

36

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

37

Hex. Flange Screw M8 X 20

207682046

$1.90

38

Hex. Elastic Flange Nut M8

233281416

$1.48

39

LH Rear Grill, Black

705000367

Unavailable

40

Black, RH Rear Grille

705000952

Unavailable

41

LH Front Grill

705000368

Unavailable

42

Edge Clip

517302785

$0.88

43

Reflective Sheet

705001297

Unavailable

44

Reflective Sheet

705000492

Unavailable

45

LH Handle

705000703

Unavailable

45

RH Handle

705000704

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Heatshield

705001317

Unavailable

48

Hex. Forming Screw M6 X 10

210261050

$1.69
