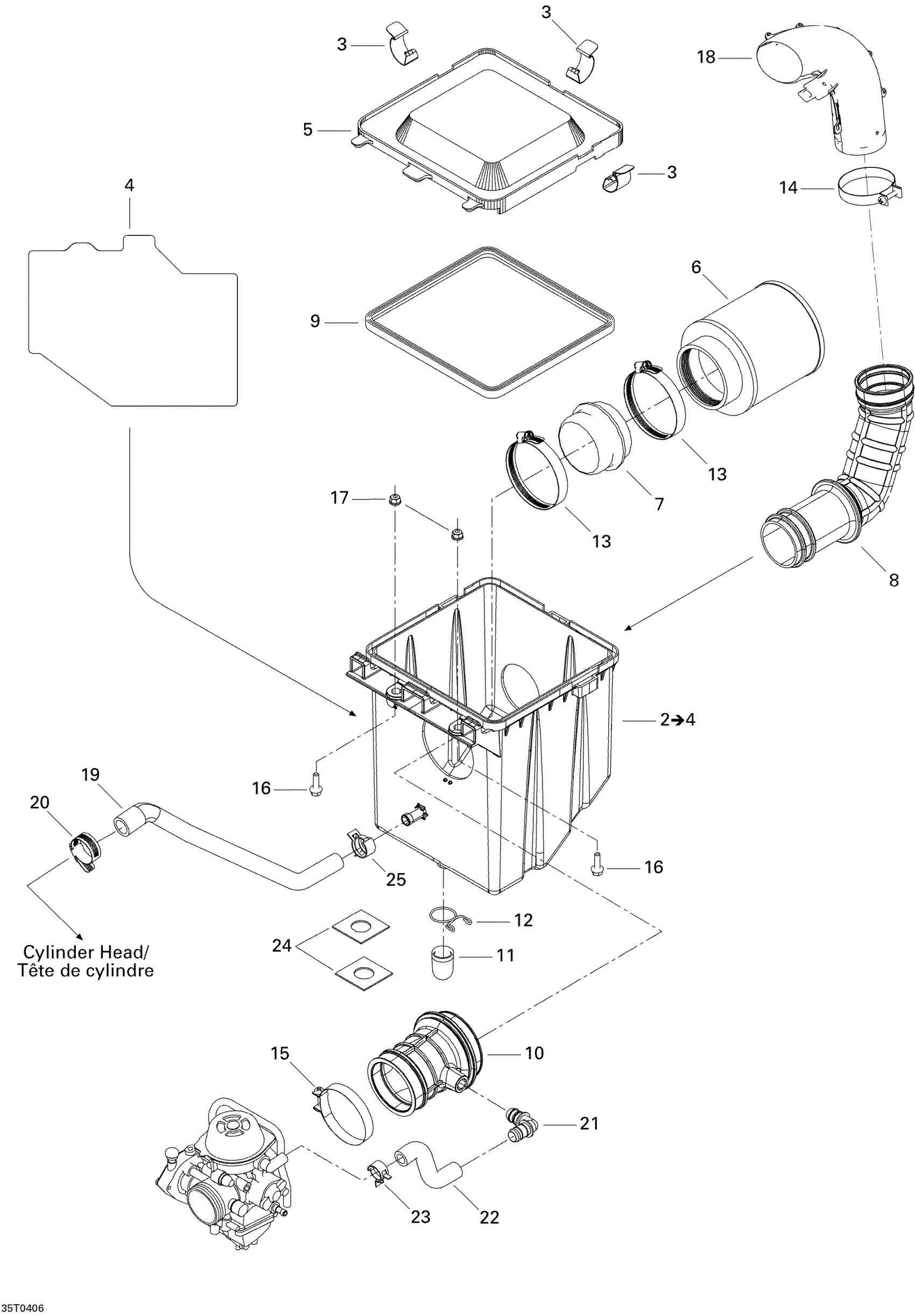

Can-Am Quest MAX, 2004 02- Air Intake System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INTAKE SILENCER - Call your local BRP dealership | Includes Items 2 to 4

707800171

Unavailable

3

Bracket Cover

707800079

Unavailable

4

HEAT PROTECTOR - Call your local BRP dealership

707800083

Unavailable

5

MUFFLER COVER - Call your local BRP dealership

707800158

Unavailable

6

Air Filter

707800072

$37.99

7

Adaptor

707800077

Unavailable

8

Intake Adaptor

707800078

Unavailable

9

OIL SEAL - Call your local BRP dealership

293250113

Unavailable

10

Front Air-Intake

707800065

Unavailable

11

Drain Tube

707800080

$8.29

12

RETAINER CLIP - Call your local BRP dealership

707800081

Unavailable

13

Tridon Clamp

293650179

$11.49

14

Gemi Clamp

293650158

$8.57

15

GEMI CLAMP - Call your local BRP dealership

293650159

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Rear Hose Intake

707800133

Unavailable

19

Rear Vent Hose

707800165

Unavailable

20

Tridon Gear Clamp

293650173

$3.09

21

90 Fitting-Elbow

293710098

Unavailable

22

VENT HOSE - Call your local BRP dealership

707800132

Unavailable

23

Norma Clamp

293650110

$4.54

24

Rubber Bumper

293830091

$8.29

25

Norma Spring Clamp

293650108

$4.12
