Description

Price

1

Main Tube

709401056

$129.99

2

Steering | STD

709401237

$63.49

3

Handle Grip

709400493

$14.83

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Screw M8 X 70

207687044

$7.41

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$52.99

23

LH Ball Joint

709402303

$36.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$24.49

30

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

31

Torx Screw K50 X 16

250000720

$1.69

32

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

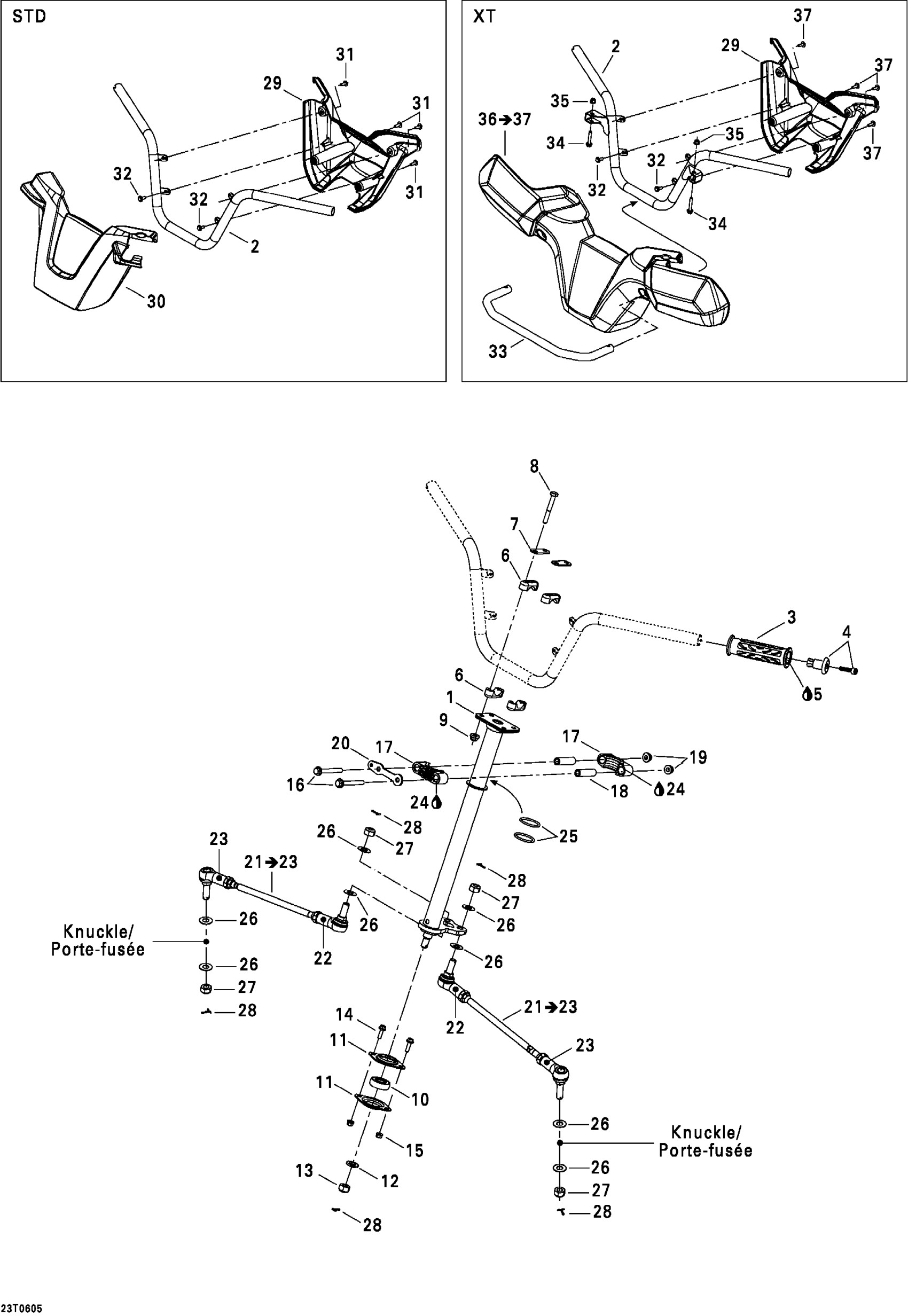

Can-Am Outlander 400 STD 4 X 4, 2006 07- Steering System STD Diagram

Main Tube

Steering | STD

Handle Grip

END-PIECE - Call your local BRP dealership | DS 650

Loctite 406, 7 Oz

Steering Support

Stiffner

Hex. Screw M8 X 60

Hex. Elastic Flange Nut M8

Ball Bearing

FLANGE, BEARING - Call your local BRP dealership

Flat Washer 12 mm

Hex. Flange Elastic Nut M12

Hex. Flange Screw M6 X 20, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M8 X 70

Half Bushing

BUSHING - Call your local BRP dealership

Hex. Flange Elastic Nut M8

STOPPER PLATE - Call your local BRP dealership

Tie Rod Ass'y | Includes 21 to 23

Ball Joint, RH Threads

LH Ball Joint

Synthetic Grease, 400 G

O-Ring

Hardened Washer

Nut M12

Cotter Pin

BLACK REAR STEERING COVER - Call your local BRP dealership

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

Torx Screw K50 X 16

Hex. Plastic Screw M4.8 X 16

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
