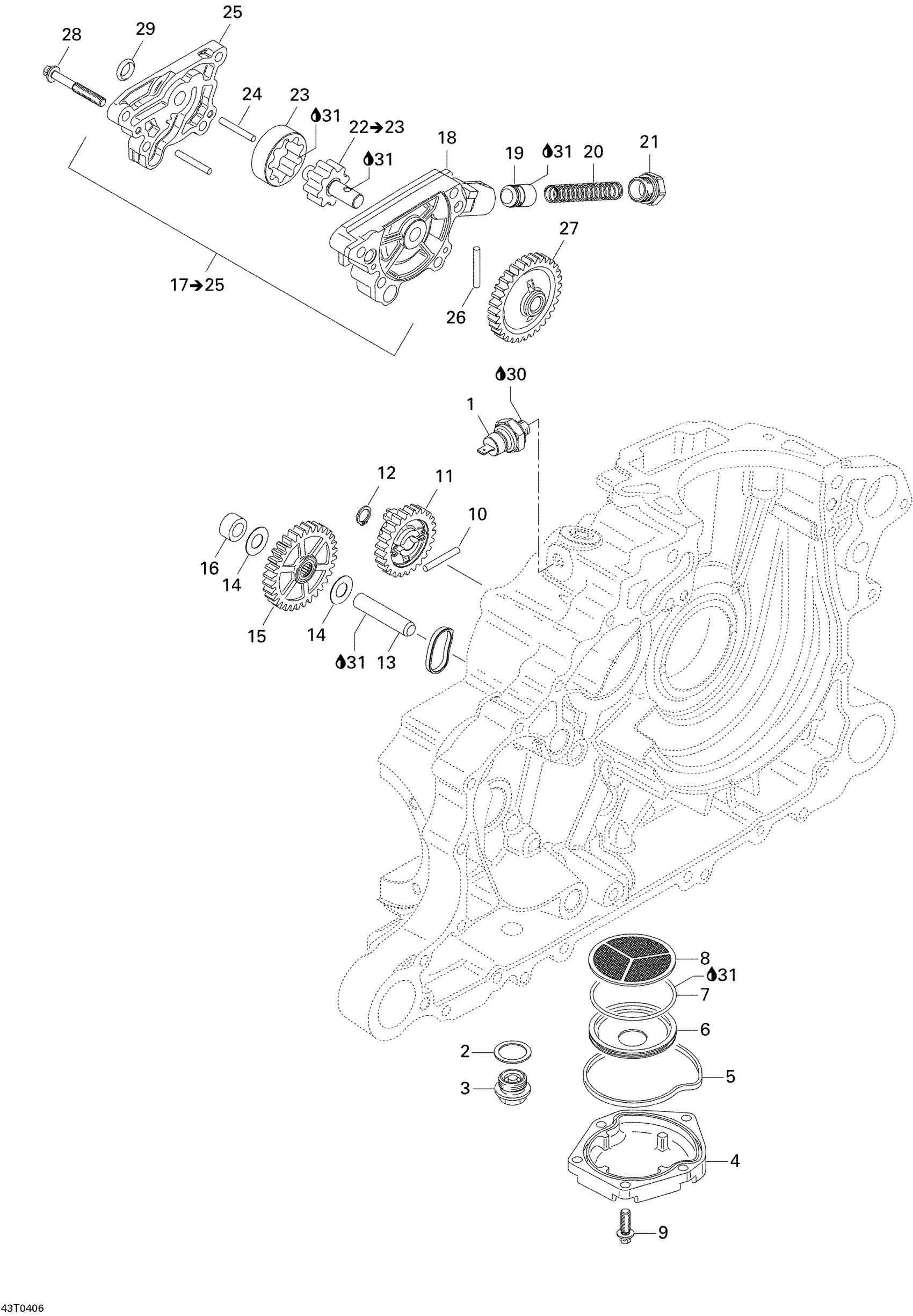

Can-Am Quest MAX, 2004 01- Engine Lubrication Diagram

#

Description
Price

1

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable

2

Crush Washer

420552280

$3.70

3

Drain Plug M18 X 1.5

420840278

$23.99

4

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

5

Rubber Ring

420650560

$16.86

6

Oil Collector

420256650

$50.99

7

O-Ring

420650697

$11.05

8

Oil Sieve

420256576

$19.49

9

Torx Flange Screw M6 X 25

420440234

$3.06

10

Needle Pin

420232431

$4.39

11

Idle Gear, 25 Teeth

420635191

$17.05

12

Snap Ring

420245330

$1.79

13

LOCATION PIN - Call your local BRP dealership

420229300

Unavailable

14

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

15

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

16

SPACER - Call your local BRP dealership

420247080

Unavailable

17

Oil Pump Ass'y | Includes 17 To 25

420296505

Unavailable

18

Oil Pump Housing

420610221

$96.49

19

Piston Valve

420256922

$12.70

20

Compression Spring

420238220

$8.09

21

Plug Screw M16

420641167

$19.49

22

Oil Pump Shaft

420220814

$132.49

23

Oil Pump Outer Rotor

420256935

$69.99

24

Needle Pin

420232431

$4.39

25

Oil Pump Cover

420610210

Unavailable

26

Needle Pin

420232431

$4.39

27

Oil Pump Gear, 32 Teeth

420635220

$20.99

28

Torx Flange Screw M6 X 45

420440324

$0.98

29

O-RING - Call your local BRP dealership

420250405

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
