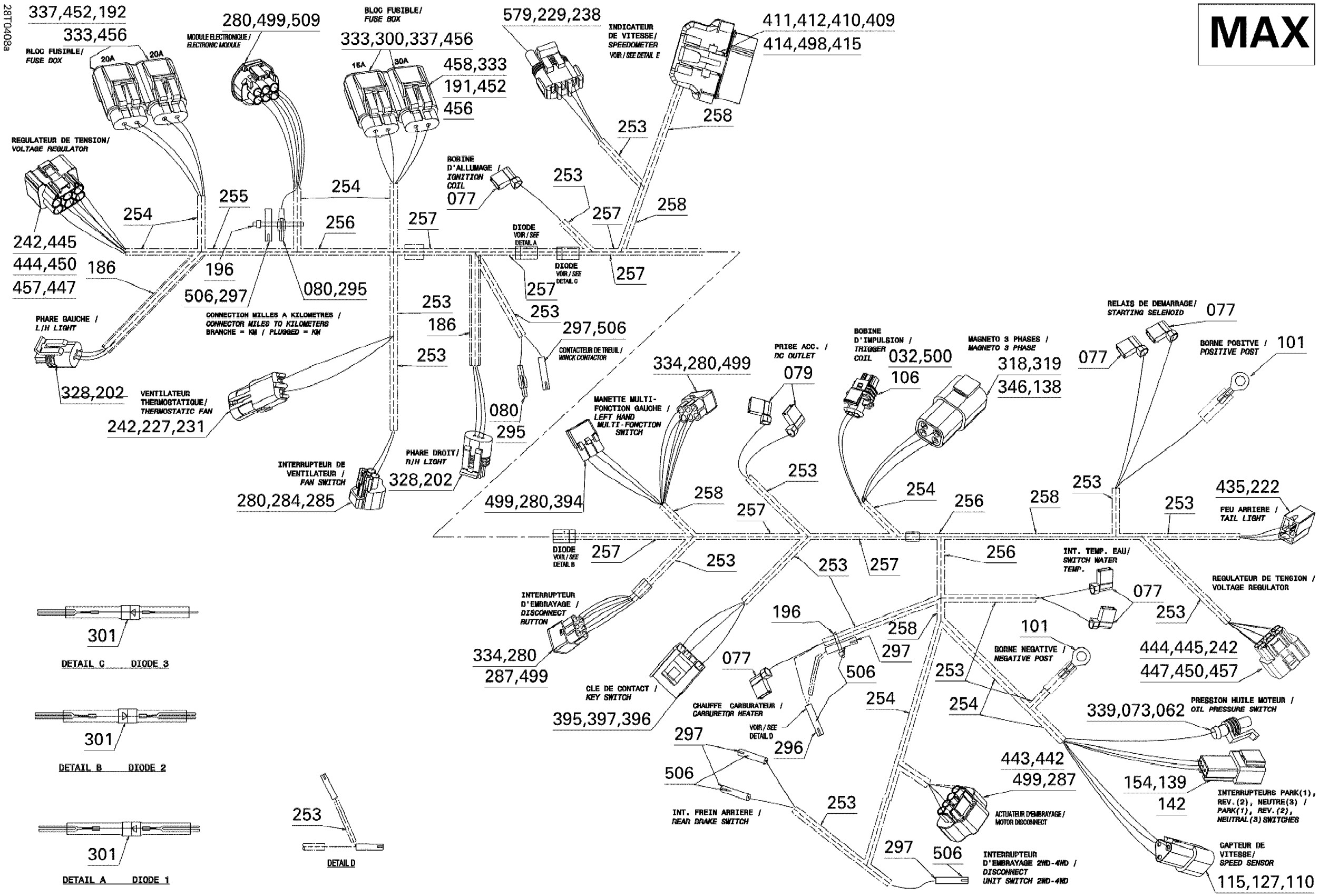

Can-Am Outlander MAX 400, 2004 10- Electrical Harness Diagram

#

Description
Price

1

Harness Ass'y | Includes Items 1 to 579

710000679

Unavailable

32

Female Terminal

278000998

$4.39

62

Female Terminal

278001014

$3.28

73

Wire Seal

278001013

$3.28

77

Female Terminal

409010300

$4.39

79

Female Terminal

710000038

$4.55

80

Male Terminal

278000230

$4.39

101

Open Barrel Terminal

278001392

$4.79

106

Male Housing, 2 Circuits

278001005

$19.49

110

Male Terminal

278000631

$4.39

115

Male Housing

278002378

$13.99

127

Male Lock, 3 Circuits

409207600

$3.19

138

Sealing Cap

293000052

$3.19

139

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

191

Fuse, 30 Amperes

410917200

$3.28

192

Fuse, 20 Amperes

409003900

$3.28

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

218

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

222

Female Housing

409204300

Unavailable

227

Male Terminal

409004300

$5.61

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

280

Female Terminal

409012100

$4.55

284

Seal

409012300

$4.54

285

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

287

Cap

710000080

$8.29

295

Female Terminal | DS 650 X

278001009

$3.19

296

Insulated Sheath

278000770

$7.90

297

Insulated Sheath

278001007

$3.58

300

Fuse, 15 Amperes

278000343

$3.28

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

319

Male Terminal

515175568

$9.12

328

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278001467

Unavailable

333

Fuse Holder

278001325

$8.79

334

Female Housing, 6 Circuits

710000081

$8.79

337

Female Terminal

710000113

$6.99

339

Male Housing, 1 Circuit

278001012

$16.86

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

394

Female Terminal Housing, 3 Circuits

710000275

Unavailable

395

Female Terminal

710000274

$9.59

396

Female Terminal Housing, 4 Circuits

710000272

$10.99

397

Lock, 4 Circuits

710000273

$9.59

409

Plug

515175812

$2.19

410

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

414

LOCK - Call your local BRP dealership

515175805

Unavailable

415

Female Terminal

515175806

$0.99

435

FEMALE TERMINAL - Call your local BRP dealership

409009500

Unavailable

442

Male Housing, 4 Circuits

710000329

$15.36

443

Female Terminal

710000335

$2.29

444

MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000336

Unavailable

445

JOINT SEAL - Call your local BRP dealership

710000337

Unavailable

447

SECONDARY LOCK - Call your local BRP dealership

710000339

Unavailable

450

CAP - Call your local BRP dealership

710000343

Unavailable

452

HOUSING COVER - Call your local BRP dealership

710000342

Unavailable

456

Cushion

278000805

$3.28

457

FEMALE TERMINAL - Call your local BRP dealership

710000356

Unavailable

458

Female Terminal

710000357

$7.69

498

Female Housing

710000399

$16.49

499

Wire Seal

710000402

$4.55

500

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

506

Female Terminal

710000421

$6.11

509

Female Terminal Housing, 6 Circuits

710000474

Unavailable

579

Wire Seal

710000504

$4.39
