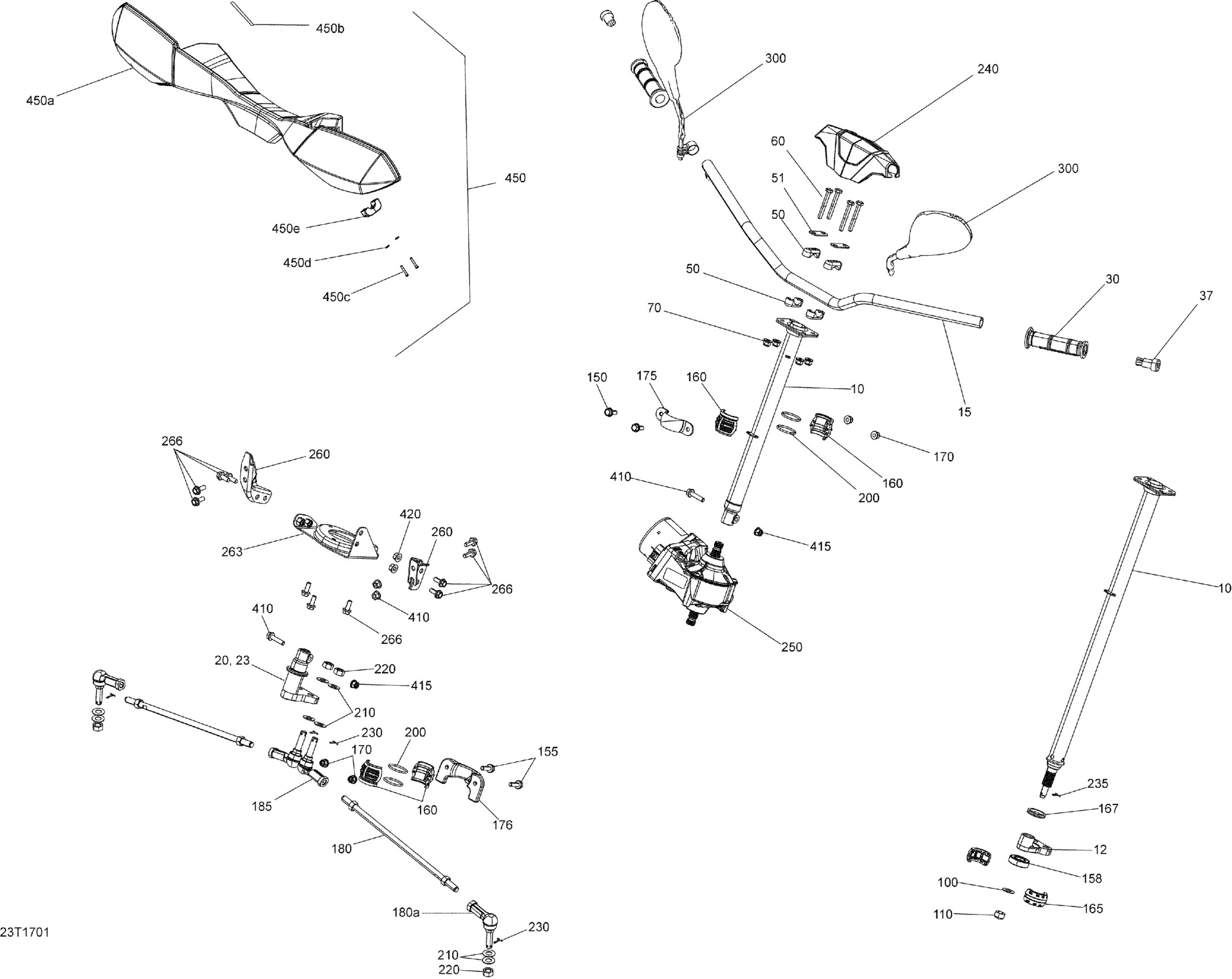

Can-Am 003 - Outlander L - 570 EFI 0001UHA00 0002CHA00 0002CHB00 0002CHC00 0002CHD00 0002CHE00 0002CHF00 0002EHA00 0002FHA00 0002FHB00 0002FHC00 0002FHD00 0002FHE00 0002GHA00 0002GHB00 0002GHC00 0002GHD00 0002THA00 0002THB00 0002THC00 0002THD00 0002UHA00 0002UHB00 0003ZHA00 0003ZHC00 0002EHB00 0002GHF00 07- Steering - All Models Diagram

Black, Upper Main Tube | Package-STD

709401545

$149.99

Main Tube Kit | Model With DPS

703501108

$74.99

Pitman Arm | Package-STD

709401542

$28.99

Black, Handle Bar

709401240

$69.99

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

Pitman Arm | Model XMR

703501161

$43.99

Handle Grip

709400493

$14.83

End Piece

709400449

$8.49

Steering Support

709401799

$22.49

Stiffner

709400509

$4.69

Hex. Screw M8 X 60

207086046

$2.85

Hex. Elastic Flange Nut M8

233281416

$1.48

Hardened Washer

706200281

$2.85

Hex. Flange Elastic Nut M12

250000047

$1.90

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682534

$2.11

Ball Bearing | Package-STD

503190396

$14.30

Spherical Half Bushing

709400783

$7.65

Spherical Half Bushing | Package-STD

709401370

$7.23

Seal

293250177

$7.29

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

Rod-Tie Ass'y | Incl 36

703501037

$110.99

LH Ball Joint

709402303

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Cotter Pin

250400034

$2.11

Cover

709400939

$24.99

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Bracket | Model With DPS

709402185

$28.99

Power Steering Support | Model With DPS

709401743

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

LH Mirror | Europe

709400406

$32.99

RH Mirror | Europe

709400407

$47.49

Hex. Flange Screw M8 X 35

207683544

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Nut M8

233081416

$1.15

Handle Guard Ass'y, XT

703100352

$98.49

Handle Bar Protector | XT

709400822

$90.99

DPS Decal

704902966

$14.49

Hex. Flange Screw K40 X 25

241142560

$2.64

Flat Washer | XT

211200035

$0.55

U-Clamp | XT

517303264

$11.99
