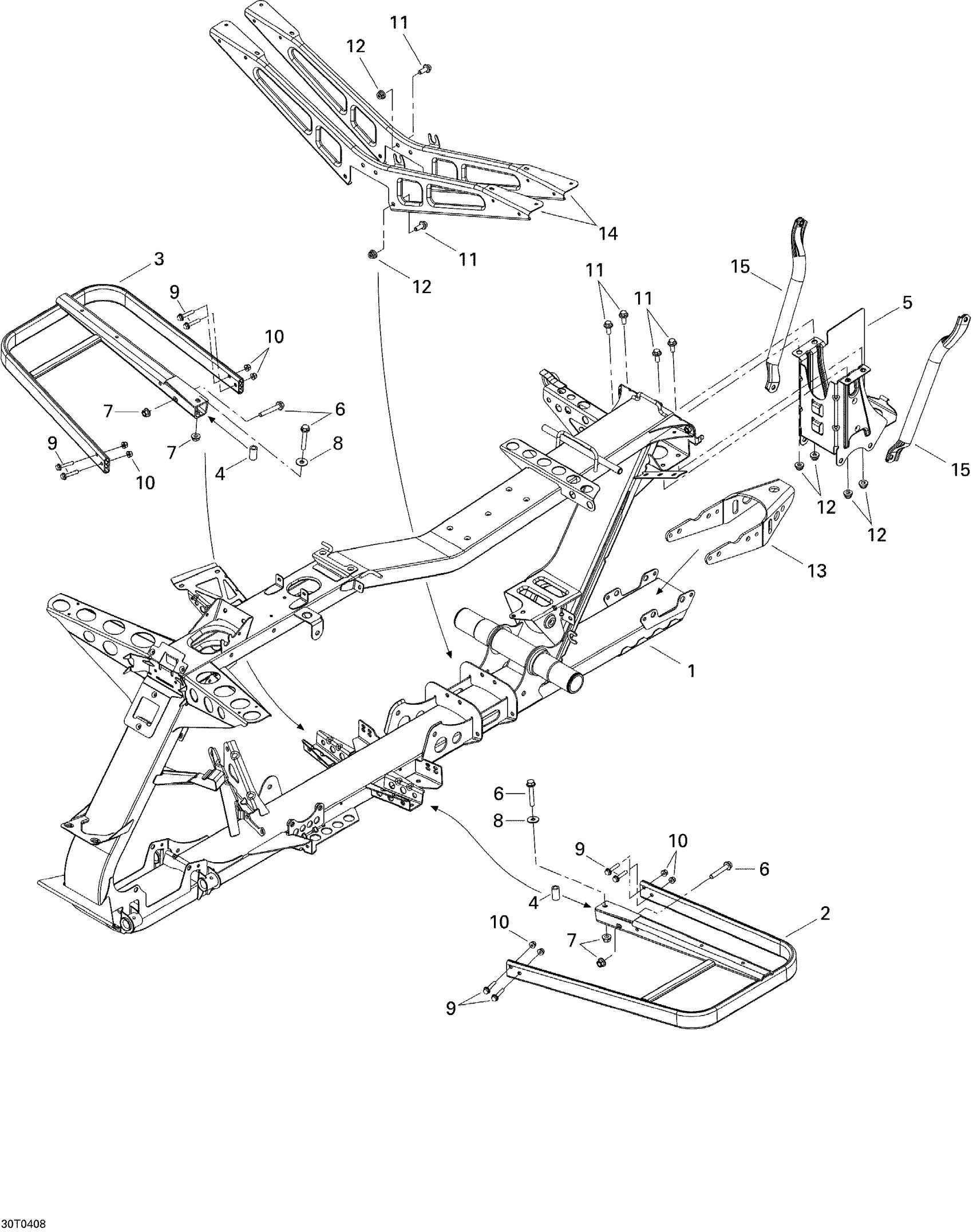

Can-Am Outlander MAX 400, 2004 09- Frame Diagram

Frame, Black

705200710

Unavailable

LH Footrest

705200526

Unavailable

RH Footrest

705200529

Unavailable

Footrest Bushing

705200645

Unavailable

Battery Support

705200939

Unavailable

Hex. Flange Screw M8 X 50

207685044

$1.69

Hex. Flange Nut M8

233081416

$1.15

Flat Washer 8 mm

234082410

$1.47

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Trailer Hook, Black

705200839

Unavailable

DIAGONAL BRACE - Call your local BRP dealership

705202393

Unavailable

Rear Brace

705200813

Unavailable
