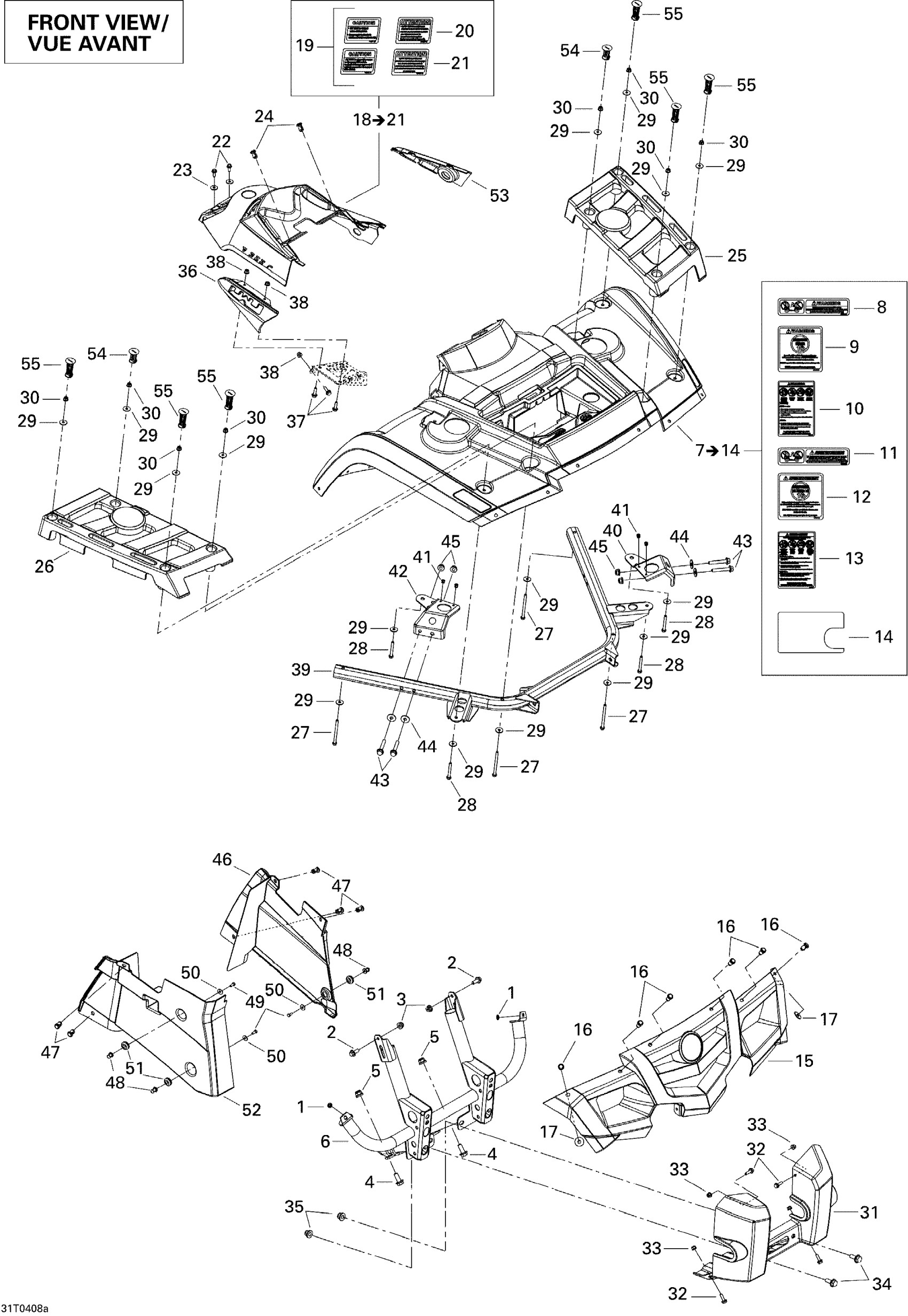

Can-Am Outlander MAX 400, 2004 09- Body (Front View) Diagram

#

Description
Price

1

Push Nut

732610072

$2.19

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Flange Screw M10 X 30

207603044

$2.11

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

BUMPER F KIT - Call your local BRP dealership

715900097

Unavailable

7

Red Front Fender Kit | Includes 16 to 22, Viper Red

715002329

$204.99

7

Front Fender Kit, Green | Includes 7 to 14

703500416

Unavailable

7

Yellow Front Fender Kit | Includes 16 to 22, Yellow

715002330

$204.99

8

Warning Decal, Front Load | English Version

704900453

Unavailable

9

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

10

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Front Fascia, Viper Red | Viper Red

705000432

Unavailable

15

FRONT FASCIA, LAURENTIAN GREEN - Call your local BRP dealership | Laurentian Green

705000734

Unavailable

15

Front Fascia, Yellow | Yellow

705000851

Unavailable

16

Tuflok Plastic Rivet

293150230

$1.47

17

Flat Washer 8 mm

234082410

$1.47

18

Console, Viper Red | Includes 4 to 7 / Viper Red

703500266

Unavailable

18

Console, Laurentian Green | Includes 4 to 7 / Laurentian Green

703500267

Unavailable

18

Console, Yellow | Includes 4 to 7 / Yellow

703500330

Unavailable

19

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Hex. Flange Screw M6 X 16

210261650

$1.67

23

Flat Washer

250200082

$0.42

24

Tuflok Plastic Rivet

293150230

$1.47

25

LH FRONT LUGGAGE RACK - Call your local BRP dealership

705000436

Unavailable

26

RH FRONT LUGGAGE RACK - Call your local BRP dealership

705000437

Unavailable

27

Hex. Screw M6 X 80

207168044

Unavailable

28

HEX. SCREW M6 X 50 - Call your local BRP dealership

207165044

Unavailable

29

Flat Washer

224061201

$1.37

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

32

Hex. Flange Screw M6 X 20

207662044

$2.00

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Hex. Flange Screw M10 X 25

207602544

$1.69

35

Hex. Flange Elastic Nut M10

233201414

$1.58

36

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

front support

705000895

Unavailable

40

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

41

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

42

RH Anchor Plate

705002997

$18.49

43

Hex. Flange Screw M8 X 45

207684544

$3.80

44

Flat Washer 8 mm

234082410

$1.47

45

Hex. Elastic Stop Nut M8

232581414

$0.56

46

LH Inner Fender

705000652

$39.99

47

Tuflok Plastic Rivet

293150230

$1.47

48

Knob

517303439

$4.55

49

Hex. Screw M5 X 12

207151244

$0.90

50

Washer | DS 650 X

391301600

$0.48

51

Grommet

709000582

$4.69

52

INNER FENDER - Call your local BRP dealership

705002640

$36.99

53

Valve Support

705000654

Unavailable

54

PROTECTION PLUG - Call your local BRP dealership

705000655

Unavailable

55

Protection Plug

705000656

Unavailable
