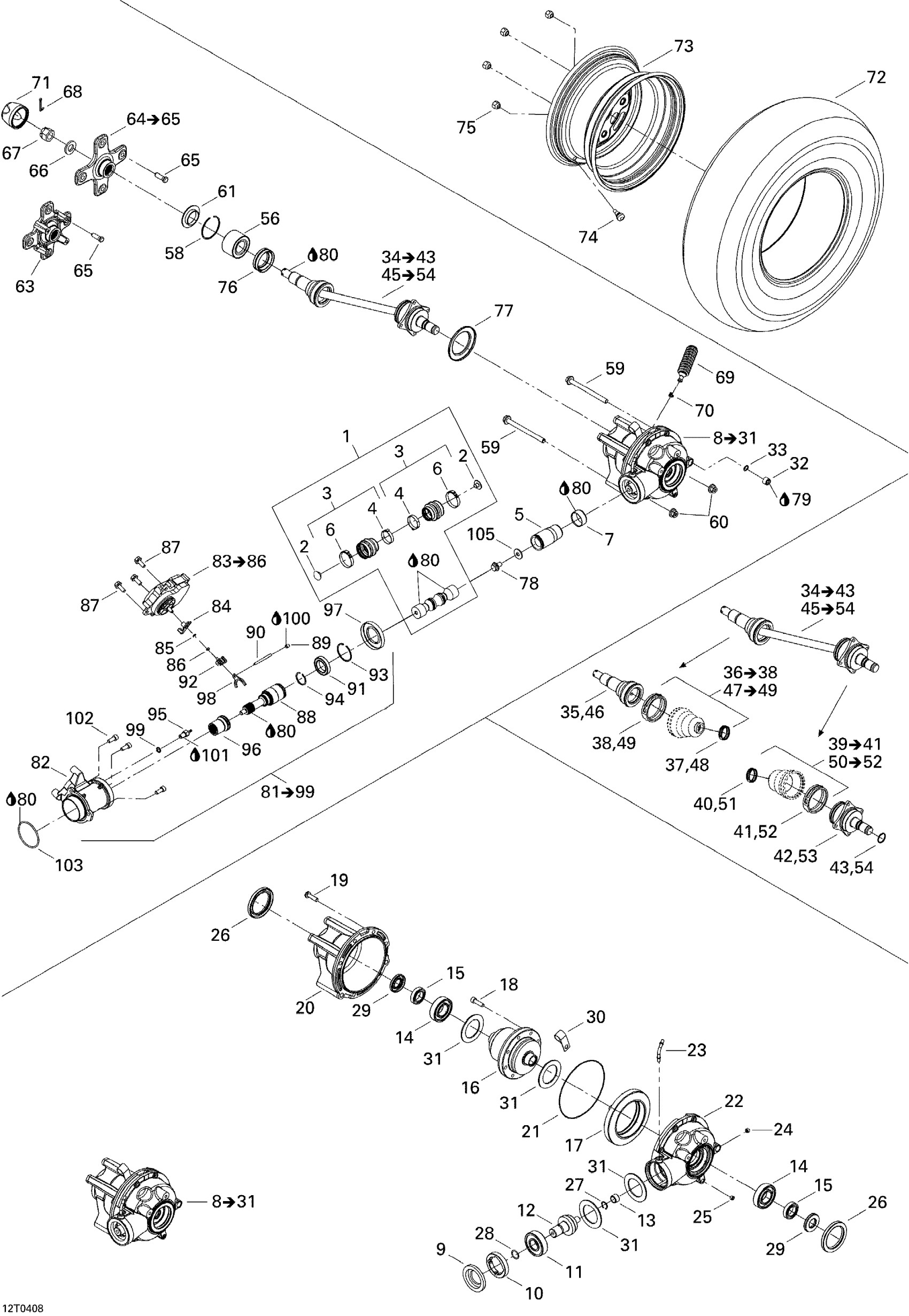

Can-Am Outlander MAX 400, 2004 05- Drive System, Front Diagram

#

Description
Price

1

Front Drive Axle Ass'y | 4X4 / Includes 1 to 5

705400912

$179.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

4

Collar | 4X4

705400148

Unavailable

5

Front Bushing Shaft Kit | 4X4

703500678

$114.99

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

7

Wear Ring | 4X4

705400036

$26.49

8

Front Differential Ass'y | 4X4 / Includes 8 to 30

705400260

Unavailable

9

Oil Seal | 4X4

705401481

$19.49

10

Nut | 4X4

705401603

$35.99

11

Ball Bearing | 4X4

705500260

$31.99

12

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

13

Needle Bearing | 4X4

705500261

$19.99

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing | 4X4

293350044

$31.99

16

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

17

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

18

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

19

Screw | 4X4

705401601

$10.49

20

Front Cover | 4X4

705400133

Unavailable

21

Seal | 4X4

705500265

$18.76

22

Front Cover | 4X4

705400261

Unavailable

23

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

24

Protector Plug

705500246

Unavailable

25

Drain Plug | 4X4

705500894

$11.49

26

Oil Seal | 4X4

293250137

Unavailable

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

28

O-Ring | 4X4

705500267

$7.65

29

Gasket | 4X4

705401618

$18.49

30

CLAMP - Call your local BRP dealership

705600311

Unavailable

31

Shim | 4X4

705401604

$57.99

32

Fill Level Plug | 4X4

705500504

$10.01

33

Copper Washer | 4X4

705500506

$0.45

34

RH CV Joint | Includes 31 - 40.

705400097

Unavailable

35

CV JOINT - Call your local BRP dealership | 4X4

705400154

Unavailable

36

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

37

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

38

Clamp | 4X4

705400180

Unavailable

39

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

40

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

41

Clamp | 4X4

705400181

Unavailable

42

RH PLUNGING JOINT - Call your local BRP dealership | 4X4

705400156

Unavailable

43

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

45

LH CV Joint | Includes 41 - 50.

705400096

Unavailable

46

CV JOINT - Call your local BRP dealership | 4X4

705400154

Unavailable

47

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

48

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

49

Clamp | 4X4

705400180

Unavailable

50

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

51

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

52

Clamp | 4X4

705400181

Unavailable

53

PLUNGING JOINT - Call your local BRP dealership | 4X4

705400155

Unavailable

54

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

56

Ball Bearing

293350150

$52.99

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Circlip

293370019

$4.68

59

Hex. Flange Screw M10 X 125

230602546

$7.41

60

Hex. Flange Elastic Nut M10

233201436

$2.11

61

EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4

705501122

Unavailable

63

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

65

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

64

Conical Spring Washer M18

250200171

$7.65

66

WASHER - Call your local BRP dealership

250200019

Unavailable

67

Hex. Flange Castellated Nut M18

232291413

$7.98

68

Cotter Pin

250400036

$2.11

69

Rubber Bellow | 4X4

705400552

$6.14

70

Tie Wrap 94 mm | 4X4

293750001

$1.03

71

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

72

Front Tire | Outlander XT

705400213

Unavailable

73

Front Rim

705400160

Unavailable

74

Rim Valve With Cap

705400193

$8.69

75

Steel Wheel Nut

250100042

$3.98

76

Oil Seal | 4X4

293250090

$24.49

77

WEAR SLEEVE - Call your local BRP dealership | 4X4

705400179

Unavailable

78

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

79

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

80

Synthetic Grease, 400 G

293550010

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

HOUSING - Call your local BRP dealership | 4X4

705400169

Unavailable

83

Actuator Kit | 4X4 / Includes 85 to 88

703500506

$429.99

84

Fork | 4X4

705400274

$18.99

85

Circlip | 4X4

293370042

$3.17

86

O-Ring | 4X4

293300108

Unavailable

87

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

88

UNION SHAFT - Call your local BRP dealership | 4X4

705400917

Unavailable

89

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

90

Dowell Pin | 4X4

250400025

$7.73

91

Ball Bearing | 4X4

705400249

$25.99

92

Slider | 4X4

705402139

$46.99

93

Circlip | 4X4

293370029

$5.19

94

Circlip | 4X4

293370030

$2.89

95

SWITCH - Call your local BRP dealership | 4X4

710000324

$28.99

96

Coupling Sleeve | 4X4

705400389

$31.99

97

Oil Seal | 4X4

293250138

$23.99

98

Shifter Lever Plate | 4X4

705401553

$20.99

99

Copper Washer

705601628

$4.44

100

Loctite 243, 10 ml

293800060

$21.49

101

Loctite 243, 10 ml

293800060

$21.49

102

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

103

O-Ring

293300091

$7.51

105

Flat Washer M10 | 4X4

250200014

$1.49
