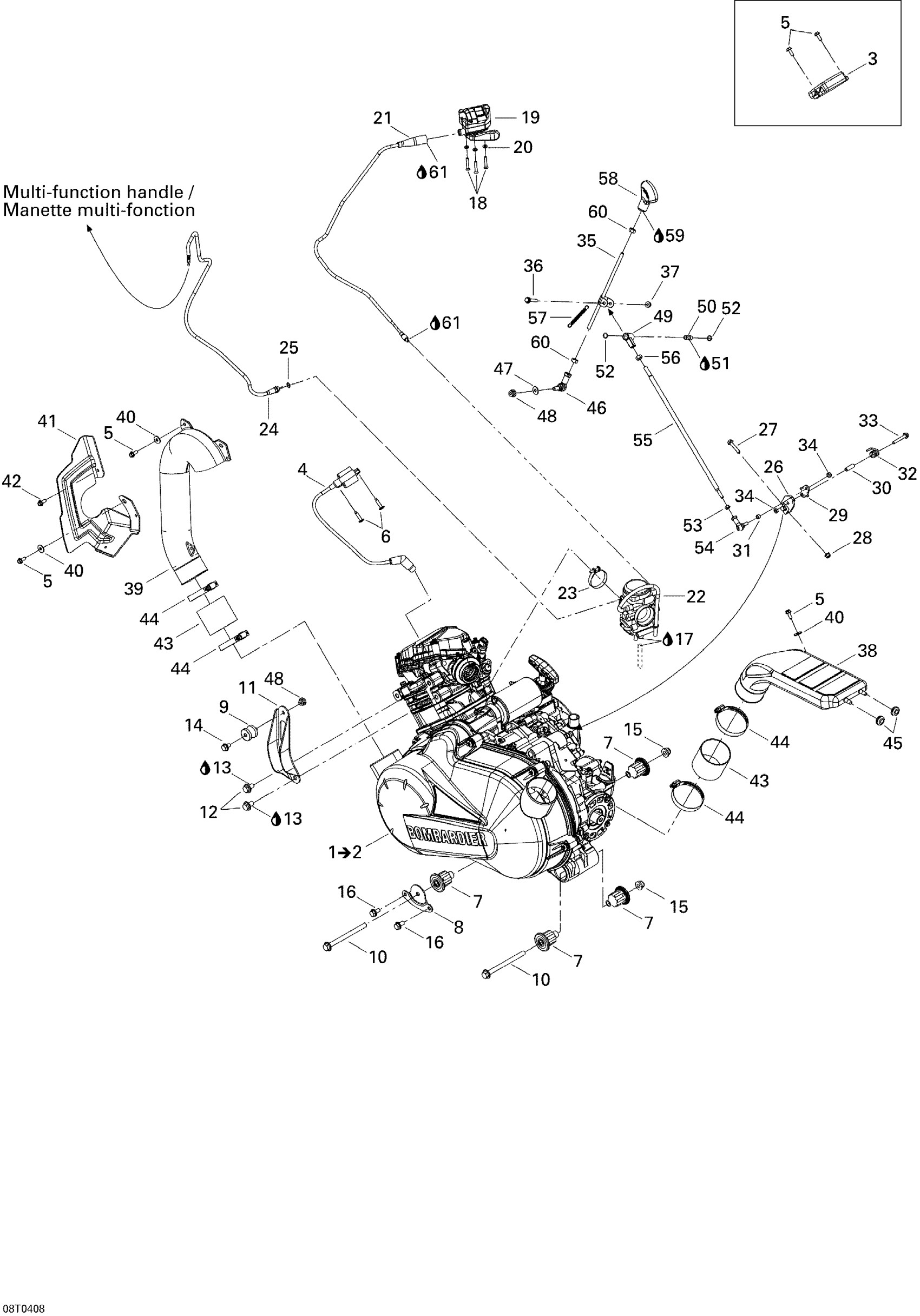

Can-Am Outlander MAX 400, 2004 01- Engine Diagram

#

Description
Price

1

Rotax 4 Strokes Engine “400” | Includes 1 - 2.

707000235

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$6.35

3

AMPLIFIER BOX - Call your local BRP dealership | 400HO

420664285

Unavailable

4

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.67

6

Torx Screw M6 X 25 | XT Models

250000728

$4.44

7

Anti-Vibration Mount

707000218

Unavailable

8

LH FRONT ENGINE BRACKET - Call your local BRP dealership

707000220

Unavailable

9

Rubber Isolator

707000949

$11.49

10

Hex. Flange Screw M10 X 125

230602546

$7.41

11

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

Unavailable

12

Hex. Flange Screw M10 X 25

207602544

$1.69

13

Loctite 243, 10 ml

293800060

$21.49

14

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

17

Glue Tube, Loctite 454, 20 G

413708300

$60.99

18

Socket Head Screw M5 X 25

205052588

$1.90

19

Throttle Handle | 4X4

707000595

$214.99

20

Flat Washer M5

234051410

$0.53

21

THROTTLE CABLE - Call your local BRP dealership

707000226

Unavailable

22

Carburator, Mikuni BSR33-49 | 400HO

707200190

Unavailable

23

GEMI CLAMP - Call your local BRP dealership

293650164

Unavailable

24

CHOKE CABLE - Call your local BRP dealership

707000228

$38.99

25

O-RING - Call your local BRP dealership

293300075

Unavailable

26

Lever

707000503

$38.49

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Pivot Plate

707000507

$9.23

30

Bushing

293900079

$8.89

31

Bushing | DS 650 X

293900104

$5.50

32

Spring

707000310

$10.43

33

Hex. Flange Screw M6 X 40

207664044

$2.22

34

Elastic Stop Nut M6

232561414

$0.55

35

Lever Arm

707000786

$38.99

36

Hex. Flange Screw M6 X 40

207664044

$2.22

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

AIR OUTLET - Call your local BRP dealership

707000361

Unavailable

39

Air Intake

707000261

Unavailable

40

Flat Washer

250200082

$0.42

41

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

Unavailable

42

Tuflock Phillips Plastic Screw

414745900

$1.69

43

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

44

Tridon Clamp

293650064

$8.29

45

Grommet

709000582

$4.69

46

RH Ball Joint

707001959

$36.99

47

Flat Washer 8 mm

234081410

$0.83

48

Hex. Elastic Stop Nut M8

232581414

$0.56

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$11.99

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

54

LH BALL JOINT - Call your local BRP dealership

707000545

$45.99

55

Threaded Rod

707000567

$30.99

56

Hex. Nut M8

232081414

$0.72

57

Spring

707000569

$9.69

58

Lever Handle

707000284

$19.99

59

Loctite 243, 10 ml

293800060

$21.49

60

Hex. Nut M8

232081414

$0.72

61

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
