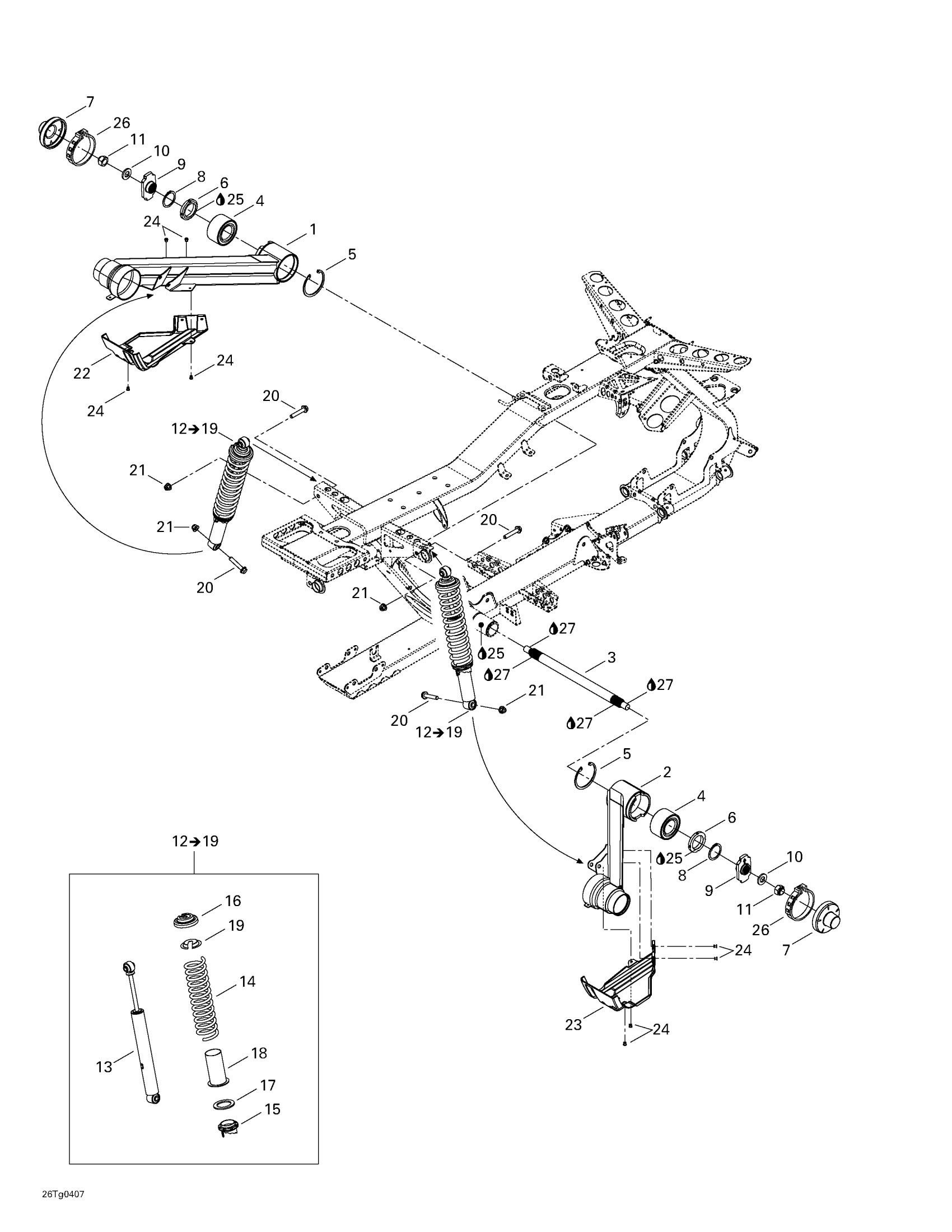

Can-Am Outlander 330/400 STD 2 X 4, 2004 08- Rear Suspension Diagram

#

Description
Price

1

LH Swing Arm

706000318

Unavailable

2

RH Swing Arm

706000320

Unavailable

3

Sway Bar

706001077

$116.49

4

Ball Bearing

293350037

$139.99

5

Circlip

293370041

$9.26

6

Nut

706000221

$20.99

7

Cover

706000749

$16.49

8

Circlip 45 mm

293370027

$4.14

9

Lever

706000548

$38.99

10

WASHER - Call your local BRP dealership

250200019

Unavailable

11

Elastic Stop Nut M18

232591414

$4.39

12

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

13

Rear Shock

706000391

$179.99

14

SPRING_COMPRESSION B-211 PAINTED - Call your local BRP dealership

706000245

Unavailable

REAR SPRING, BLACK - Call your local BRP dealership | Camo Color Models Only

706000289

Unavailable

15

Adjuster Ring

706002356

$18.49

16

Spring Stopper

706200881

$12.99

17

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

18

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

19

Cap

706200785

$4.69

20

Hex. Flange Screw M10 X 55

207605544

$3.38

21

Hex. Flange Elastic Nut M10

233201414

$1.58

22

LH PROTECTOR - Call your local BRP dealership

706000170

Unavailable

23

RH Protector

706000171

Unavailable

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Loctite 243, 10 ml

293800060

$21.49

26

Oetiker Clamp

293650163

Unavailable

27

Synthetic Grease, 400 G

293550010

Unavailable
