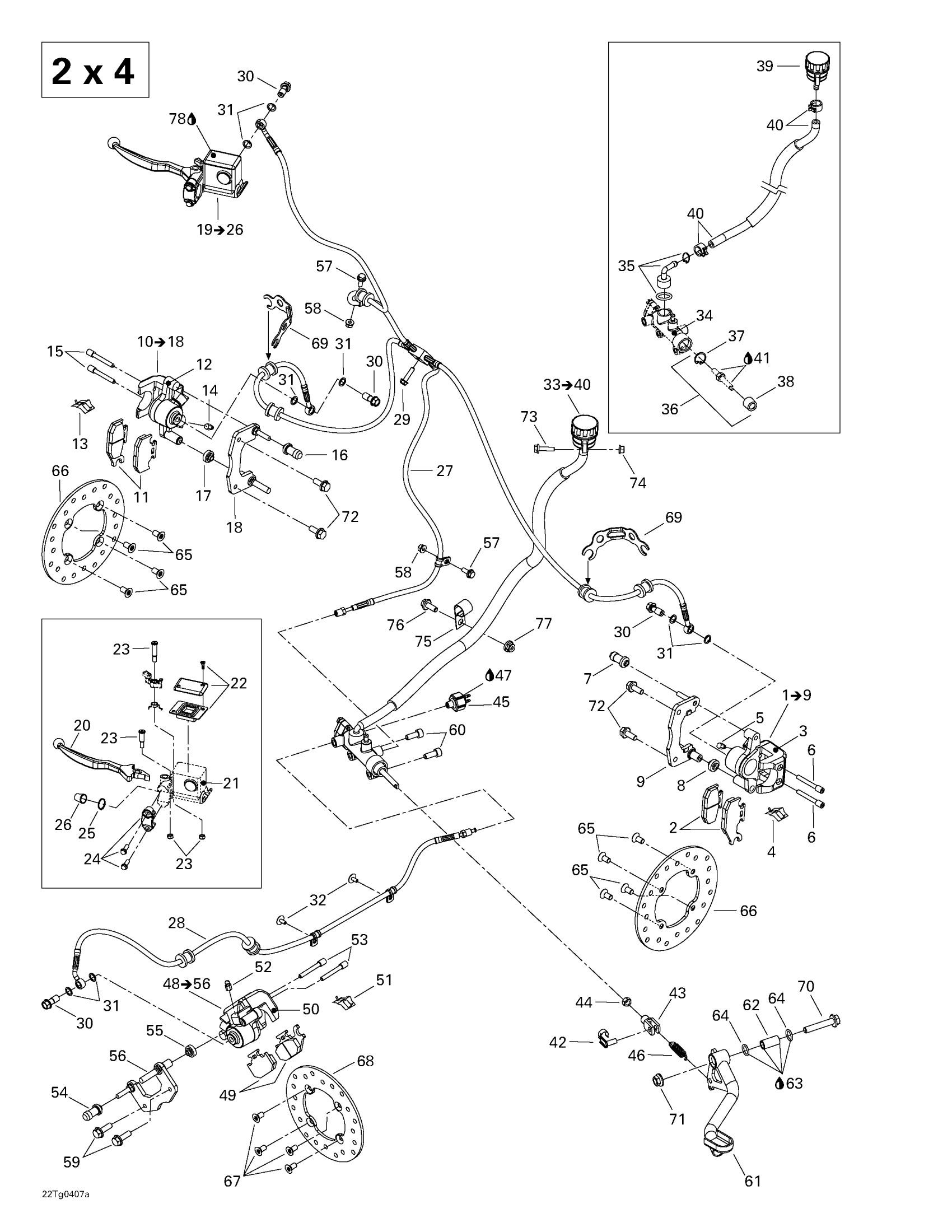

Can-Am Outlander 330/400 STD 2 X 4, 2004 06- Hydraulic Brake (2 X 4) Diagram

#

Description
Price

1

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600307

Unavailable

2

Brake Pad Kit

705600014

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

10

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600306

Unavailable

11

Brake Pad Kit

705600004

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

RH Caliper Support

705600299

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

20

Lever Arm

705600243

$54.99

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$24.99

23

Brake Lever Bolt Kit

705600246

$14.81

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Front Hose

705600352

Unavailable

28

Rear Hose

705600373

Unavailable

29

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

30

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

31

Copper Washer

705601628

$4.44

32

Pop Rivet 3/16"

390406500

$0.88

33

Rear Master Cylinder | Includes 33 to 40

705600254

$224.99

34

Piston Set

705600255

$64.49

35

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Circlip

705600068

Unavailable

38

Compression Boot

705600090

Unavailable

39

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

40

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Pin Kit

219702305

$34.99

43

Yoke

705600100

Unavailable

44

Hex. Nut M8

232081414

$0.72

45

Interrupteur *Brake Switch

710001345

$36.99

46

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

47

Was 293800013 Loctite 56765

219704454

$65.99

48

REAR CALIPER - Call your local BRP dealership | Includes 54 - 62.

705600263

Unavailable

49

Brake Pad Kit

705600014

$51.99

50

Piston Set

705600295

Unavailable

51

Spring

705600079

$15.81

52

Bleeding Screw

705600080

$16.87

53

Pin Set (2)

705600081

$20.49

54

Compression Boot

705600082

$10.06

55

Compression Boot

705600083

$10.06

56

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

57

Hex. Flange Screw M6 X 16

207661644

$0.74

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

59

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

61

BRAKE PEDAL - Call your local BRP dealership

705600265

Unavailable

62

SPACER - Call your local BRP dealership

705600283

Unavailable

63

Synthetic Grease, 400 G

293550010

Unavailable

64

O-RING - Call your local BRP dealership

293300053

Unavailable

65

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

66

Disk Brake

705600604

$50.99

67

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

68

Disk Brake

705600604

$50.99

69

Hose Support

705600284

Unavailable

70

Hex. Flange Screw M10 X 55

207605544

$3.38

71

Hex. Flange Elastic Nut M10

233201414

$1.58

72

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

73

Hex. Flange Screw M6 X 25

207662544

$0.64

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

75

CLAMP - Call your local BRP dealership

705600311

Unavailable

76

Hex. Flange Screw M8 X 20

207682044

$1.15

77

Hex. Flange Elastic Nut M8

233281414

$1.47

78

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99
