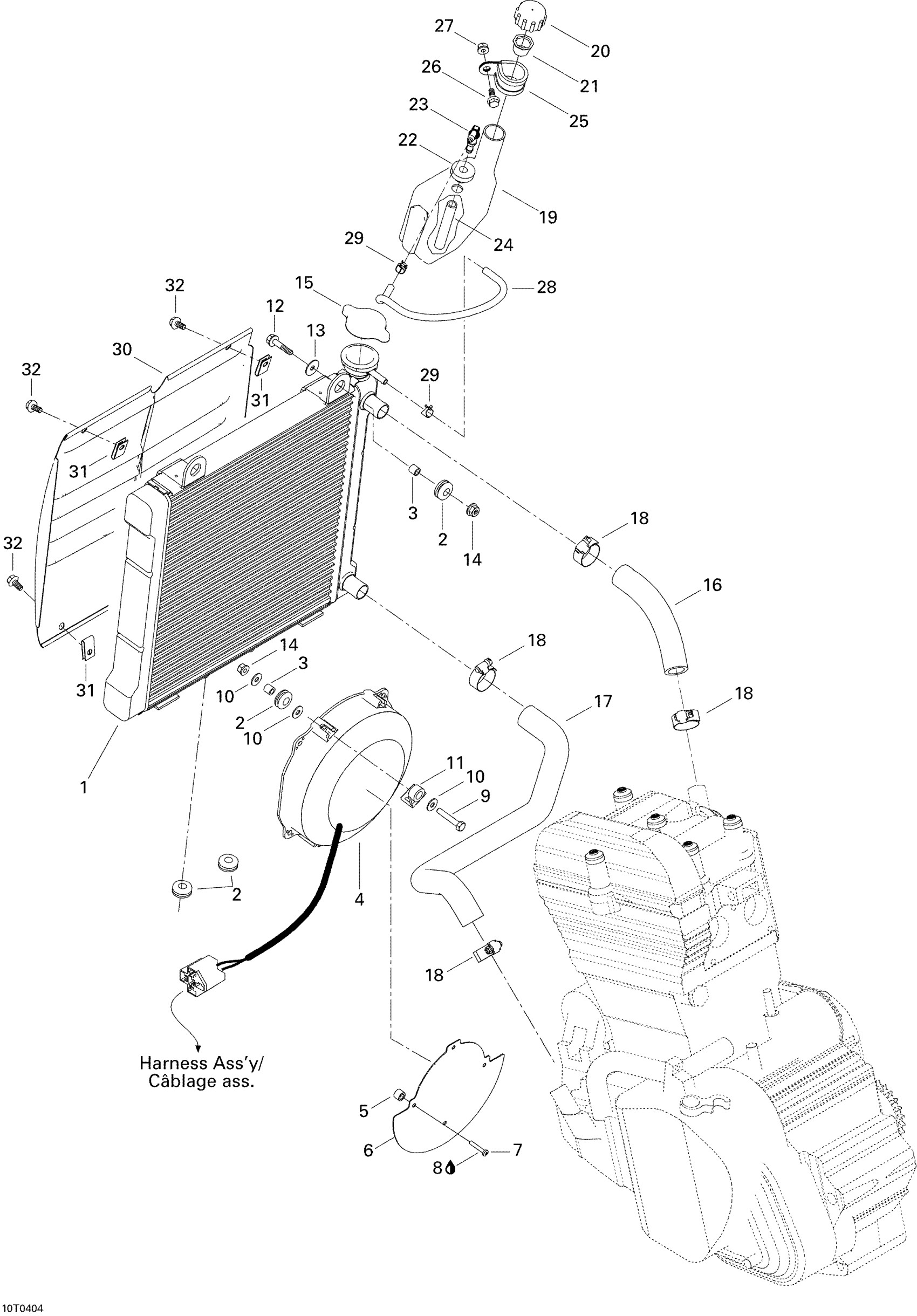

Can-Am DS 650/DS 650 Baja/X, 2004 01- Cooling System Diagram

#

Description
Price

1

Radiator

709200070

Unavailable

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

FAN ASSY - Call your local BRP dealership

709200092

Unavailable

5

Spacer

707000058

$13.49

6

Heat Shield

709200041

Unavailable

7

Tapping Screw M4.2 X 25

209642590

Unavailable

8

Loctite 271, 10 ml

293800005

$26.99

9

Hex. Flange Screw M6 X 35

207063544

$1.37

10

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

11

Fan Support

709200104

Unavailable

12

Hex. Flange Screw M6 X 25

207662544

$0.64

13

Flat Washer

224060201

$1.26

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Radiator Pressure Cap

709200207

$25.49

16

Radiator Inlet Hose

709200021

Unavailable

17

Radiator Outlet Hose

709200022

Unavailable

18

Tridon Gear Clamp

293650051

$4.19

19

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

20

TANK CAP - Call your local BRP dealership

709200009

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

22

Grommet

709200285

$9.69

23

Elbow Male Connector

414580600

$4.23

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

25

Hose Anchor

709200036

$11.12

26

Hex. Flange Screw M6 X 16

207661644

$0.74

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

29

Spring Clamp

414554800

$0.88

30

Radiator Protector

709200037

Unavailable

31

Panel Nut M6 X 1.0

250100198

$2.11

32

Hex. Flange Screw M6 X 12

207661244

$2.11
