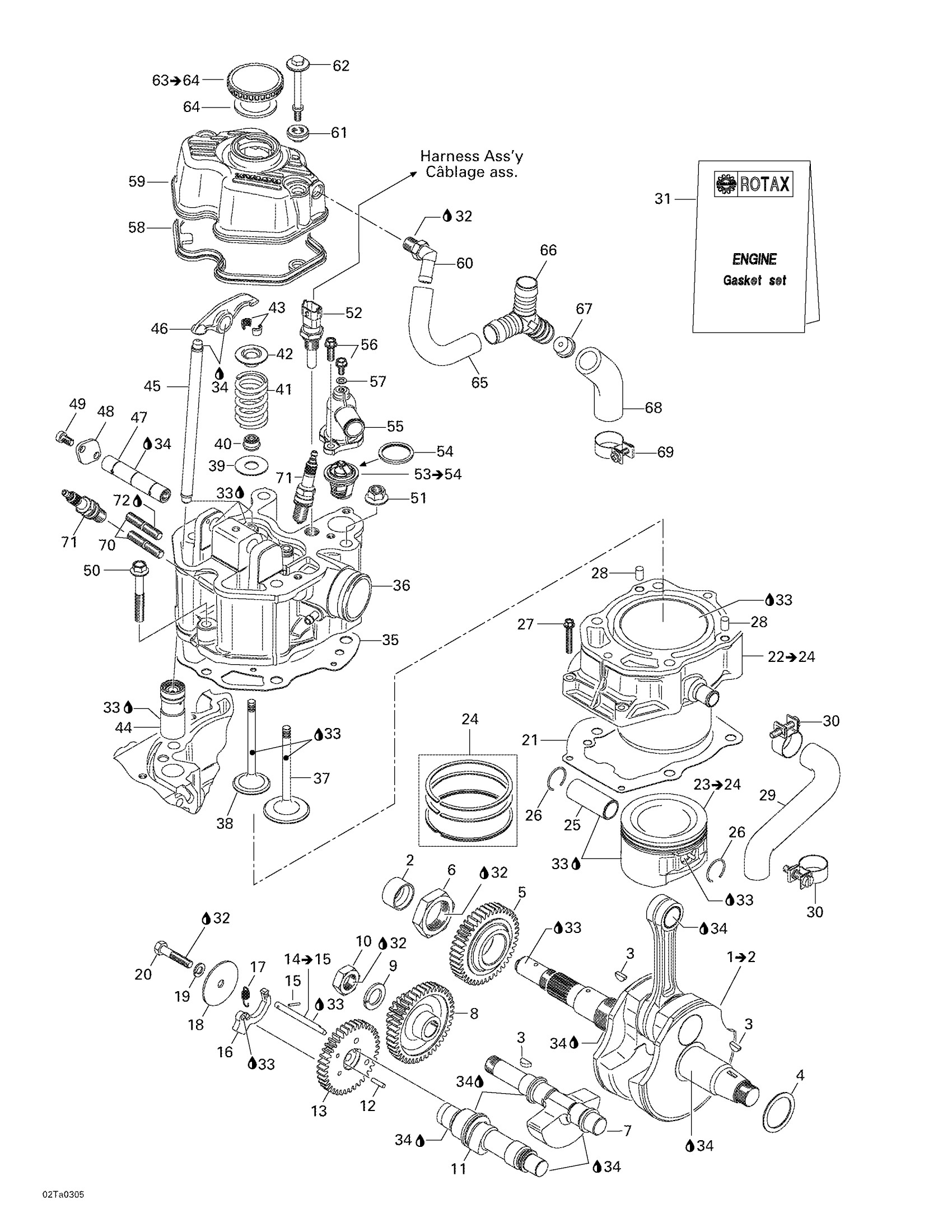

Can-Am Traxter XL, 7571, 2003 01- Crankshaft, Pistons And Cylinder Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 9 - 10.

711295893

Unavailable

2

Spacer

711247070

Unavailable

3

Woodruff Key 4 X 5

420246570

$3.38

4

Adjusting Washer 35 x 45 x 1.3

711427505

Unavailable

Adjusting Washer 35 x 45 x 1.5

711427506

Unavailable

Adjusting Washer 35 x 45 x 1.8

711427507

Unavailable

5

Mating Gear (42 Teeth)

711635011

Unavailable

6

Nut M34

711842605

Unavailable

7

Balance Shaft

711220470

Unavailable

8

Balancing Gear Double

711635100

Unavailable

9

Lock Washer 18 mm

290945757

Unavailable

10

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

11

Cam Shaft

711220462

Unavailable

12

Needle Pin

420232420

$4.01

13

Cam Shaft Gear (38 Teeth)

711634956

Unavailable

14

Deko Shaft Ass'y

711220615

Unavailable

15

Groove pin

420929555

Unavailable

16

Centrifugal Weight

711231050

Unavailable

17

Tension Spring

711239570

Unavailable

18

Washer

711244260

Unavailable

19

Washer-Lock Din.128

420945832

$1.15

20

Hex. Screw M8 X 40

207084044

$1.15

21

CYLINDER GASKET - Call your local BRP dealership

711650430

Unavailable

22

Cylinder/Piston

711613177

Unavailable

23

Piston 89 mm & Ring Set | Includes 5 - .

711296110

Unavailable

24

Piston Ring Set

711296114

Unavailable

25

Piston Pin

420216225

$31.99

26

Circlip 22 mm

711245431

Unavailable

27

Hex. Flange Screw M6 x 35

711941126

Unavailable

28

Center Pin 8 X 12

420632010

$4.01

29

Water Cooling Hose

711222285

Unavailable

30

Clamp

711951760

Unavailable

31

Gasket Set Engine

711296372

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Was 420297616 Klueber Grease, 60g

219704464

$23.99

35

Cylinder Head Gasket

711650446

Unavailable

36

Cylinder Head

711613375

Unavailable

37

Inlet Valve 42 mm

711254050

Unavailable

38

Inlet Valve 34 mm

711254062

Unavailable

39

THRUST WASHER - Call your local BRP dealership

420227980

Unavailable

40

Valve Seal

420230810

Unavailable

41

Valve Spring

711239500

Unavailable

42

Valve Spring Retainer

711254100

Unavailable

43

Valve Cotter

711253090

Unavailable

44

Valve Hydraulic Tappet

420854099

$114.99

45

Push Rod

711854575

Unavailable

46

Rocker Arm

711254083

Unavailable

47

Rocker Arm Shaft

711254110

Unavailable

48

Holding Strip

711244250

Unavailable

49

Socket Head Screw M6 x 10

711241681

Unavailable

50

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

51

Hex. Flange Nut M10

233101414

$4.97

52

Temperature Sensor

278002895

$39.99

53

Thermostat | Includes 53 to 54

420222495

$38.99

54

Thermostat Gasket

420650300

$8.57

55

Thermostat Cover

711222560

Unavailable

56

Hex. Flange Screw M6 x 16

711241751

Unavailable

57

Sealing Washer

404146600

$2.97

58

Valve Cover Gasket

711650450

Unavailable

59

Valve Cover

711211835

Unavailable

60

Angular Tube

420922242

$14.83

61

Rubber Bushing

711260050

Unavailable

62

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

$25.99

63

Bayonet Filler Cap | Includes 63 - 64.

711974644

Unavailable

64

Gasket Ring

711650990

Unavailable

65

Formed Hose

711222610

Unavailable

66

Y Fitting

711874380

Unavailable

67

Fitting

711222590

Unavailable

68

Formed Hose

711222600

Unavailable

69

Gear Clamp

711251222

Unavailable

70

Stud M8 x 23

711940366

Unavailable

71

Spark Plug, NGK/DR8EA

707000008

$4.23

72

Sealant Loctite 648

219703000

$45.99
