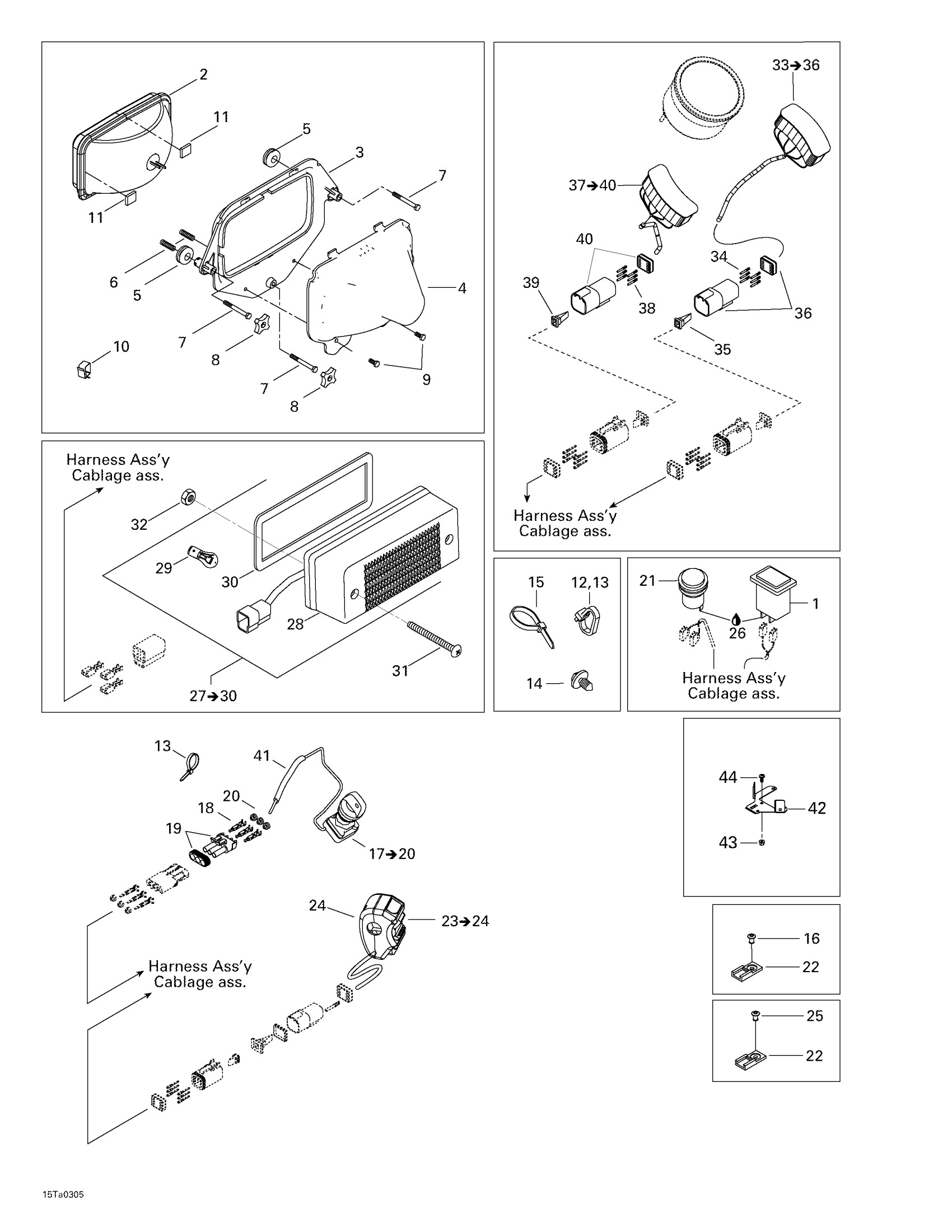

Can-Am Traxter XL, 7565, 2003 10- Main Harness And Electrical Accessories Diagram

#

Description
Price

1

HOUR METER - Call your local BRP dealership

710000161

Unavailable

2

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

3

Head Lamp Support

705000474

Unavailable

4

Protector

705000023

Unavailable

5

Grommet

709000582

$4.69

6

Spring

517168600

$7.39

7

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

8

Handle

572106600

$10.33

9

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

10

Clip

414227300

$1.67

11

Rubber Pad

293830088

Unavailable

12

Tie-Rap 180 mm

414115200

$0.11

13

Tie Wrap 142 mm

293750002

$1.25

14

Mount Dart

293730040

$1.04

15

Tie Wrap 368 mm

293750008

$1.04

16

Pop Rivet 3/16"

390402400

$0.35

17

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

17

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

17

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

18

Female Terminal

278000223

$3.19

19

Male Housing, 3 Circuits

278000273

$9.59

20

Wire Seal

278000218

$4.39

21

Outlet Power Kit, 12 Volts

861507200

$36.99

22

Clip

270000141

$11.49

23

Multi-Fonction Switch | Includes 25 to 29

710000015

Unavailable

24

BACK COVER - Call your local BRP dealership

710000173

Unavailable

25

Pop Rivet 3/16"

390402200

$0.35

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Tail Light Housing

710000102

Unavailable

28

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

29

Bulb

520000758

$9.10

30

GASKET - Call your local BRP dealership

710000129

Unavailable

31

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

32

Hex. Flange Elastic Nut M5

233251414

$1.04

33

RH Warning Lamp | Includes 33 - 36.

710000419

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

LH Warning Lamp

710000008

Unavailable

38

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

39

Male Lock, 6 Circuits

409014600

Unavailable

40

Male Terminal Housing, 6 Circuits

409015200

Unavailable

41

Protector Tube

710000171

Unavailable

42

Housing Support, Black

710000159

Unavailable

43

Elastic Stop Nut M5

232551414

$0.87

44

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable
