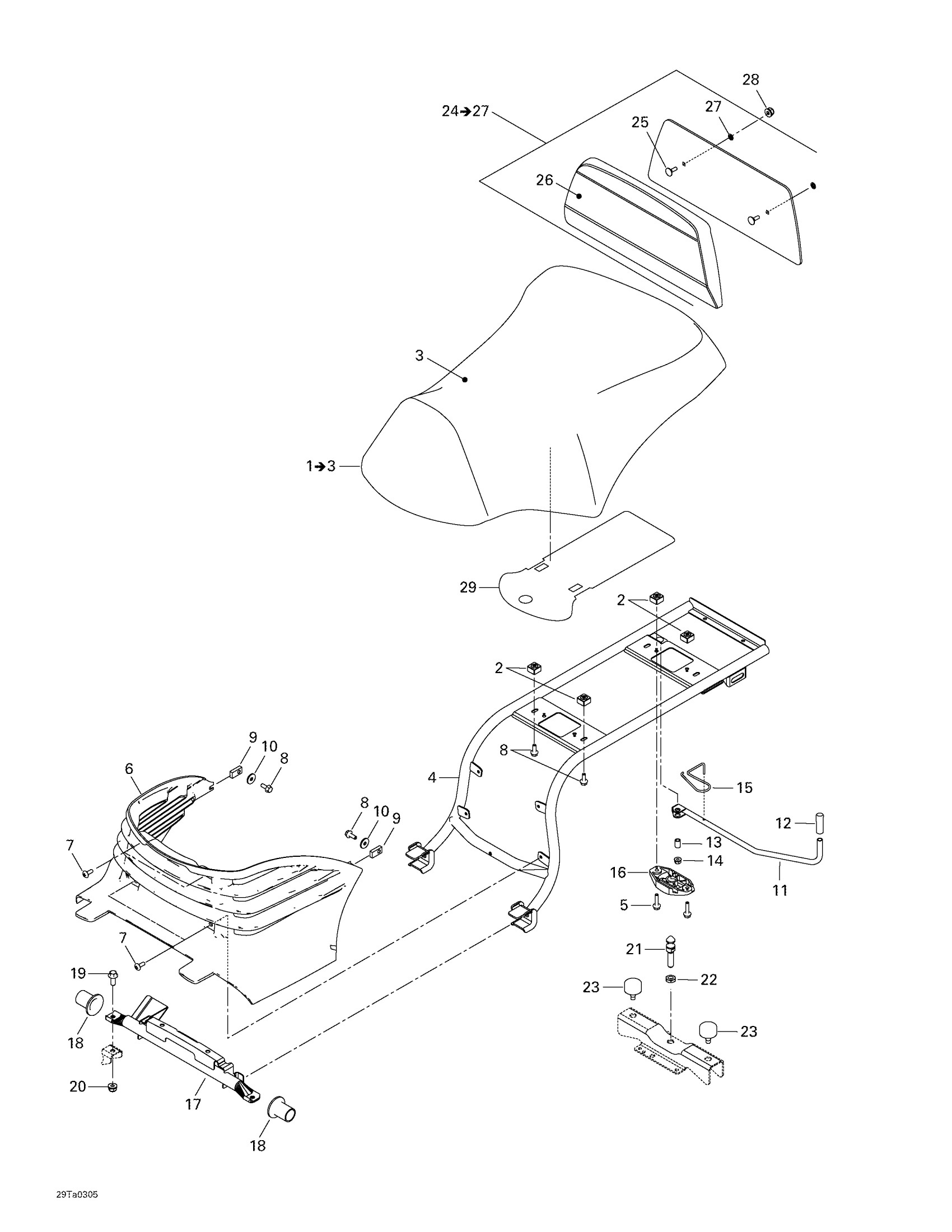

Can-Am Traxter XL, 7565, 2003 09- Seat Diagram

#

Description
Price

1

Seat-Assy | (7489) (7448 From S/N v000709)

708000099

Unavailable

2

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

3

Cover Seat

708000066

Unavailable

4

Seat Support, Black

708000069

Unavailable

5

Hex. Flange Screw M6 X 25

207662544

$0.64

6

Engine Cover

705000187

Unavailable

7

Hex. Forming Screw M6 X 10

210261050

$1.69

8

Hex. Flange Screw M6 X 16

207661644

$0.74

9

Nut Housing M6

708000042

Unavailable

10

Flat Washer

224061201

$1.37

11

Lever, Black

708000074

Unavailable

12

Vinyl Cap, Black

708000087

Unavailable

13

Sleeve

293900078

$13.71

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

SPRING - Call your local BRP dealership

708000073

Unavailable

16

Latch Base

708000034

Unavailable

17

Seat Pivot, Black

708000044

Unavailable

18

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

19

Hex. Flange Screw M8 X 20

207682044

$1.15

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

22

Hex. Jam Nut M10

232100600

$2.22

23

Rubber Stopper

708000758

$12.99

24

BACKREST COVER ASS'Y - Call your local BRP dealership | Includes 46 to 50

708000079

Unavailable

25

CARRIAGE BOLT M6 X 30

207763060

Unavailable

26

Backrest Cover

708000078

Unavailable

27

Locking Nut

250100020

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Reflective Sheet

708000029

Unavailable
