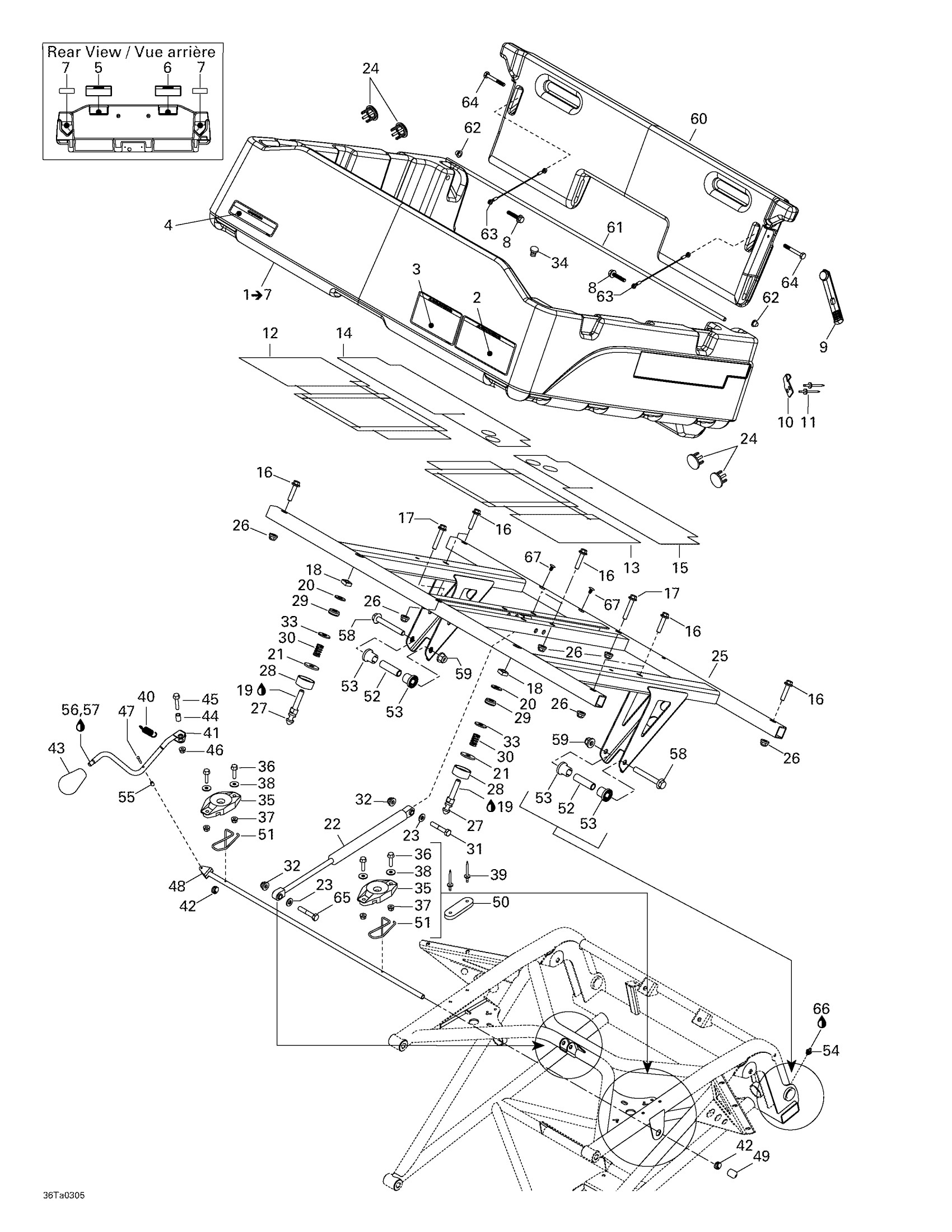

Can-Am Traxter XL, 7565, 2003 09- Rear Cargo Box Diagram

#

Description
Price

1

Box Kit (XL) | Includes 1 - 7.

703500158

Unavailable

2

Warning Label (English)

704900132

Unavailable

3

Warning Label (English)

704900373

Unavailable

4

Warning Label (English)

704900134

Unavailable

5

Warning Label (English)

704900137

Unavailable

6

Warning Label (English)

704900138

Unavailable

7

REAR REFLECTOR - Call your local BRP dealership

704900128

Unavailable

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

9

Panel Bracket

705000297

Unavailable

10

LATCH SUPPORT - Call your local BRP dealership

291000166

Unavailable

11

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

12

RH Heat Shield

705000313

Unavailable

13

LH Heat Shield

705000318

Unavailable

14

RH Heat Shield

705000316

Unavailable

15

LH Heat Shield

705000319

Unavailable

16

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

17

Hex. Flange Screw M8 X 50

207685044

$1.69

18

Square Nut M10

232802412

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Washer

503175800

$3.28

21

WASHER - Call your local BRP dealership

506148100

Unavailable

22

Gas Shock

705000261

Unavailable

23

Flat Washer 8 mm

234081410

$0.83

24

PROTECTOR CAP - Call your local BRP dealership

293000096

Unavailable

25

Box Support

705000604

Unavailable

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Stud Latch

291000664

Unavailable

28

Rubber Pad

293830025

Unavailable

29

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

30

Spring

705000307

Unavailable

31

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Flat Washer M10 | 4X4

250200014

$1.49

34

Cap

705000323

Unavailable

35

Latch Base

708000034

Unavailable

36

Hex. Flange Screw M6 X 25

207662544

$0.64

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Flat Washer M6, Stainless

234062600

$0.77

39

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

41

Lever, black

705000253

Unavailable

42

SLEEVE - Call your local BRP dealership

705000292

Unavailable

43

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

44

Sleeve

293900078

$13.71

45

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

ROUND HEAD RIVET - Call your local BRP dealership

293150084

Unavailable

48

CENTRAL TUBE, BLACK - Call your local BRP dealership

705000289

Unavailable

49

CAP - Call your local BRP dealership

705000300

Unavailable

50

Rubber Support

705000299

Unavailable

51

SPRING - Call your local BRP dealership

705000259

Unavailable

52

Internal Bushing

706200061

Unavailable

53

Cushion

706200063

Unavailable

54

Grease Fitting

408200700

$3.49

55

RING HOLDER - Call your local BRP dealership

705000305

Unavailable

56

Was 293800041 Loctite Primer 7649

219704458

$39.99

57

Loctite 243, 10 ml

293800060

$21.49

58

Hex. Flange Screw M10 X 70

207607046

$2.96

59

Hex. Flange Nut M10

233001414

Unavailable

60

Panel

705000220

Unavailable

61

Pivot Tube, black

705000294

Unavailable

62

Pushnut Cap Type 3/8 | (7489) (7448 From S/N v000709)

250100026

Unavailable

63

PANEL CABLE - Call your local BRP dealership

705000296

Unavailable

64

HEX. PLASTITE SCREW M6.81 X 45 - Call your local BRP dealership

243164540

Unavailable

65

Hex. Screw M8 X 45

207084544

$1.48

66

Synthetic Grease, 400 G

293550010

Unavailable

67

Mount Dart

293730040

$1.04
