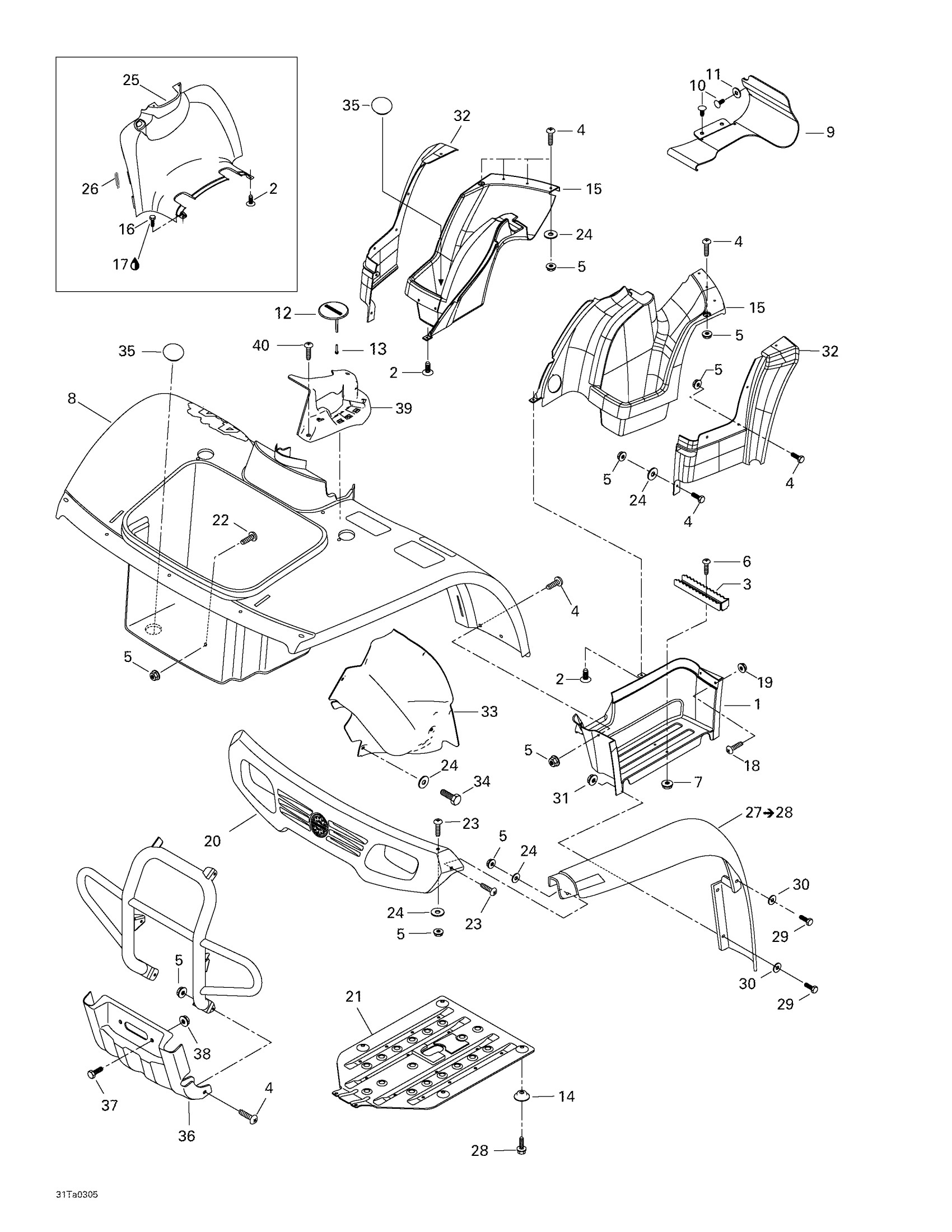

Can-Am Traxter XL, 7565, 2003 09- Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Black

705000017

Unavailable

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

Unavailable

2

Black, Dart

293730011

$0.99

3

Footrest, Black

705000631

Unavailable

4

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Front Fender

703500243

Unavailable

9

Air Shield

705000413

Unavailable

10

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

11

Washer | DS 650 X

391301600

$0.48

12

Steering Cover

705000232

Unavailable

13

Hex. Flange Screw K40 X 16

241141660

$1.48

14

CUP - Call your local BRP dealership

705200533

Unavailable

15

Rear Fender RH (Green)

705000221

Unavailable

Rear Fender LH (Green)

705000222

Unavailable

16

Hex. Flange Screw M6 X 12

207661244

$2.11

17

Loctite 243, 10 ml

293800060

$21.49

18

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

21

Skid Plate

705200535

Unavailable

22

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

23

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

24

Flat Washer

224060201

$1.26

25

Tank Cover

705000010

Unavailable

26

Windshield Latch

570023800

$4.49

27

LH Front Mudguard Kit | Includes 35 - 36.

703500014

Unavailable

RH Front Mudguard Kit

703500015

Unavailable

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

29

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

30

Flat Washer

224060201

$1.26

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

LH Protector

705000224

Unavailable

RH Protector

705000225

Unavailable

33

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

34

Hex. Flange Screw M6 X 16

210261650

$1.67

35

Rubber Cover

570041600

Unavailable

36

Front Protection Plate, black

705000135

Unavailable

37

Hex. Flange Screw M10 X 25

207602544

$1.69

38

Hex. Flange Elastic Nut M10

233201414

$1.58

39

Lever Indicator

705000081

Unavailable

40

Tuflock Phillips Plastic Screw

414745900

$1.69
