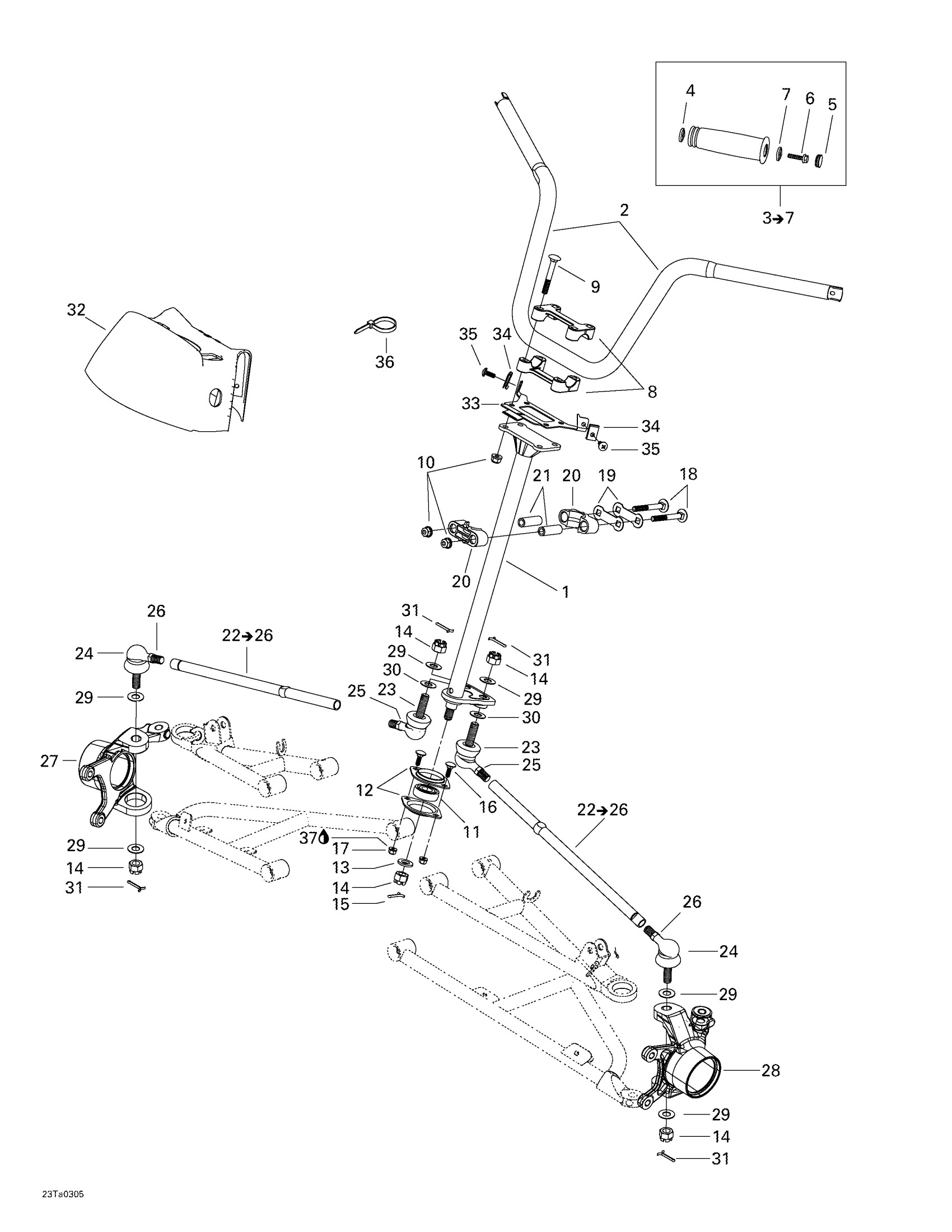

Can-Am Traxter XL, 7565, 2003 07- Steering System Diagram

Main Tube, Black

709400089

Unavailable

Handlebar

709400005

Unavailable

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Black, Cap

277000203

$9.39

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

Flat Washer M6, Stainless

234062600

$0.77

Steering Clamp

709400028

Unavailable

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

Ball Bearing

709400439

$19.49

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

Flat Washer 12 mm

234021410

$0.72

Hex. Castellated Nut M12

232221414

$3.17

Cotter Pin

211400017

$0.33

Carriage Bolt M6 X 25

207762544

$1.69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Carriage Bolt M8 X 70

207787044

$1.37

Stopper Plate

506150600

$4.39

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

Housing Bushing

506150500

$7.99

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

$174.99

RH Ball Joint

709402302

$36.99

LH Ball Joint

709402303

$36.99

Nut Hexagonal RH.

232026414

$1.48

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

Hardened Washer

706200281

$2.85

Washer

503189276

$3.28

Cotter Pin

211400013

$0.37

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

Speednut M6

211100050

Unavailable

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Loctite 243, 10 ml

293800060

$21.49
