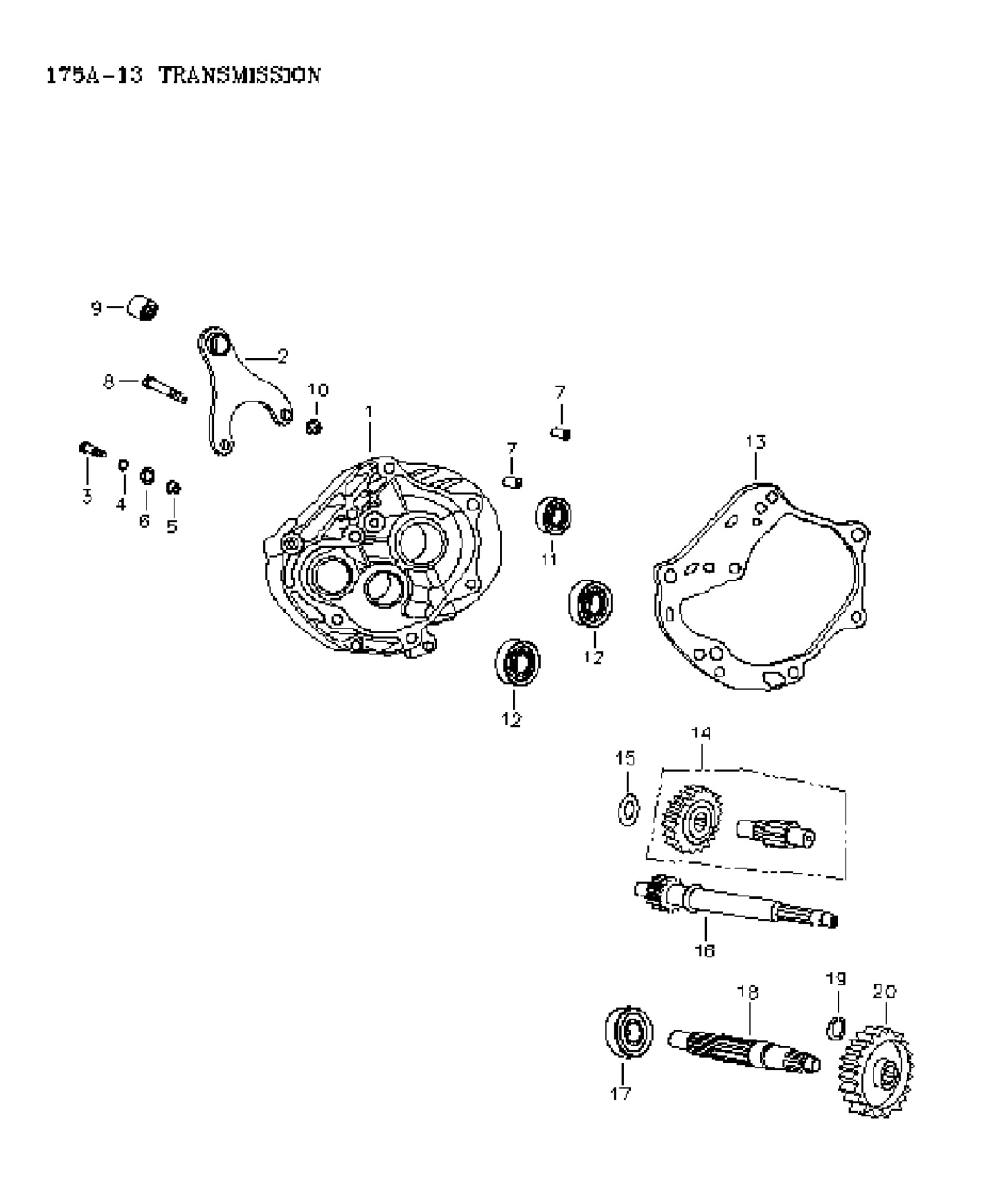

Can-Am Mini DS 90 4-strokes, 2006 05- Transmission Diagram

#

Description
Price

1

COVER - Call your local BRP dealership

A21301175000

Unavailable

2

Bracket

A11202175000

Unavailable

3

Fix Shaft

A45110175000

Unavailable

4

OIL RING - Call your local BRP dealership

A91307101000

Unavailable

5

Hex. Flange Nut M8

233081416

$1.15

6

Washer Plain

A941040816020

$2.68

7

Dowel Pin

A9430110200

Unavailable

8

Fix Shaft

A45111175000

Unavailable

9

RUBBER BUSHING - Call your local BRP dealership

A96400102820

Unavailable

10

Scotch Flange Nut M14

A940521400021

Unavailable

11

RADIAL BALL BEARING, 6004LU - Call your local BRP dealership

A961006004U

Unavailable

12

Radial Ball Bearing, 6201

A9610062010

Unavailable

13

MISSION COVER GASKET - Call your local BRP dealership

A21395133000

Unavailable

14

MAIN SHAFT - Call your local BRP dealership

A23420133000

Unavailable

15

Washer Plain

A941021220013

Unavailable

16

DRIVE SHAFT - Call your local BRP dealership

A23411133000

Unavailable

17

Oil Ring

A9650027427

Unavailable

18

FINAL SHAFT - Call your local BRP dealership

A23431175000

Unavailable

19

External CirClip

A945112000S

$6.67

20

Final Gear

A23432133000

Unavailable
