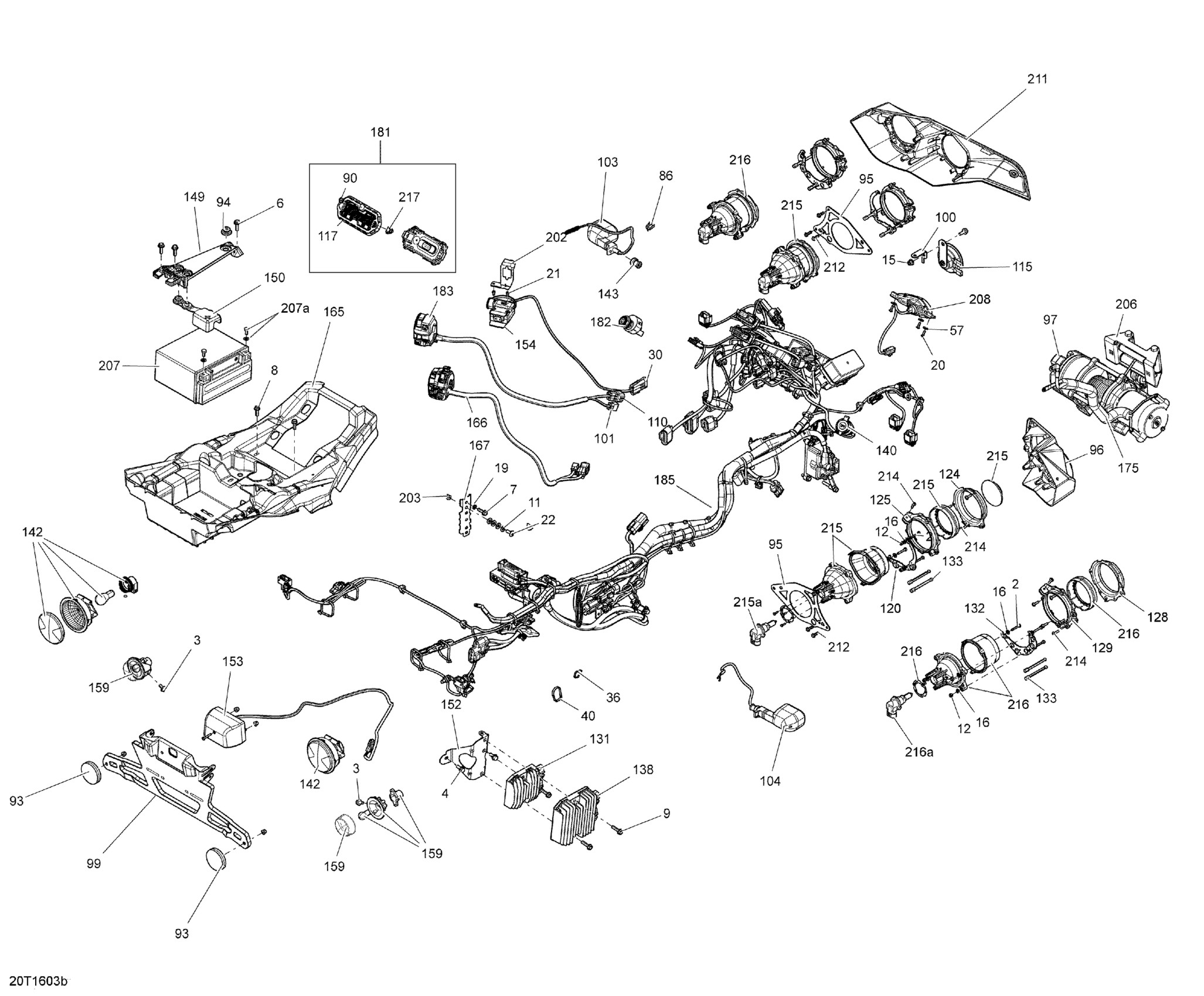

Can-Am Renegade, 2016 10- Electrical System Diagram

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Hex. Screw M4 X 25

207142544

$2.00

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Screw M6 X 20

210262040

$2.11

Hexagonal Head Screw

210262050

$2.11

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.90

Flat Washer

224061121

$0.53

Elastic Stop Nut M4

232541414

$0.58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer M5

234051410

$0.53

Lock Washer Helical M6

234161601

$1.15

External Serrated Lock Washer 6 mm

234461608

$1.15

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Torx Head Screw M6 X 16

250000717

$2.11

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Wire Seal

278000216

$3.19

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Tie-rap 627 mm

293750041

$0.93

Rubber Bumper

293830005

$8.09

Sleeve

293900078

$13.71

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Washer

503175800

$3.28

Spacer

517203200

$16.18

BRP Logo13 mm

704904615

$13.49

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Hook Kit

705014949

$24.99

Red Reflector

705011221

$14.49

Stopper Rubber

705014429

$5.95

Painted Headlamp Support

705004309

$16.99

RH Front Facia

705004509

$51.99

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Plate Support | Europe

708300553

$24.49

SUPPORT - Call your local BRP dealership

709200284

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

Flasher Bulb | Europe Models

710000662

Unavailable

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

Flasher Bulb | Europe Models

710000662

Unavailable

Black, Electronic Key

710000817

$63.49

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

Horn

710004791

$38.99

Clip

710000992

$4.29

Trim Ring Ass'y

710001183

$19.99

Winch Solenoid | XT Models

710001000

$121.99

LH Low Light Support

710001037

$9.09

RH Low Light Support

710001094

$9.09

LH Low Front Housing

710001083

$19.99

RH Low Front Housing

710001081

$19.99

LH Low Rear Housing

710001084

$12.99

RH Low Rear Housing

710001082

$12.99

LH High Front Housing

710001087

$19.99

RH High Front Housing

710001085

$19.99

LH High Rear Housing

710001088

$12.99

RH High Rear Housing

710001086

$12.99

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

LH High Light Support

710001036

$5.29

RH High Light Support

710001115

$5.29

Setting Screw

710001147

$12.71

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

Grey, Electronic Key

710002183

$63.49

Fixation Plate

710002404

$9.39

Battery Cable Cap

710006729

$7.20

Rectifier Support

710002587

$15.99

License Plate Light | Europe

710005563

$126.99

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

Tie-Rap Clip

710002896

$4.39

Flasher | Europe

710002964

$35.99

Housing

710003006

$8.79

Flasher Unit

710003239

$78.49

Protective Tubing

710003260

$33.99

Battery Support

710006561

$50.99

Multi-Function Handle

710004040

$179.99

Connector Bracket

710004118

$5.40

Brake Harness | Includes 1 to FRV2

710004324

$30.99

Connector Ass'y

710004375

$32.99

Positive Cable

710004376

$48.99

Positive Cable

710004377

$27.99

Winch Cables

710004378

$51.99

NEGATIVE HARNESS - Call your local BRP dealership | Package Hunter

710004379

Unavailable

Ground Cable

710004382

$19.99

Speedometer

710005087

$399.99

Ignition Switch

710008400

$78.49

Switch_Ignition | Model-Europe

710007865

$68.99

Multi-Function Handle | Package STD Except Europe Model

710004618

$79.49

Multi-Function Handle | Except Model-Europe

710004617

$83.49

Main Harness

710005005

$949.99

Main Harness Ass'y

710004680

$129.99

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

Domed Nut M6

232361493

$2.11

Fairlead_Roller Kit

715007699

$83.99

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Day Light

710001042

$85.99

Bulb

520000758

$9.10

LH Front Facia

705004508

$51.99

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Light Harness

710005944

$30.99

Phillips Screw K40 X 16

250000723

$0.98

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Button

715900265

$13.71

Torx Truss Screw M8 X 16

250000746

$3.38
