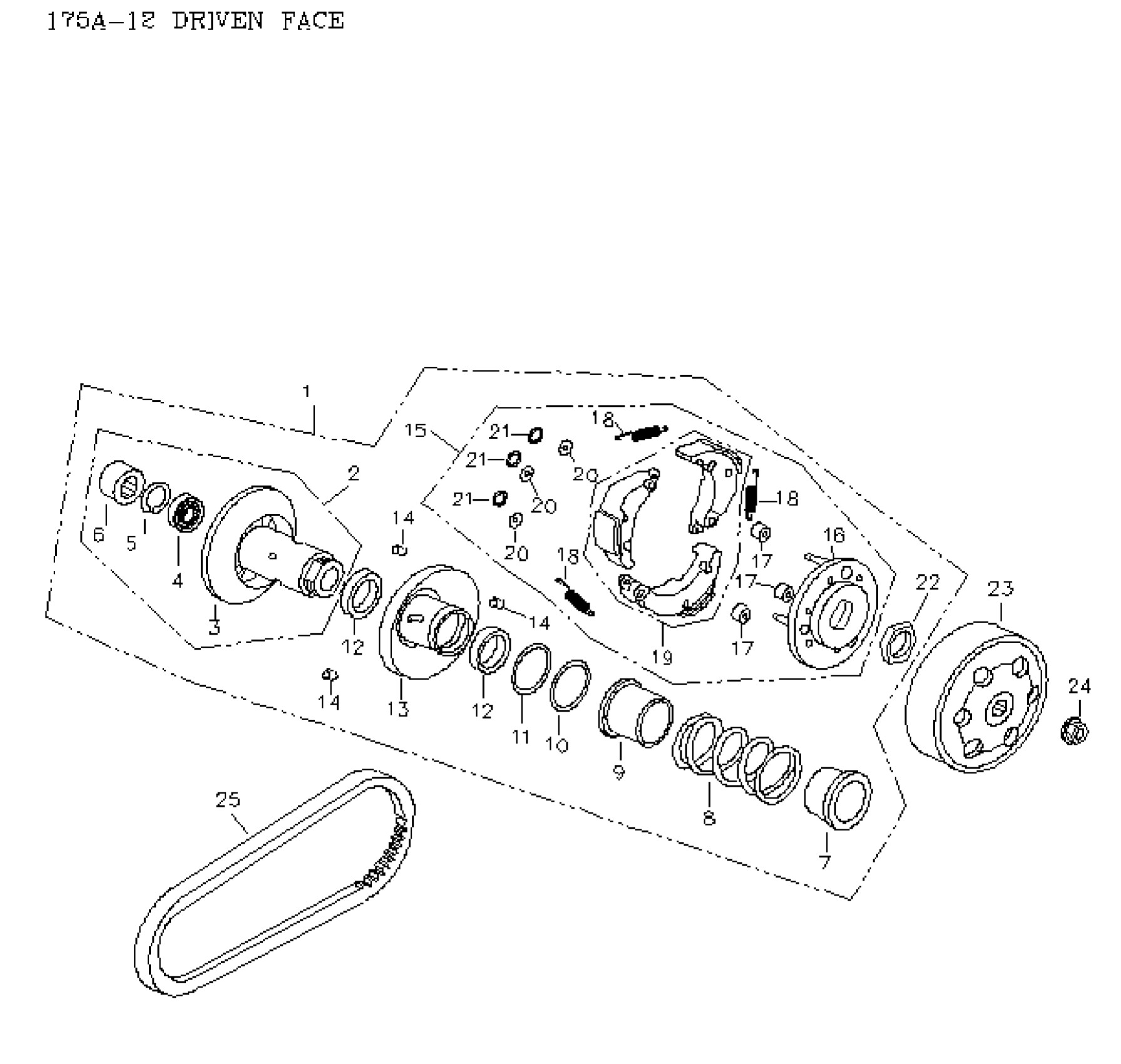

Can-Am Mini DS 90 4-strokes, 2006 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Half-Inner Ass'y

A23200133000

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Radial Ball Bearing, 6901lu

A961006901U

Unavailable

5

Internal Circlip

A945122400R

Unavailable

6

Needle Bearing, hks-17 X 25 X 18

A96200172518

Unavailable

7

SEAT-SPRING - Call your local BRP dealership

A23238133000

Unavailable

8

SPRING-COMPRESSION - Call your local BRP dealership

A23233133000

Unavailable

9

SEAT-SPRING - Call your local BRP dealership

A23237133000

Unavailable

10

Oil Ring

A91336133000

Unavailable

11

Oil Ring

A91339133000

Unavailable

12

Oil Ring

A9650034393

Unavailable

13

Flasque Coulis.*half-outher

A23220133000

Unavailable

14

DOWEL PIN - Call your local BRP dealership

A23225133000

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Plate Comp Drive

A22350133000

Unavailable

17

Rubber Bushing

A22804133000

Unavailable

18

SPRING CLUTCH - Call your local BRP dealership

A22401133000

Unavailable

19

Clutch Weight Set

A22535133000

Unavailable

20

WASHER FLAT - Call your local BRP dealership

A941010612010

Unavailable

21

CIRCLIP EXTERNAL - Call your local BRP dealership

A945110600E

Unavailable

22

Hex. Nut

A90202120000

Unavailable

23

CLUTCH COVER - Call your local BRP dealership

A22100133000

Unavailable

24

HEX.FLANGE NUT WITH SERRATION M10 - Call your local BRP dealership

A9405010000

Unavailable

25

BELT-V - Call your local BRP dealership

A23100133000

Unavailable
