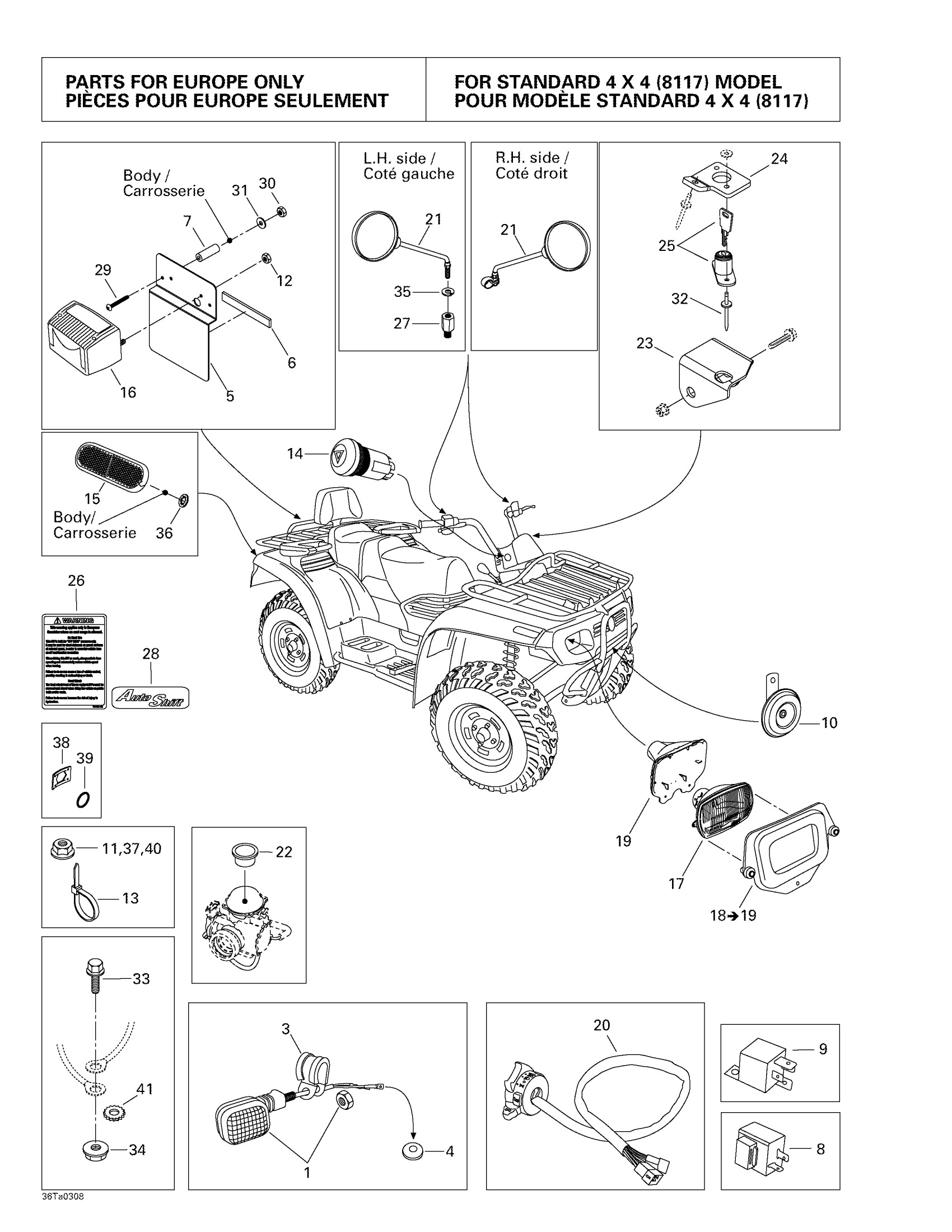

Can-Am Traxter Max, 2003 10- Homologation Kit For Europe Diagram

#

Description
Price

1

Flashing Light

710000360

Unavailable

Flashing Light

710000361

Unavailable

2

Female Terminal (not shown)

710000385

Unavailable

3

Collar

710000362

Unavailable

4

Grommet

414036300

$2.79

5

Tail light support

705000658

Unavailable

6

Gasket, Neoprene 2000Mm Long

219704476

$15.36

7

Spacer

705000659

Unavailable

8

Flasher Unit

710000363

Unavailable

9

RELAY 12 V. - Call your local BRP dealership

710000364

Unavailable

10

Horn

710000365

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

Tie-Rap 180 mm

414115200

$0.11

14

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

15

Reflector

705000660

Unavailable

16

Tail Light

710000368

Unavailable

17

FRONT LIGHT - Call your local BRP dealership

710000369

Unavailable

18

FRONT LIGHT SUPPORT - Call your local BRP dealership | Includes 18 - 19.

705000897

Unavailable

19

Protector

705000023

Unavailable

20

LIGHT/HORN SWITCH - Call your local BRP dealership

710000370

Unavailable

21

Mirror

709400207

Unavailable

22

Power reductor

710000371

Unavailable

23

Bracket

707000286

Unavailable

24

Locking plate

707000287

Unavailable

25

Locking device (with key)

707000288

Unavailable

26

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

704901444

Unavailable

27

MIRROR SUPPORT - Call your local BRP dealership | Europe

705000673

Unavailable

28

Shift Label

704900069

Unavailable

29

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

Flat Washer M5

234051410

$0.53

32

Pop Rivet 3/16"

390402300

$0.75

33

Hex. Flange Screw M6 X 20

207662044

$2.00

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable

36

Push Nut

250100034

$1.29

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Push-nut

250100043

Unavailable

39

O-ring

293300097

Unavailable

40

Hex. Flange Elastic Nut M10

233201414

$1.58

41

Lock Washer Serrated M6

250200041

$1.15
