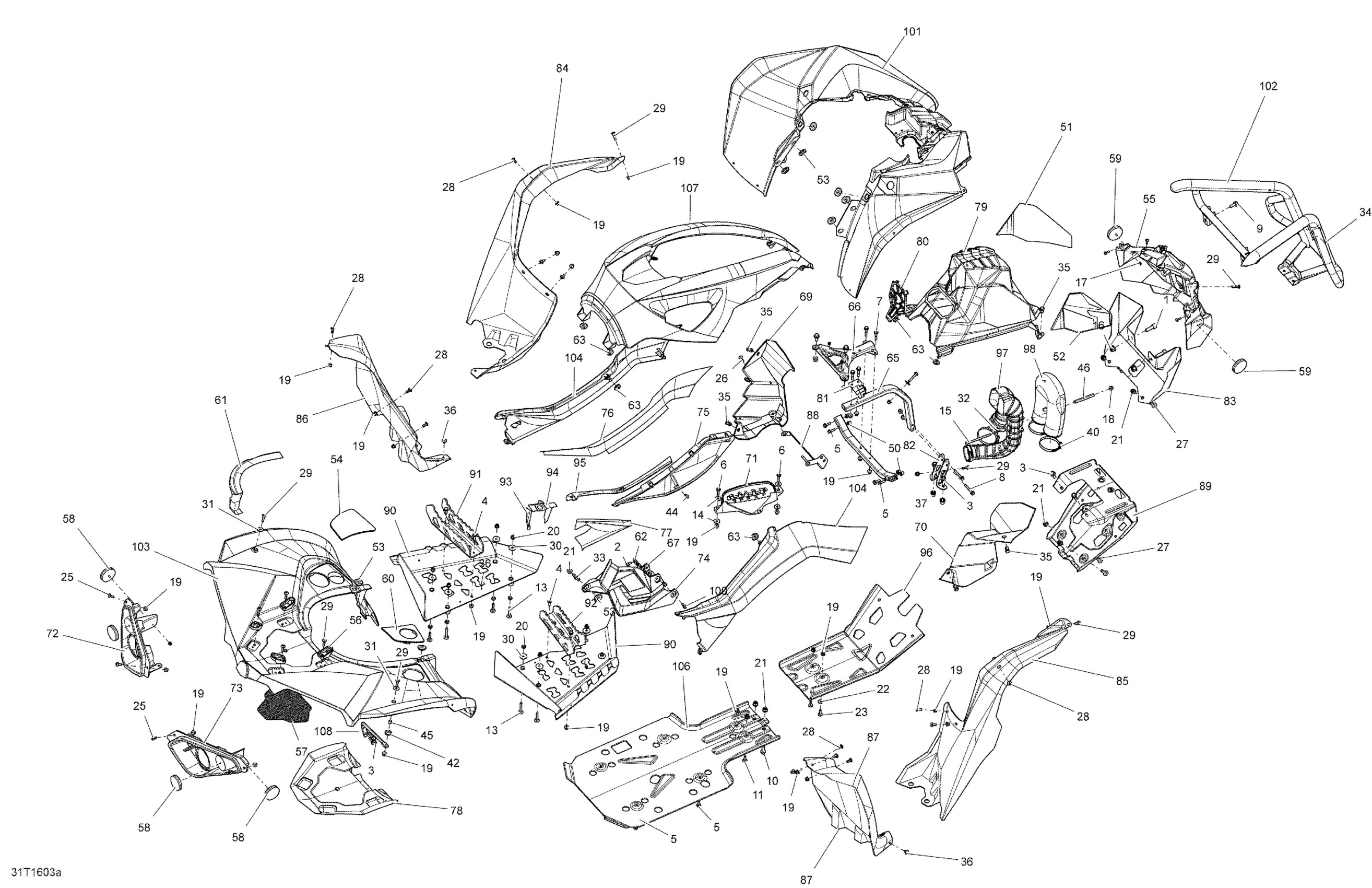

Can-Am Renegade, 2016 09- Body and Accessories - XMR Diagram

#

Description
Price

1

Socket Screw M10 x 30 | XT

205003044

$3.17

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

3

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

4

Hex. Flange Screw M6 X 20

207662034

$2.11

5

Hex. Flange Screw M6 X 20

207662054

$1.01

6

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

7

Hex. Flange Screw M6 X 35

207663544

$0.90

8

Hex. Flange Screw M6 X 45

207664544

$1.46

9

Hex. Flange Screw M8 X 20

207682044

$1.15

10

Hex. Flange Screw M8 X 25

207682534

$2.11

11

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

12

Carriage Bolt M6 X 35

207763554

$2.11

13

Carriage Bolt M6 X 45

207764550

$6.09

14

Flat Washer

224061201

$1.37

15

Hex. Screw M6 X 100

230060060

$7.41

16

Hex. Flange Elastic Nut M10

233201434

$2.09

17

Flange Elastic Nut M5

233251434

$2.00

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Flange Elastic Nut M6

233261434

$4.44

20

Hex. Flange Elastic Nut M6

233261494

$1.58

21

Hex. Flange Elastic Nut M8

233281434

$2.11

22

Stainless Steel Flat Washer

234062670

$2.11

23

Torx Screw M6 X 20

250000712

$2.11

24

Torx Screw K50 X 16

250000720

$1.69

25

Torx Truss Screw M6 X 16

250000721

$1.69

26

Torx Screw M6 X 20

250000722

$1.68

27

Hex Torx Truss M8 X30

250000745

$3.17

28

Torx Screw M6 X 16

250000755

$0.87

29

Torx Screw M6 X 25

250000758

$2.11

30

Washer M6

250200029

$2.50

31

Flat Washer

250200040

$1.90

32

Flat Washer M6

250200115

$3.28

33

Ball Head Stud

250300039

$7.51

34

Plug

293000121

$3.99

35

Tuflok Plastic Rivet

293150230

$1.47

36

Pop Rivet 3/16”

293150092

$3.09

37

Insert Half Hex Body M8 x 1.25

293450307

$2.69

38

Norma Clamp

293650077

$7.41

40

Norma Clamp

293650091

$11.12

42

Grommet

709000582

$4.69

43

Tie Wrap 368 mm

293750008

$1.04

44

Rubber Bumper

293830005

$8.09

45

Bushing

293900105

$7.65

46

Bushing

293900122

$15.99

47

Pop Rivet 3/16"

390402400

$0.35

48

Tie-Rap 180 mm

414115200

$0.11

49

Clip

414479100

$1.90

50

Insert

293450275

$12.99

51

LH HOOD DECAL - Call your local BRP dealership | Model Blue

704905131

Unavailable

51

CAN-AM RED LH HOOD DECAL - Call your local BRP dealership | Model Red

704905568

$49.99

52

RH Hood Decal | Model Blue

704905132

$35.99

52

RH Hood Decal | Model Red

704905569

$53.99

53

Oval Washer

705000321

$5.61

54

LH Rear Body Panel Cap

705017923

$13.99

55

Front Facia

705010673

$73.99

56

Hook

705002342

$16.99

57

Rear Carpet

705002343

$19.49

58

Red Reflector

705011221

$14.49

59

Amber Reflector | Except Europe Model

705011222

$14.49

60

RH Rear Body Panel Cap

705017924

$15.99

61

Reflective Sheet

705002451

$8.89

62

Engine Cover Support

705011461

$10.49

63

Grommet

705003264

$4.09

64

Bent Sectional Tube

705016093

$104.99

65

Front Bent Sectional Tube

705016094

$104.99

66

Bracket

705003599

$24.49

67

Engine Cover Support

705003646

$9.23

68

Oblong Grommet

705003668

$5.79

69

LH INNER FENDER - Call your local BRP dealership

705004307

$12.99

70

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

71

Lever Indicator | 1000

705004416

$17.49

72

LH Rear Facia | North America, International

705004731

$19.99

73

RH Rear Facia | North America, International

705004732

$19.99

74

Engine Cover

705004966

$14.49

75

Panel Extension

705004988

$15.49

76

Reflective Sheet

705005620

$12.99

77

Reflective Sheet | Outlander

705005622

$3.89

78

Reflective Sheet

705005840

$9.39

79

Hood XMR

705009685

$93.99

80

Prefilter Screen

705010922

$20.99

81

Fuse Bracket

705009695

$39.99

82

Support

705009706

$48.99

83

Front Facia

705009707

$119.99

84

Mudguard

705009736

$134.99

85

RH Front Mudguard

705009737

$134.99

86

Mudguard

705009738

$134.99

87

Mudguard

705009739

$134.99

88

LH Bracket Ass'y

705010024

$53.99

89

Skid Plate

705009684

$317.99

90

Deep Black, RH Footrest -SB

705017261

$329.99

90

Deep Black, LH Footrest

705016588

$329.99

91

LH Foot Rest

705010493

$119.99

92

RH Foot Rest

705010499

$119.99

93

Heat Shield

705010557

$10.49

94

Heat Shield

705010558

$10.49

95

Heat Shield

705010559

$8.89

96

Front Skid Plate | Package Hunter

705205019

$179.99

97

Upper Air Inlet

707001779

$85.99

98

Upper Air Outlet

707001782

$54.99

99

Dart Tie Rap 200MM

710003168

$7.09

100

Hex. Flange Screw M6 X 12

210261250

$1.90

101

Black Front Fender | Model North America

715003160

$589.99

101

Black Front Fender | Model International

715003163

$589.99

102

BUMPER F - Call your local BRP dealership | Model Blue

705010097

Unavailable

102

Red Front Bumper | Model Red

705010632

$280.99

103

Black Rear Fender | Model North America

715003171

$469.99

103

Black Rear Fender | Model International

715003173

$469.99

104

Hyper Silver, LH Body Panel

705011990

$294.99

104

Hyper Silver, RH Body Panel

705011991

$309.99

106

Central Skid Plate | Package-XXC

705204031

$174.49

107

Hyper Silver Central Panel | Model North America

715003180

$389.99

107

Hyper Silver Central Panel | Model International

715003182

$319.99

108

LH Fender Support

705010314

$51.99

108

RH Fender Support

705010315

$51.99
