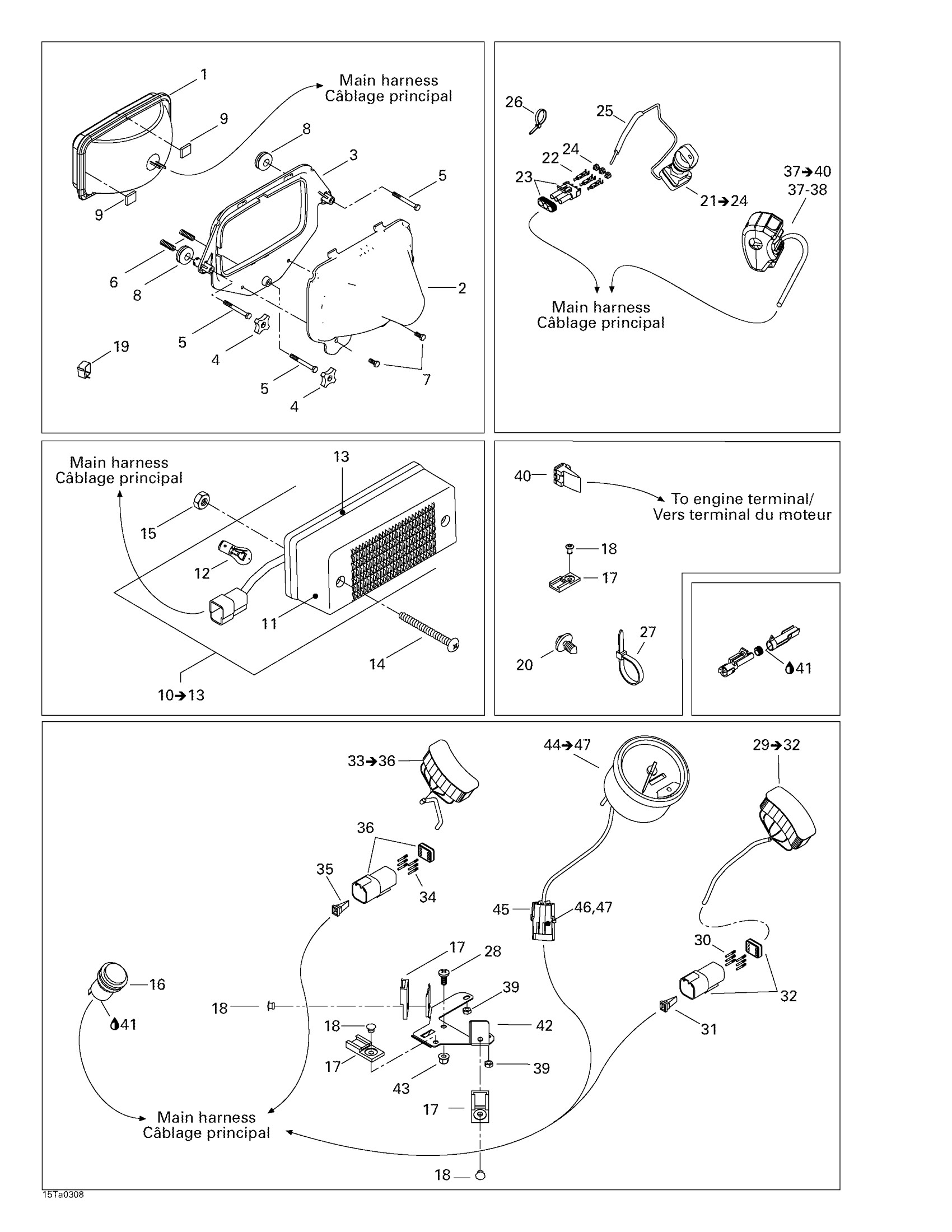

Can-Am Traxter Max, 2003 10- Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Protector

705000023

Unavailable

3

Head Lamp Support

705000474

Unavailable

4

Handle

572106600

$10.33

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

6

Spring

517168600

$7.39

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

8

Grommet

709000582

$4.69

9

Rubber Pad

293830088

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

$9.10

13

GASKET - Call your local BRP dealership

710000129

Unavailable

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Outlet Power Kit, 12 Volts

861507200

$36.99

17

CLIP - Call your local BRP dealership

409014200

Unavailable

17

Clip

270000141

$11.49

18

Pop Rivet 3/16"

390402400

$0.35

19

Clip

414227300

$1.67

20

Mount Dart

293730040

$1.04

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

21

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

21

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

22

Female Terminal

278000223

$3.19

23

Male Housing, 3 Circuits

278000273

$9.59

24

Wire Seal

278000218

$4.39

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

$1.25

27

Tie Wrap 142 mm

293750002

$1.25

27

Tie Wrap 368 mm

293750008

$1.04

28

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

29

RH Warning Lamp | Includes 29 - 32.

710000089

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

31

Male Lock, 6 Circuits

409014600

Unavailable

32

Male Terminal Housing, 6 Circuits

409015200

Unavailable

33

LH Warning Lamp

710000008

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal Housing, 6 Circuits

409015200

Unavailable

37

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

38

BACK COVER - Call your local BRP dealership

710000173

Unavailable

39

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

40

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

41

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

42

Housing Support, Black

710000159

Unavailable

43

Elastic Stop Nut M5

232551414

$0.87

44

Speedometer

710000328

Unavailable

45

Male Terminal Housing (3 Circuits)

278001479

Unavailable

46

Male Terminal | XT Models

278000222

$3.19

47

Wire Seal

278000218

$4.39
