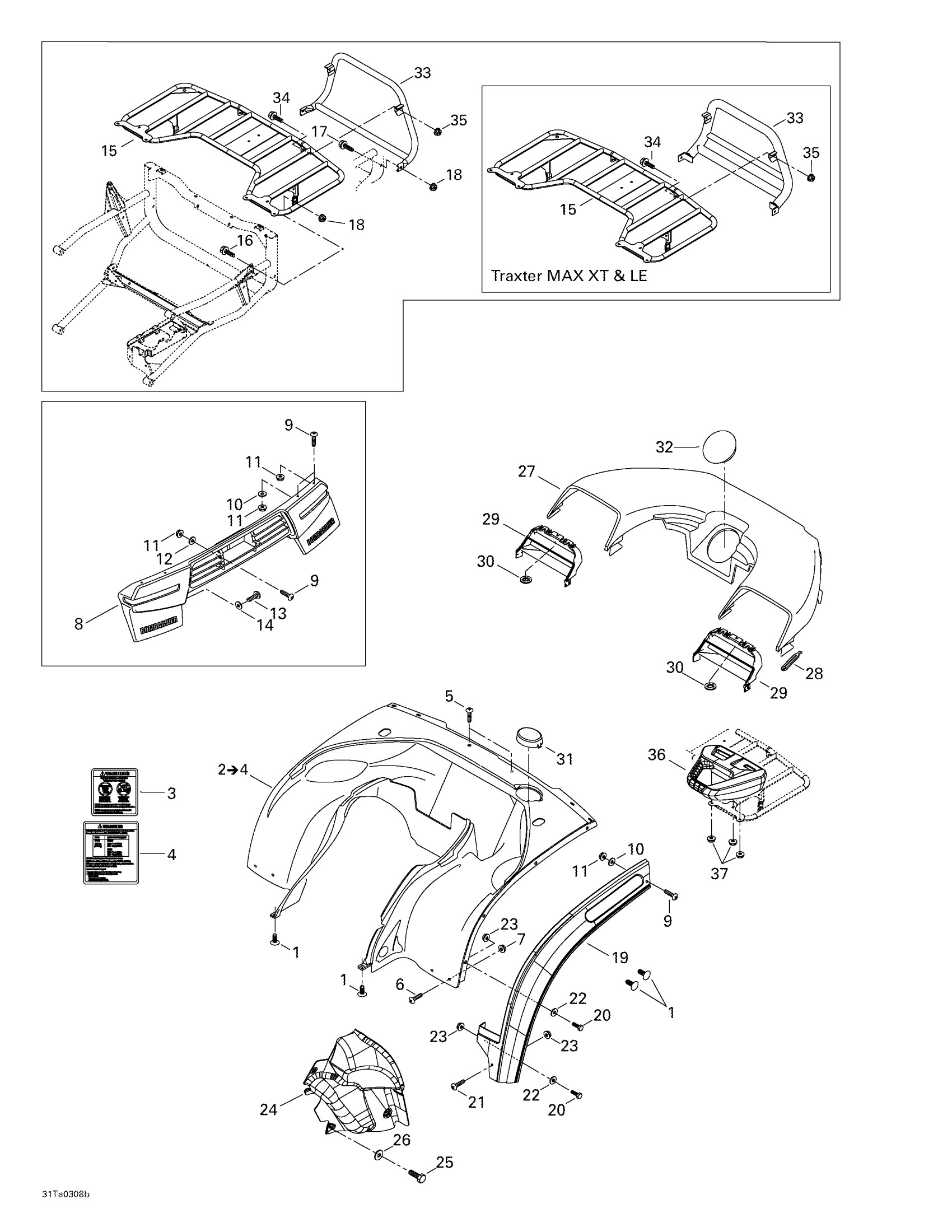

Can-Am Traxter Max, 2003 09- Body And Accessories, Rear View Diagram

#

Description
Price

1

Black, Dart

293730011

$0.99

2

Rear fender kit (Viper red) | Includes 2 - 4.

703500277

Unavailable

3

Warning Label, English | (Passenger under 12 years old)

704900634

Unavailable

4

Warning label english | (Tire pressure)

704900519

Unavailable

5

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

6

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Rear Fascia, Slate Gray

705000709

Unavailable

9

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

10

Flat Washer

224060201

$1.26

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Flat Washer

224060201

$1.26

13

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

14

Flat Washer

224061121

$0.53

15

Luggage Rack, Black

705000674

Unavailable

16

Hex. Flange Screw M8 X 20

207682044

$1.15

17

Hex. Flange Screw M8 X 50

207685044

$1.69

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

LH rear mudguard

705000701

Unavailable

RH rear mudguard

705000702

Unavailable

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

21

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

22

Flat Washer

224060201

$1.26

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

25

Hex. Flange Screw M6 X 16

210261650

$1.67

26

Flat Washer

224061201

$1.37

27

Fender Cover, Viper Red | Red

705000576

Unavailable

28

Windshield Latch

570023800

$4.49

29

LH Grill, Black

705000180

Unavailable

RH Grill, Black

705000181

Unavailable

30

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

31

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

32

CAP - Call your local BRP dealership

705000207

Unavailable

33

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

Rear bumper | XT Quest XT 650.

705000586

Unavailable

34

Hex. Flange Screw M8 X 20

207682046

$1.90

35

Hex. Elastic Flange Nut M8

233281416

$1.48

36

LH Handle

705000703

Unavailable

RH Handle

705000704

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
