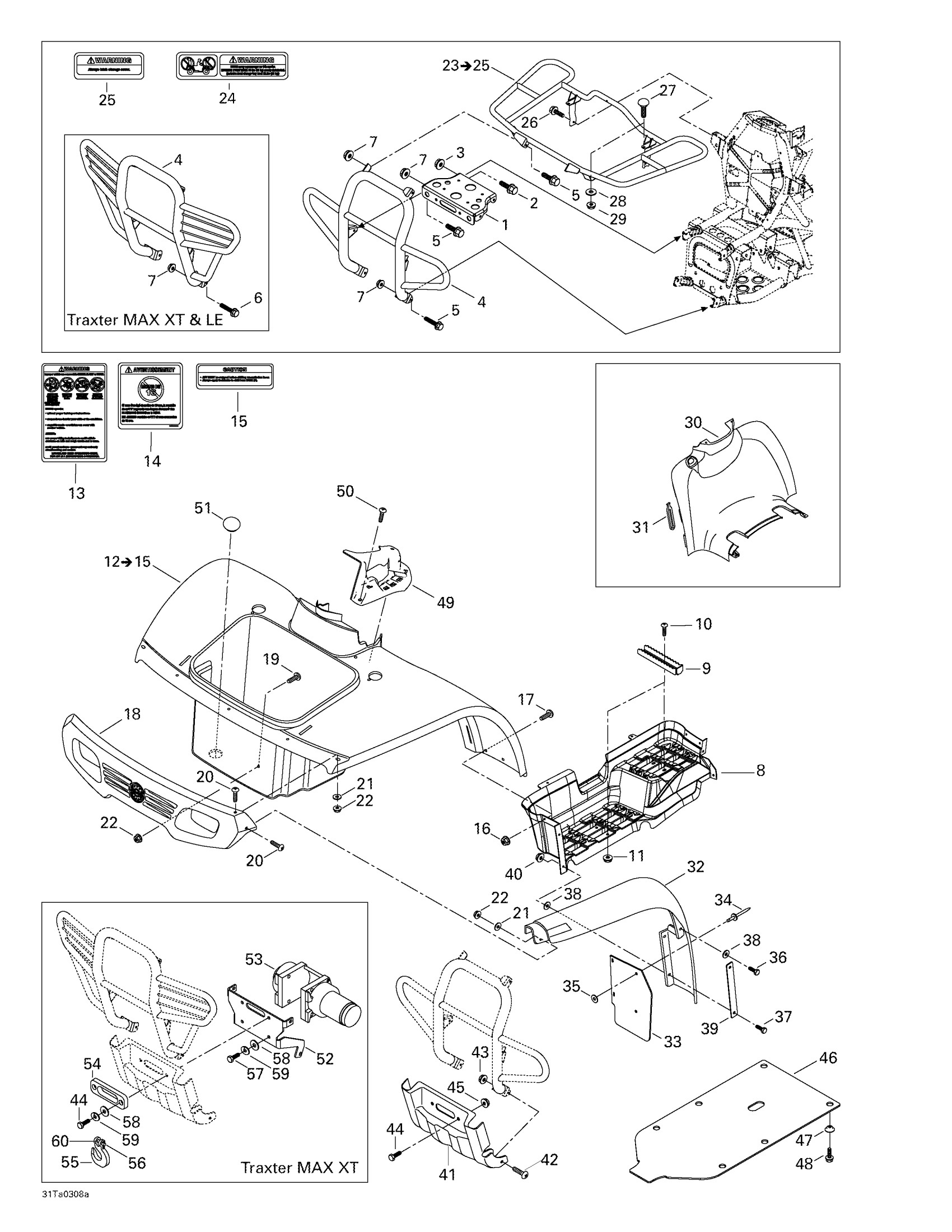

Can-Am Traxter Max, 2003 09- Body And Accessories, Front View Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

RH footrest cover

705000671

Unavailable

LH footrest cover

705000672

Unavailable

9

Footrest, Black

705000631

Unavailable

10

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Front fender kit (Viper red) | Includes 12 - 15. STD & LE

703500276

Unavailable

Front fender kit | XT

703500293

Unavailable

13

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

14

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

15

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

18

Front Fascia, Slate Gray

705000708

Unavailable

19

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

20

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

21

Flat Washer

224060201

$1.26

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Front Luggage Rack, Black

703500264

Unavailable

24

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

25

Warning Label, Tray Cover

704900038

Unavailable

26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

27

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

28

Flat Washer

224060201

$1.26

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Tank Cover, Slate Gray

705000710

Unavailable

31

Windshield Latch

570023800

$4.49

32

LH Front Mudguard

705000711

Unavailable

RH Front Mudguard

705000712

Unavailable

33

Mudguard Extension

705000755

Unavailable

34

Tuflok Plastic Rivet

293150230

$1.47

35

Flat Washer 8 mm

234082410

$1.47

36

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

37

Hex. Screw M6 X 25

207162544

$1.15

38

Flat Washer

224060201

$1.26

39

PLATE - Call your local BRP dealership

705000754

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership

705000713

Unavailable

42

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

44

Hex. Flange Screw M10 X 25

207602544

$1.69

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

45

Hex. Flange Elastic Nut M10

233201414

$1.58

46

Skid Plate

705000675

Unavailable

47

CUP - Call your local BRP dealership

705200533

Unavailable

48

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

49

Lever Indicator

705000081

Unavailable

50

Tuflock Phillips Plastic Screw

414745900

$1.69

51

Rubber Cover

570041600

Unavailable

52

Mouting plate | 7423/7424 (XT-Yellow/Jaune).

705000184

Unavailable

53

WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

705000185

Unavailable

54

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

55

Winch Hook Kit

705014949

$24.99

56

Cotter Pin

250400022

$9.69

57

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

58

Flat Washer 8 mm

234081410

$0.83

59

Lock Washer 8 mm

234181401

$0.92

60

Clevis Pin

250400021

$13.18
